D601J12S215QA

C&K | INSTK | Mini Power Rocker
green-check-icon Total Stock: 81
yellow-timer-icon Factory Lead Time: 63
onlycheckmark RoHs Compliant

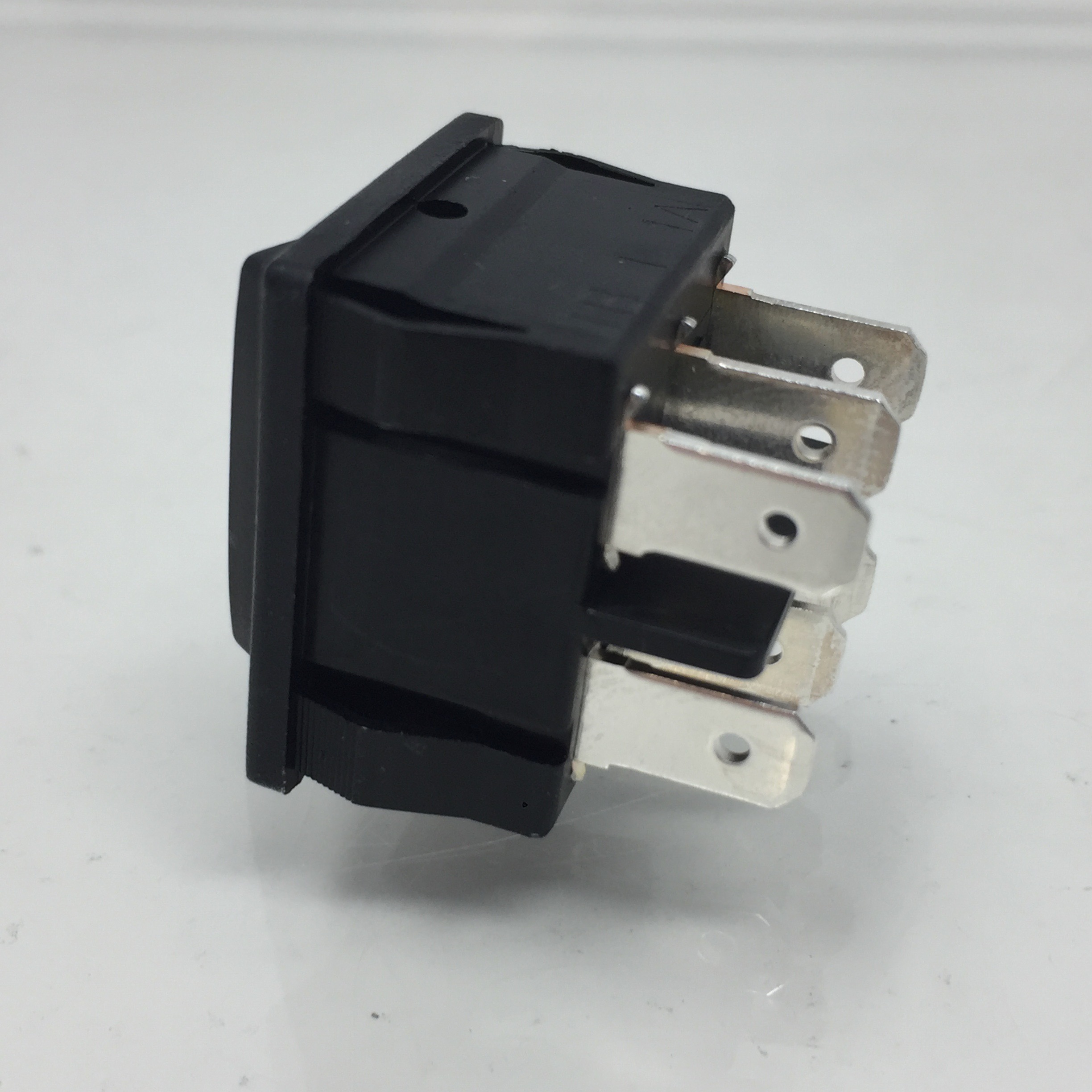

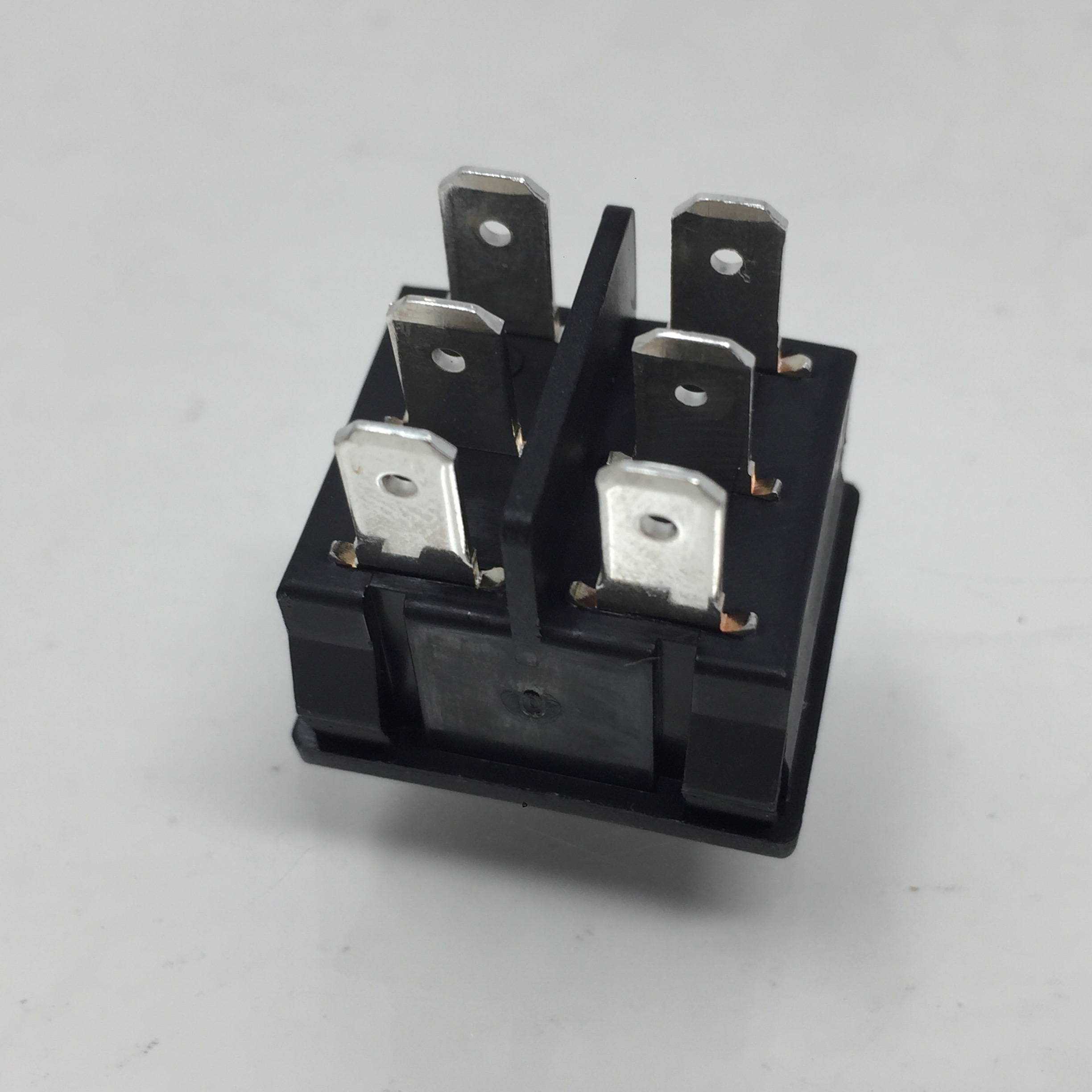

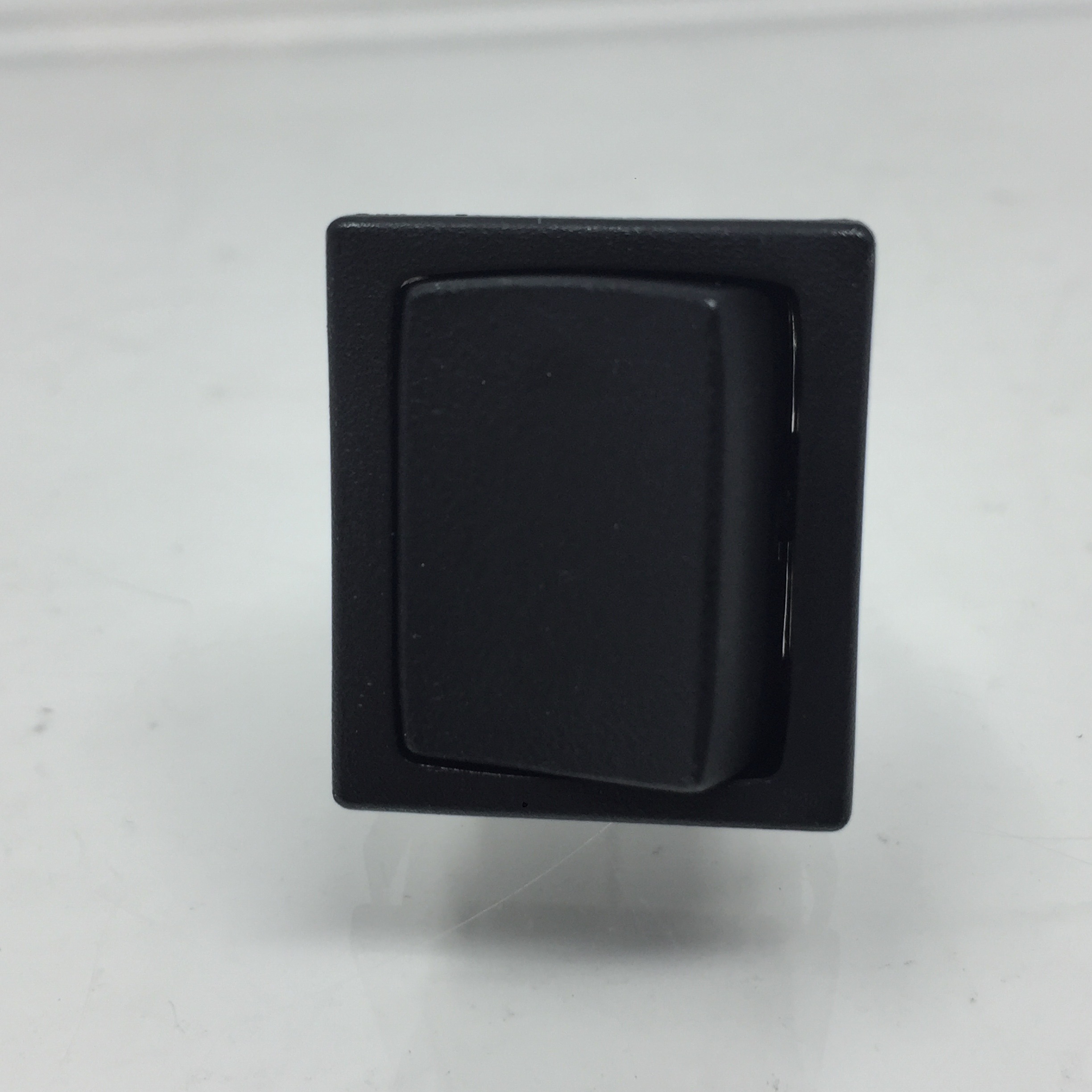

C&K DPDT On-None-ON Power Black Rocker Switch with Quick connect Terminals and Snap-In Black Mounting Actuator Markings ( None ).

$6.00

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 15%

Product Type

Rocker

Lead Time Notes

8 - 10 Weeks

Function

DPDT On-None-ON

Contact Rating (General Purpose)

10A 125VAC 50/60 HZ T85 10,000 Cycles

Contact Rating Resistive

10A 30VDC T85 10,000 Cycles

Actuator

Rocker

Actuator Color

Black

Mounting

Snap-In Black

Terminations

Quick connect

Markings

None

Contact Material

Silver

Color Housing

Black

Material Terminals

Silver over Brass or Copper

Material Stationary Contacts

Silver over Brass or Copper

Material Housing

6/6 nylon (UL 94V-2)

Material Contact Spring

Music Wire or Stainless Steel

Material Actuator

6/6 nylon (UL 94V-2)

Insulation Resistance

10(9) Ohms Min

Housing Finish

Matte

Electrical Life

10,000 Make & Break cycles @ full load

Dielectric Strength

1,000 Vrms min @ sea Level

Operating Temperature

-30C to +65C
