RoHs Compliant
YMProduct Attributes
LEAD-Time Text
22 Weeks

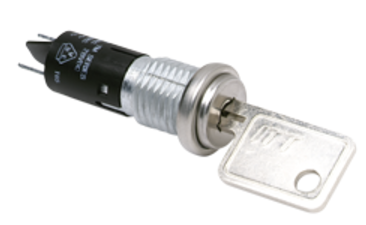

Switch/Lock Function
SPST, 90º Index, keypull pos. 1 & 2
Keying
Two nickel plated brass keys
Lock Type
4 Tumbler, single bitted lock with Detent
Lock Finish
Gloss black facing
Terminals
Quick Connect
Mounting Style
With Nut
Contact Materials
Silver
Series Attributes
Contact Resistance
Below 10 m Ω typ. initial 2-4 V DC, 100 mA.
Dielectric Strength
1,000 Vrms min. @ sea level.
Electrical Life
10,000 make-and-break cycles at full load
Indexing
90 Degrees 2 Pos.
INSULATION RESISTANCE
10(9) Ohm Min.
Material Lock
Zinc alloy with stainless steel facing
Material Switch Housing
6/6 Nylon (UL 94V-2)
Mounting Nut
Brass, bright zinc plated
