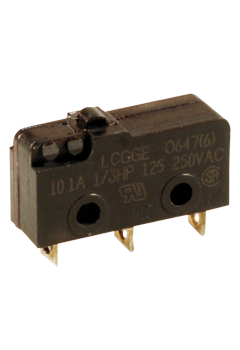

LC Precision Sub-miniature Snap Action

FEATURES AND BENEFITS

Compact design
Long life and high electrical capacity
Quick connect, wire lead or PC mounting
TYPICAL APPLICATIONS

Motorized equipment
Sump pump
Thermostatic controls
SPECIFICATIONS

Contact Rating:
From low level to 10.1 A @ 250 V AC
Electrical Life: 100,000 cycles
Insulation Resistance: 1,000 megohms min.
Dielectric Strength: 1,000 Vrms min. @ sea level
Operating Temperature: –25ºC to 85ºC
Certifications:, UL61058-1,
