23004515-02

Chogori | Middle | Screw
green-check-icon Total Stock: 225
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

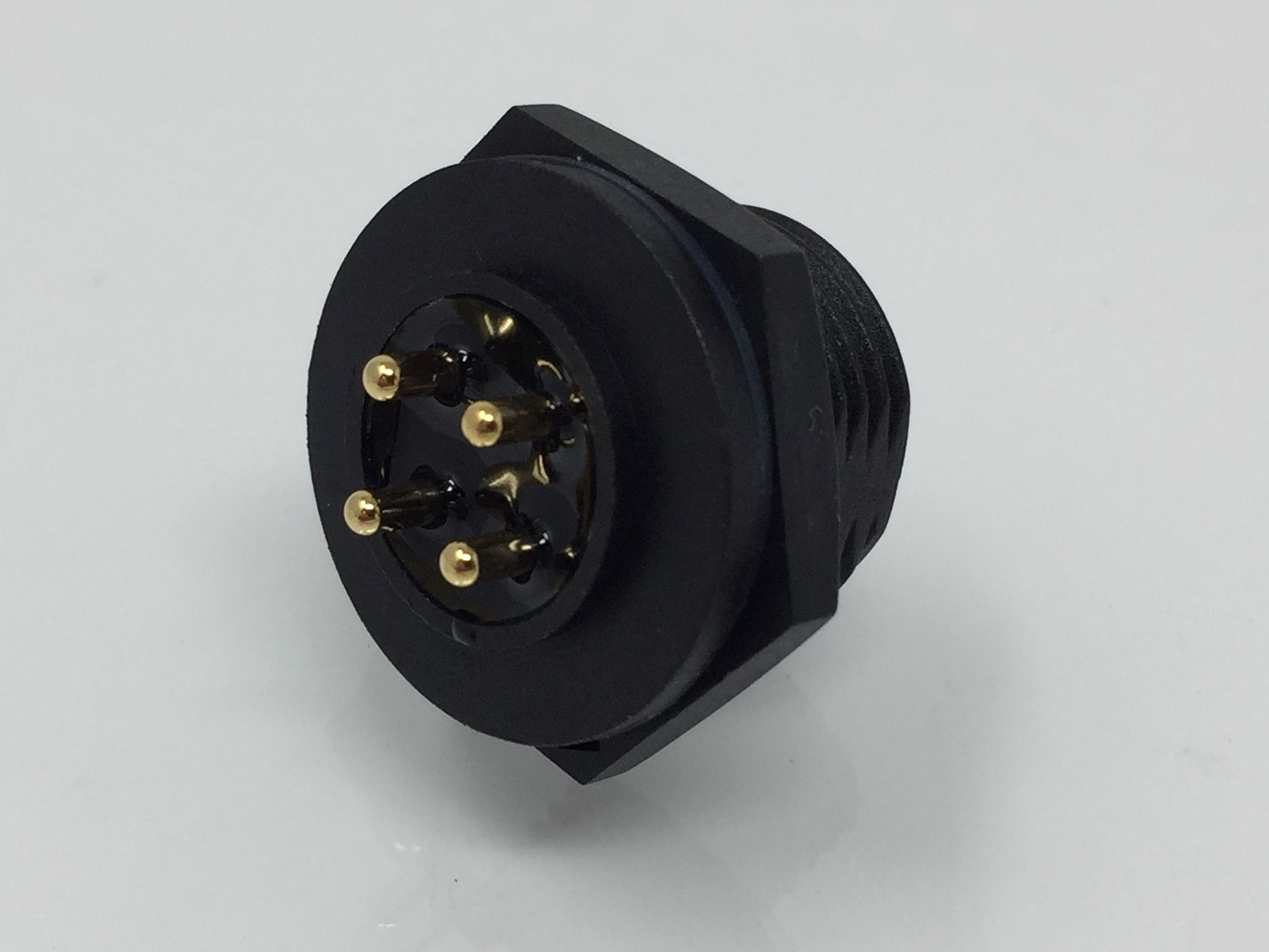

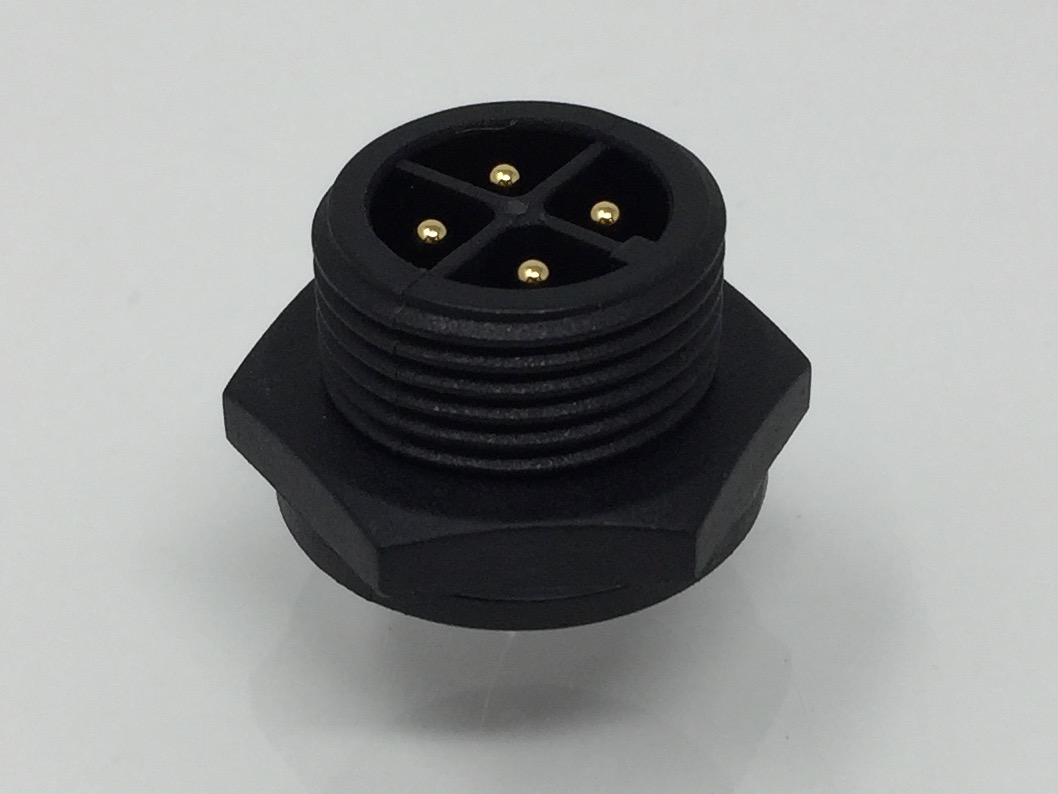

Chogori Middle series 4 pin front PCB panel mount with pin (screw type) Waterproof Connector Part Number: 23004515-02

$11.00

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Screw Type

Poles

4 Poles 15A 300V

Voltage Rating

300V

Total Number of Contacts

4

Rated Curent(40C)

15A

# 15A 300V Contacts

4

Wire Gauge

17 AWG

Configuration Type

Panel Mount, Male Pin

Locking Type

Screw

IP Rating

IP 68

Assembly Method

Panel Mount

Termination Code

Panel-PCB/Field Cable OD (6.5-9.5)

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
