23003411-02

Chogori | Middle | Screw
green-check-icon Total Stock: 150
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

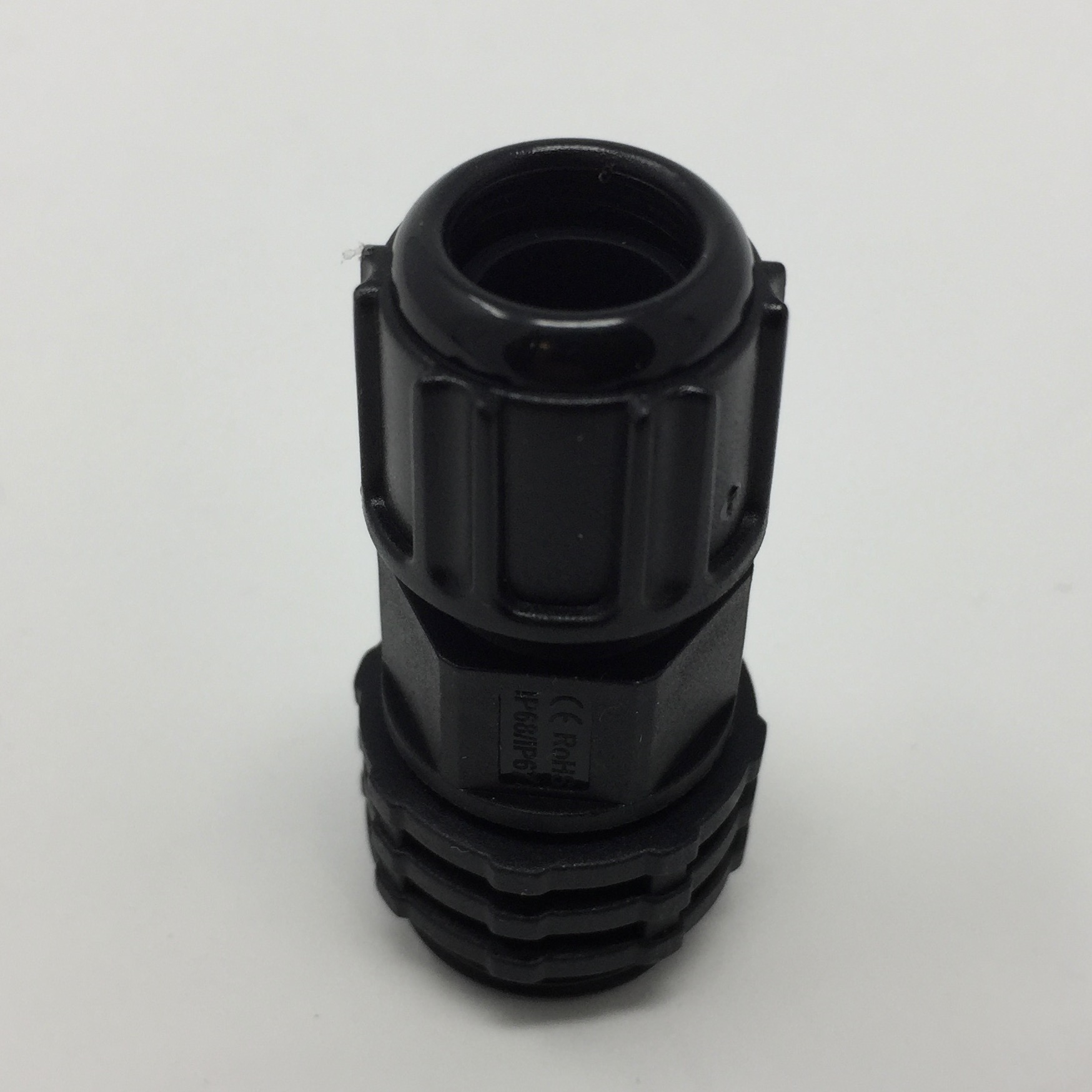

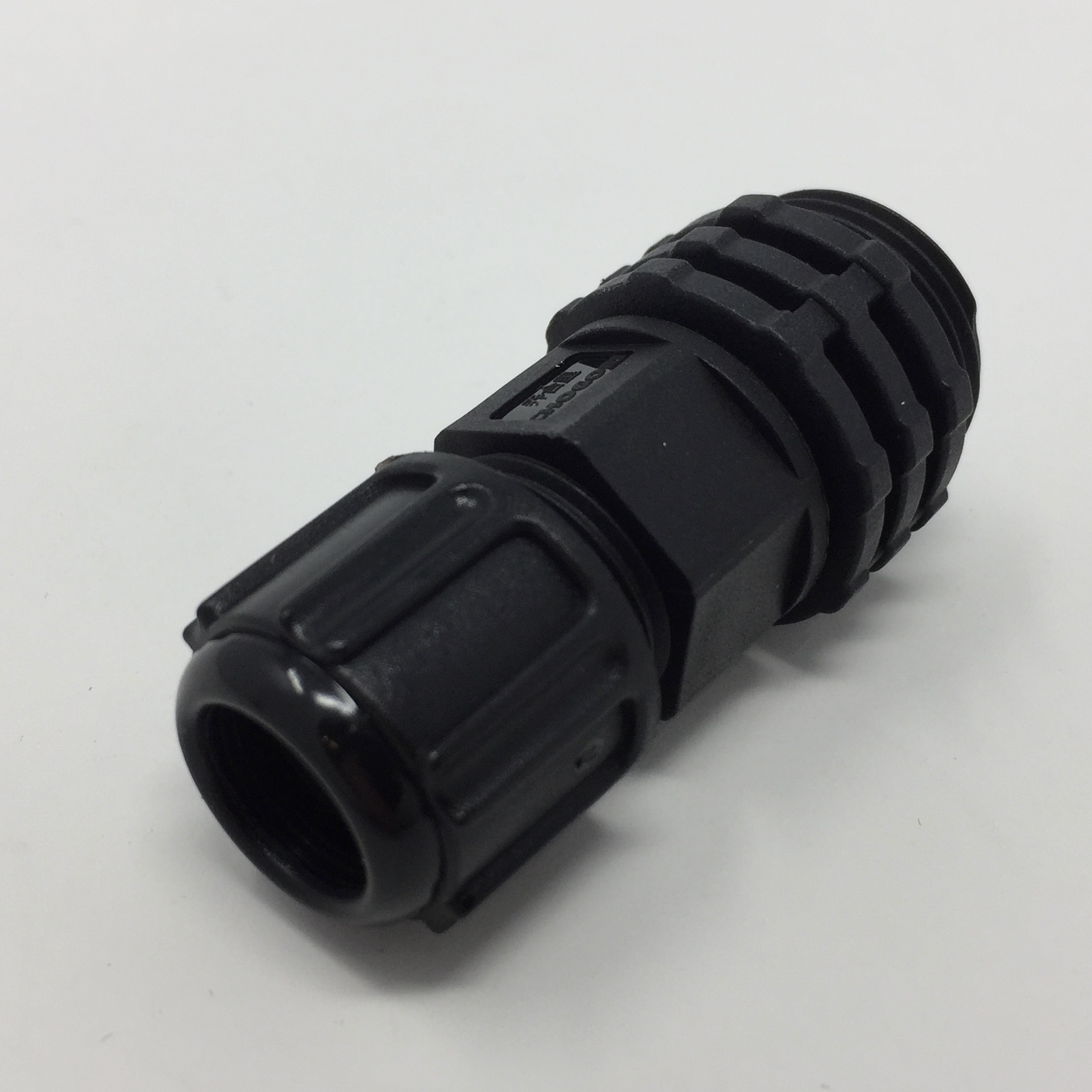

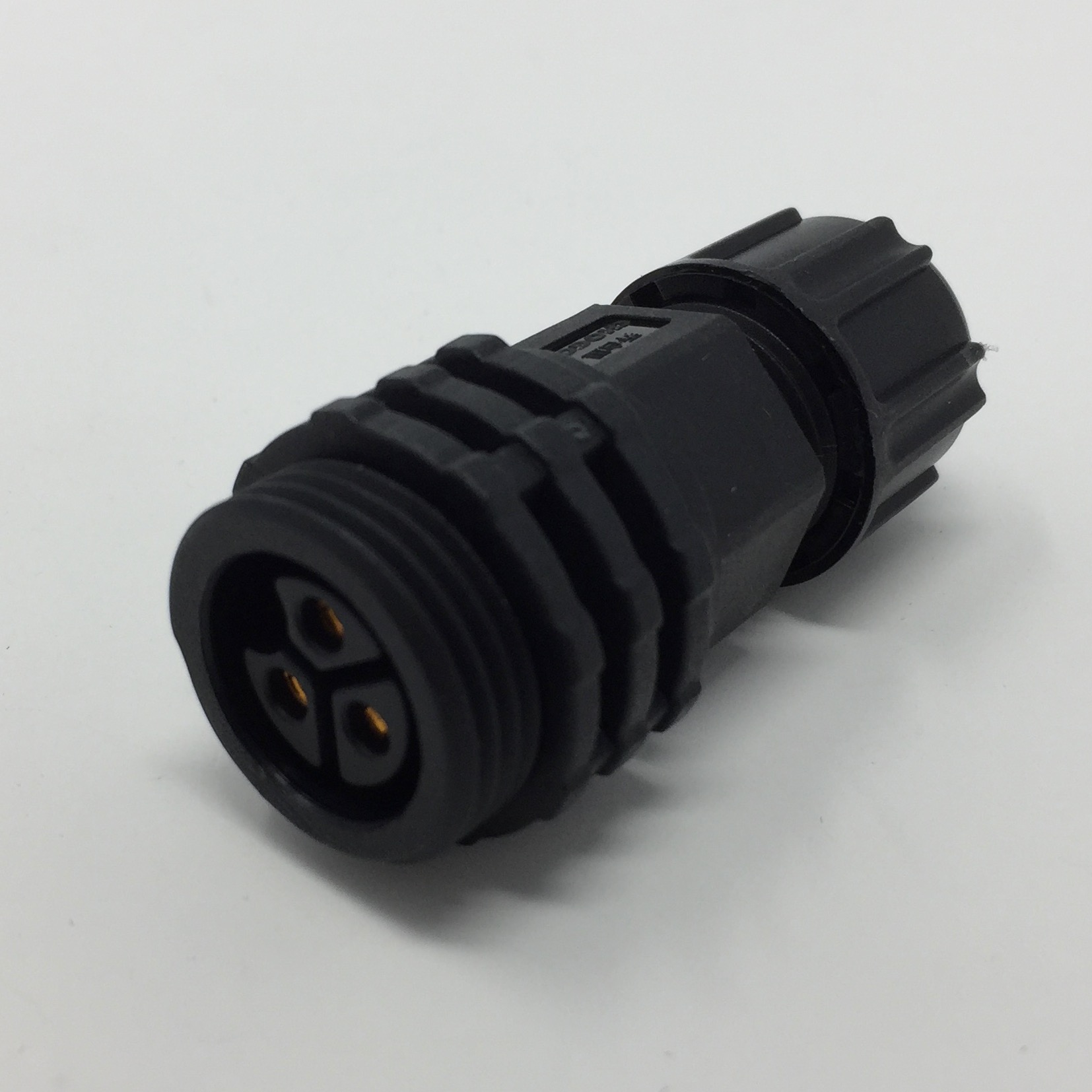

Chogori Middle series 3 pin female plug with socket field installable (screw type) Waterproof Connector Part Number: 23003411-02

$19.20

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Screw Type

Poles

3 Poles 20A 300V

Voltage Rating

300V

Total Number of Contacts

3

Rated Curent(40C)

20A

# 20A 300V Contacts

3

Wire Gauge

14 AWG

Configuration Type

Female Connector, Female Pin

Locking Type

Screw

IP Rating

IP 68

Assembly Method

Installable 180

Termination Code

Panel-PCB/Field Cable OD (6.5-9.5)

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
