23305635-01

Chogori | Middle | Pushlock
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

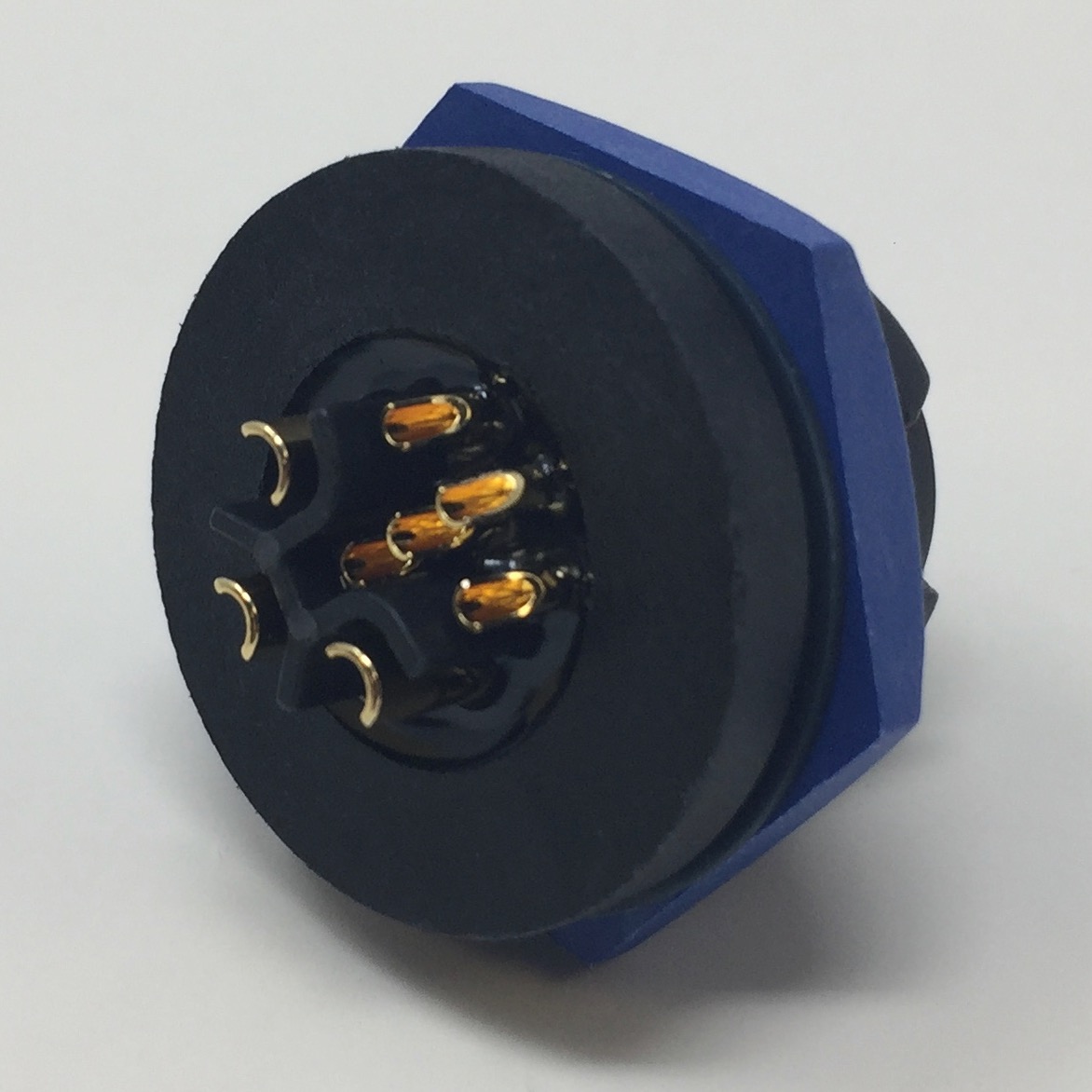

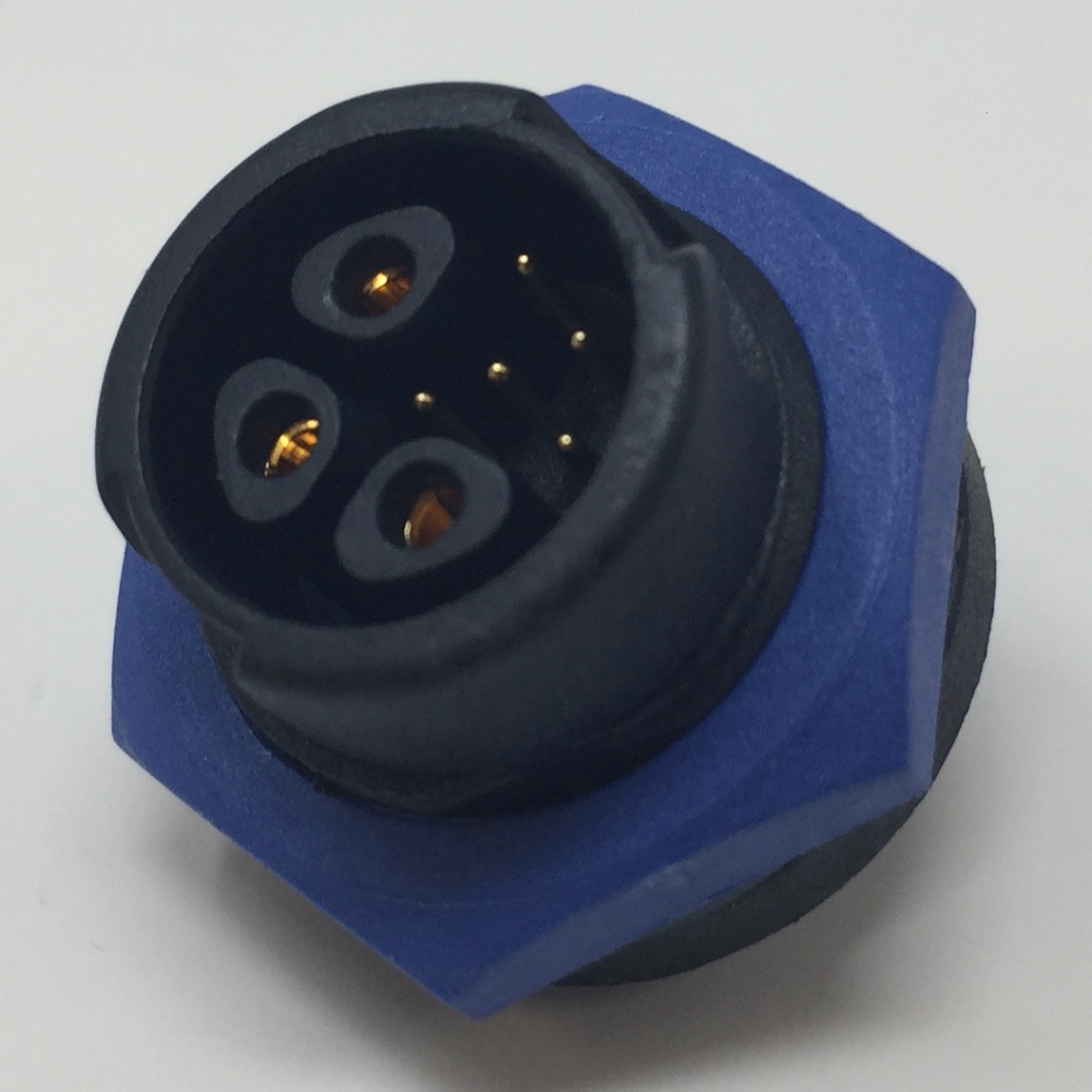

Chogori Middle series 3 socket+5 pin front panel mount with socket (push lock) Waterproof Connector Part Number: 23305635-01

$22.60

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Push

Poles

3 Poles 15A 125V & 5 Poles 2A 30V

Voltage Rating

125V & 30V

Total Number of Contacts

8

Rated Curent(40C)

15A & 2A

# 15A 300V Contacts

3

# 2A 30V Contacts

5

Wire Gauge

17 & 22 AWG

Configuration Type

Panel Mount, Female Pin

Locking Type

Push Lock

IP Rating

IP 67

Assembly Method

Panel Mount

Termination Code

Panel-Solder/Field Cable OD (3.5-6.5)

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
