23012131-02

Chogori | Middle | Pushlock
green-check-icon Total Stock: 90
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

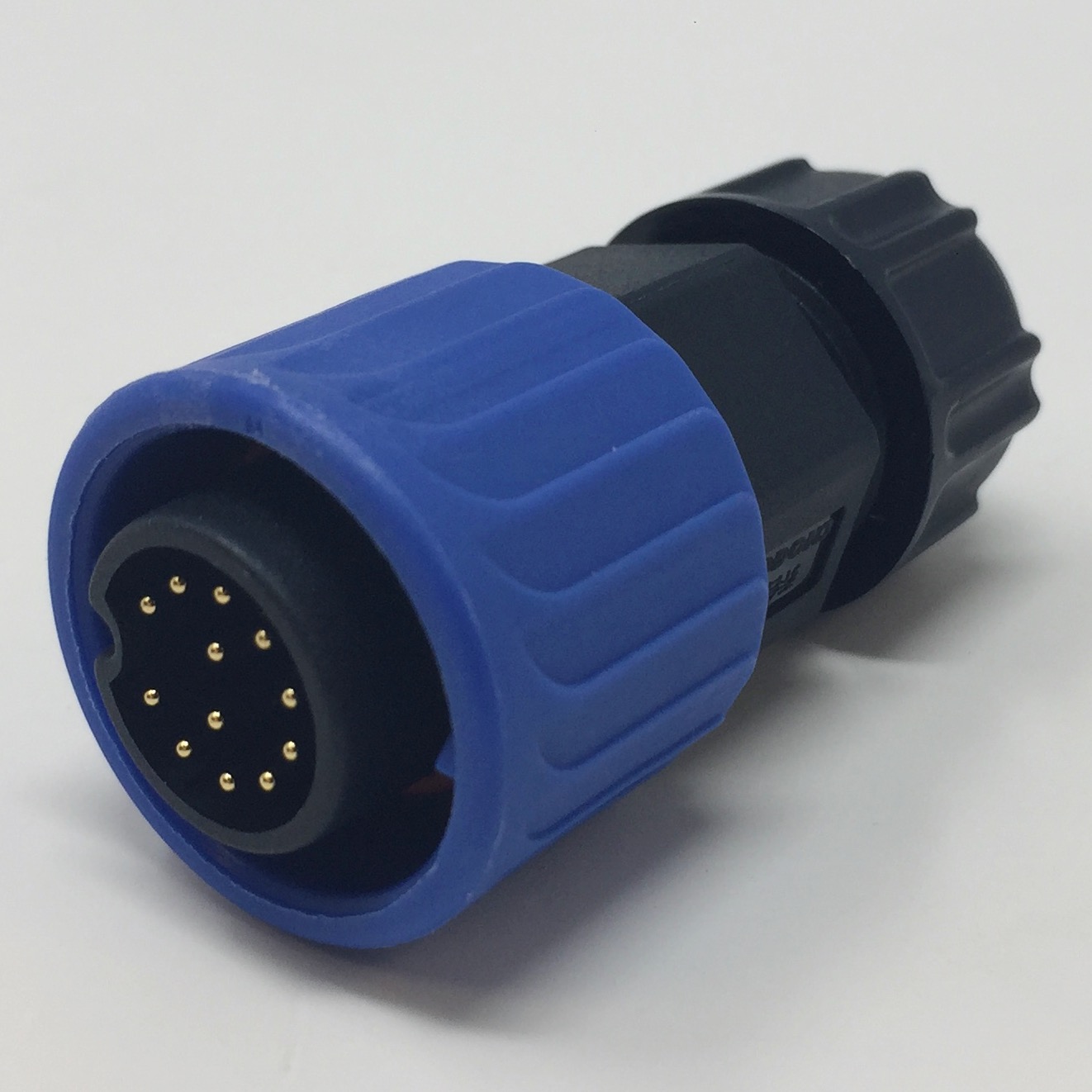

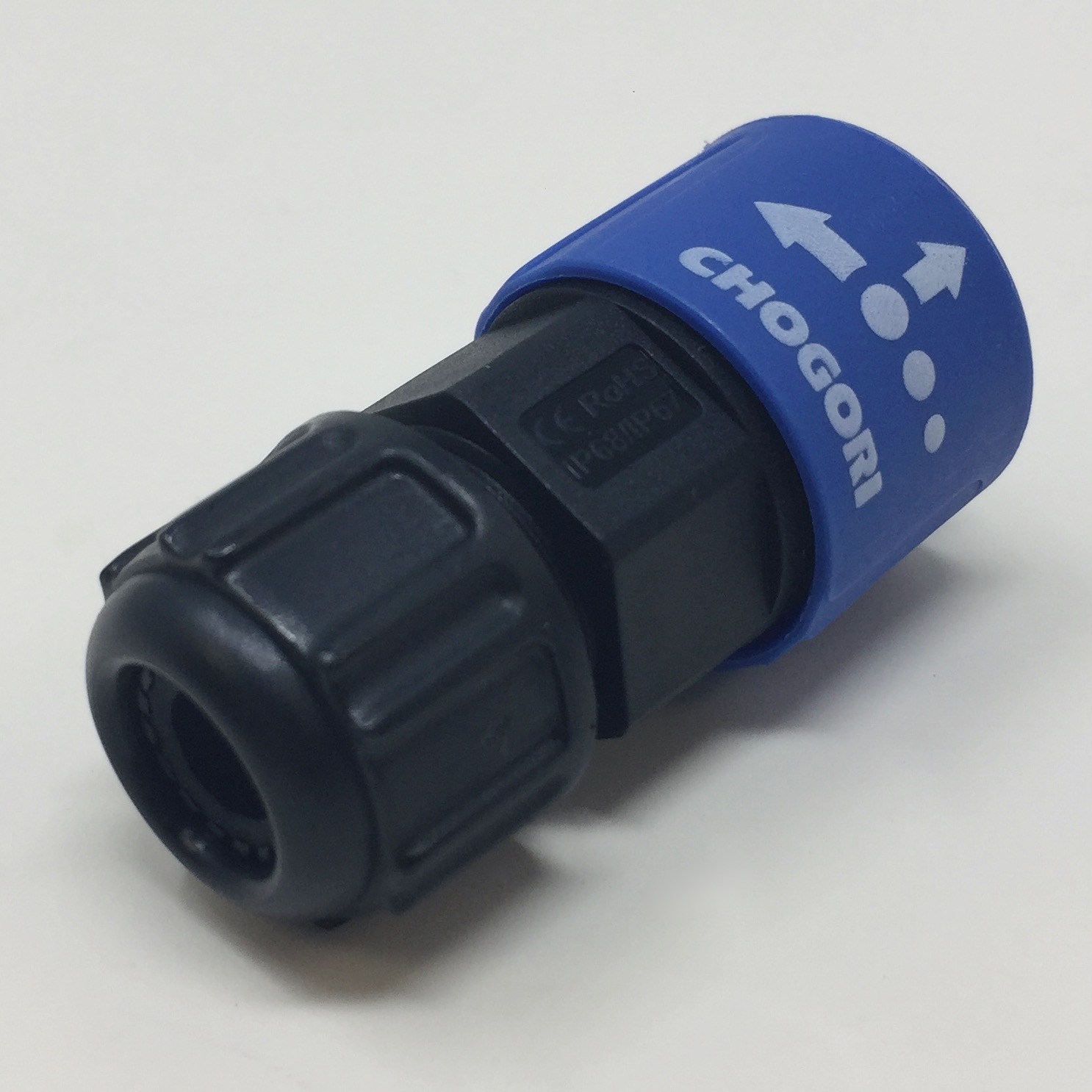

Chogori Middle series 12 pin male plug with pin field installable (push lock) Waterproof Connector Part Number: 23012131-02

$24.00

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Push

Poles

12 Poles 2A 30V

Voltage Rating

30V

Total Number of Contacts

12

Rated Curent(40C)

2A

# 2A 30V Contacts

12

Wire Gauge

24 AWG

Configuration Type

Male Connector, Male Pin

Locking Type

Push Lock

IP Rating

IP 67

Assembly Method

Installable 180

Termination Code

Panel-PCB/Field Cable OD (6.5-9.5)

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
