24309525-01

Chogori | Large | Bayonet
green-check-icon Total Stock: 42
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

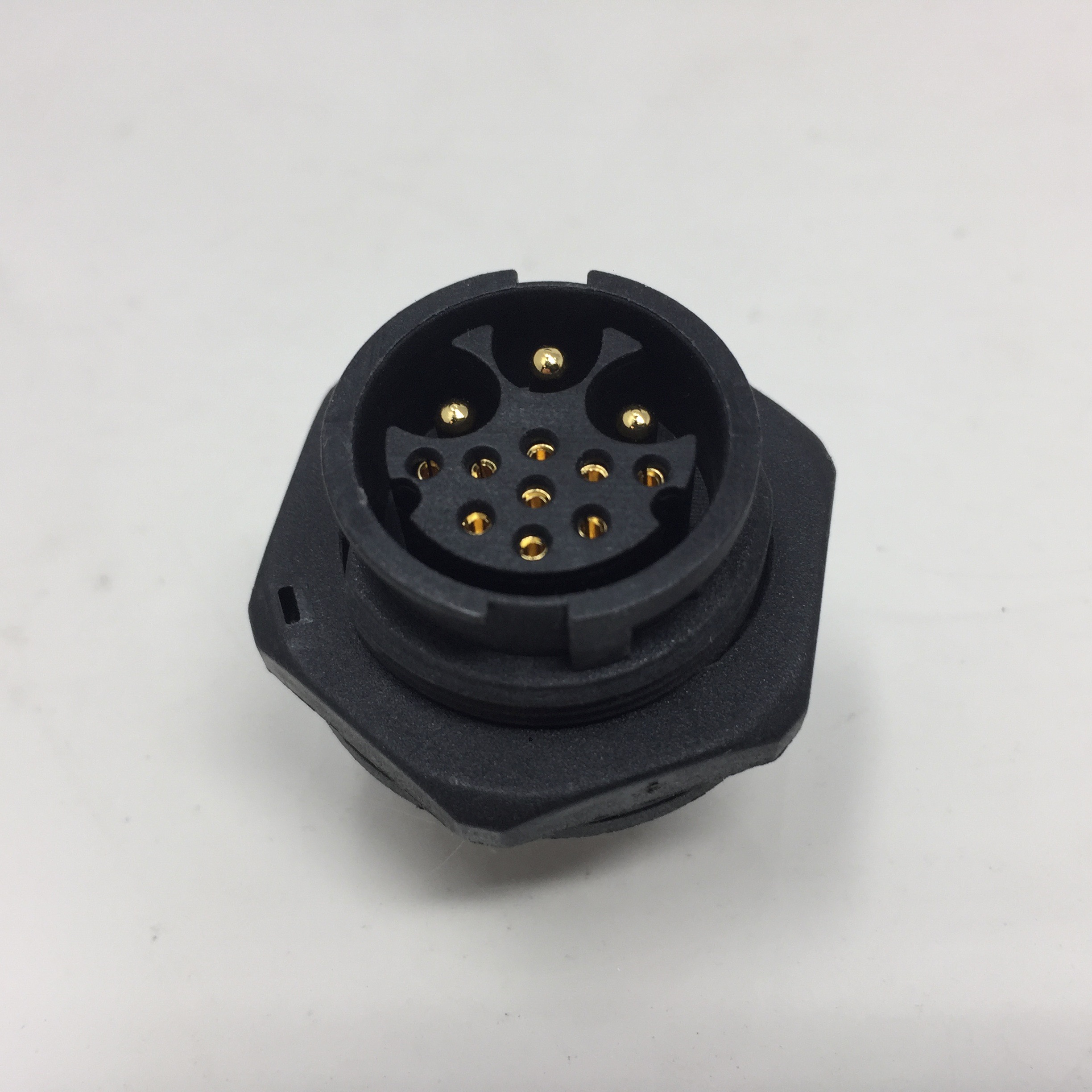

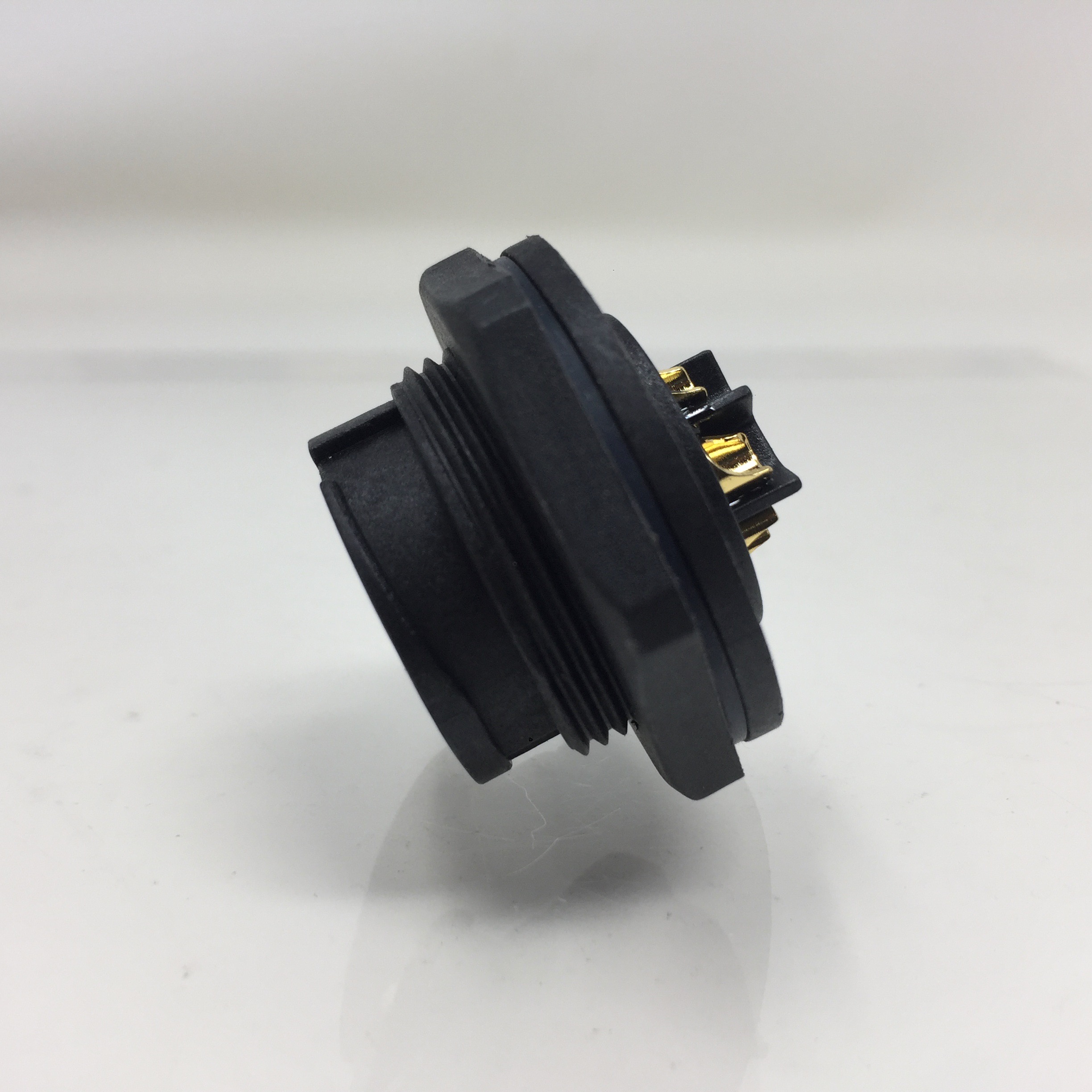

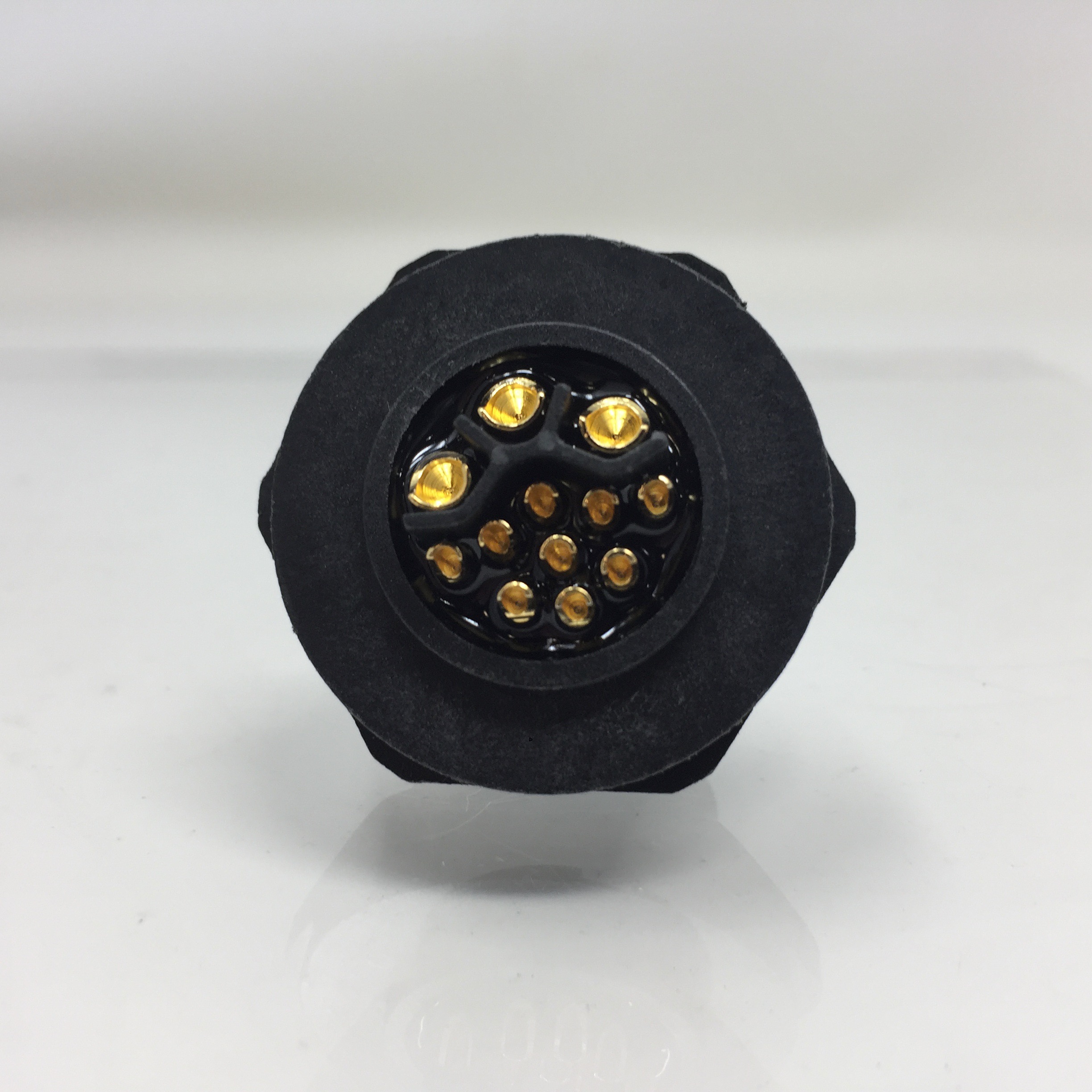

Chogori Large series 3 pin+9 socket front panel mount(lock bayonet) Waterproof Connector Part Number: 24309525-01

$25.60

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Bayonet

Poles

3 Poles 20A 300V & 9 Poles 5A

Voltage Rating

300V

Total Number of Contacts

12

Rated Curent(40C)

20A & 5A

# 20A 300V Contacts

3

# 5A 125V Contacts

9

Wire Gauge

12AWG / 24AWG

Configuration Type

Panel Mount, Male Pin

Locking Type

Lock Bayonet

IP Rating

IP67

Assembly Method

Panel Mount

Termination Code

Std

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
