24002625-01

Chogori | Large | Bayonet
green-check-icon Total Stock: 50
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

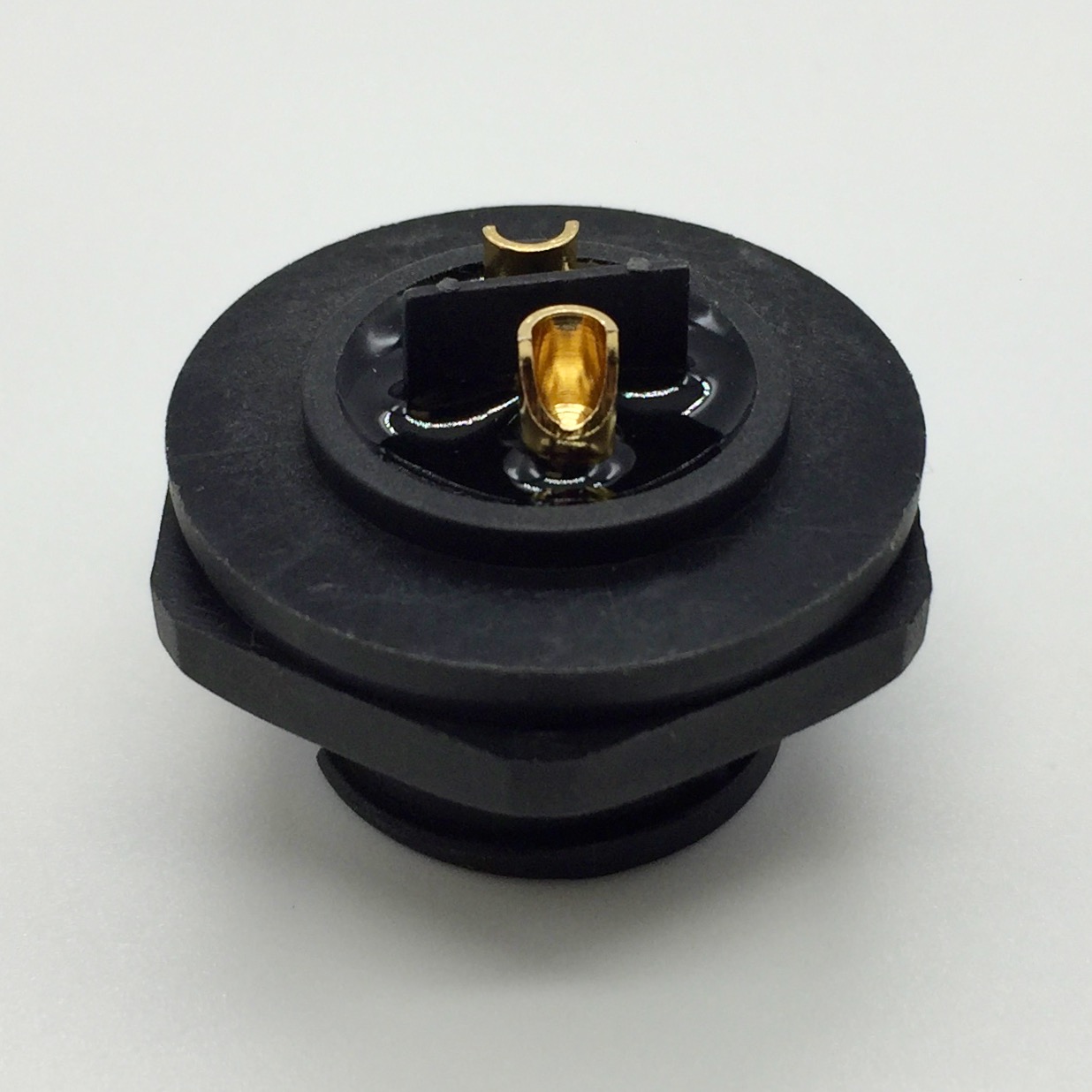

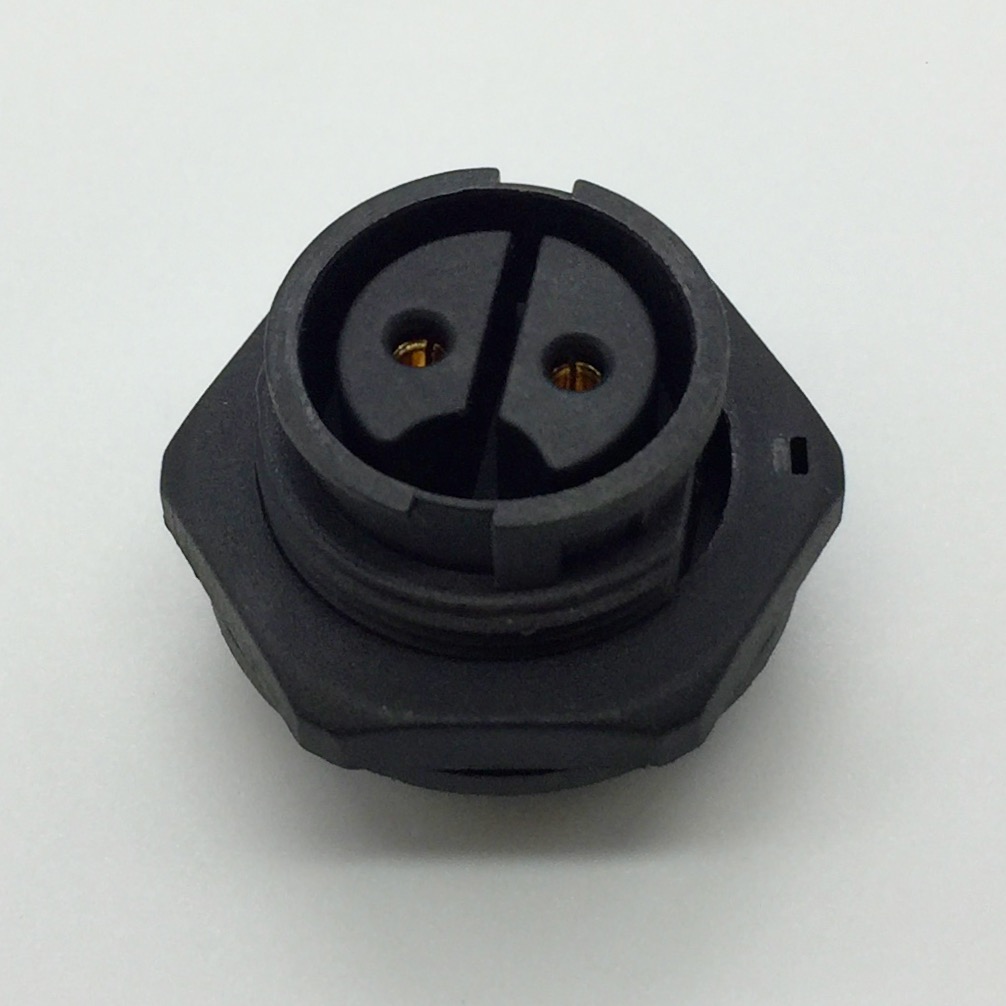

Chogori Large series 2 pin front panel mount with socket (lock bayonet) Waterproof Connector Part Number: 24002625-01

$13.80

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Bayonet

Poles

2 Poles 20A 300V

Voltage Rating

300V

Total Number of Contacts

2

Rated Curent(40C)

20A

# 20A 300V Contacts

2

Wire Gauge

12AWG

Configuration Type

Panel Mount, Female Pin

Locking Type

Lock Bayonet

IP Rating

IP67

Assembly Method

Panel Mount

Termination Code

Std

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
