24002121-01

Chogori | Large | Bayonet
green-check-icon Total Stock: 101
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

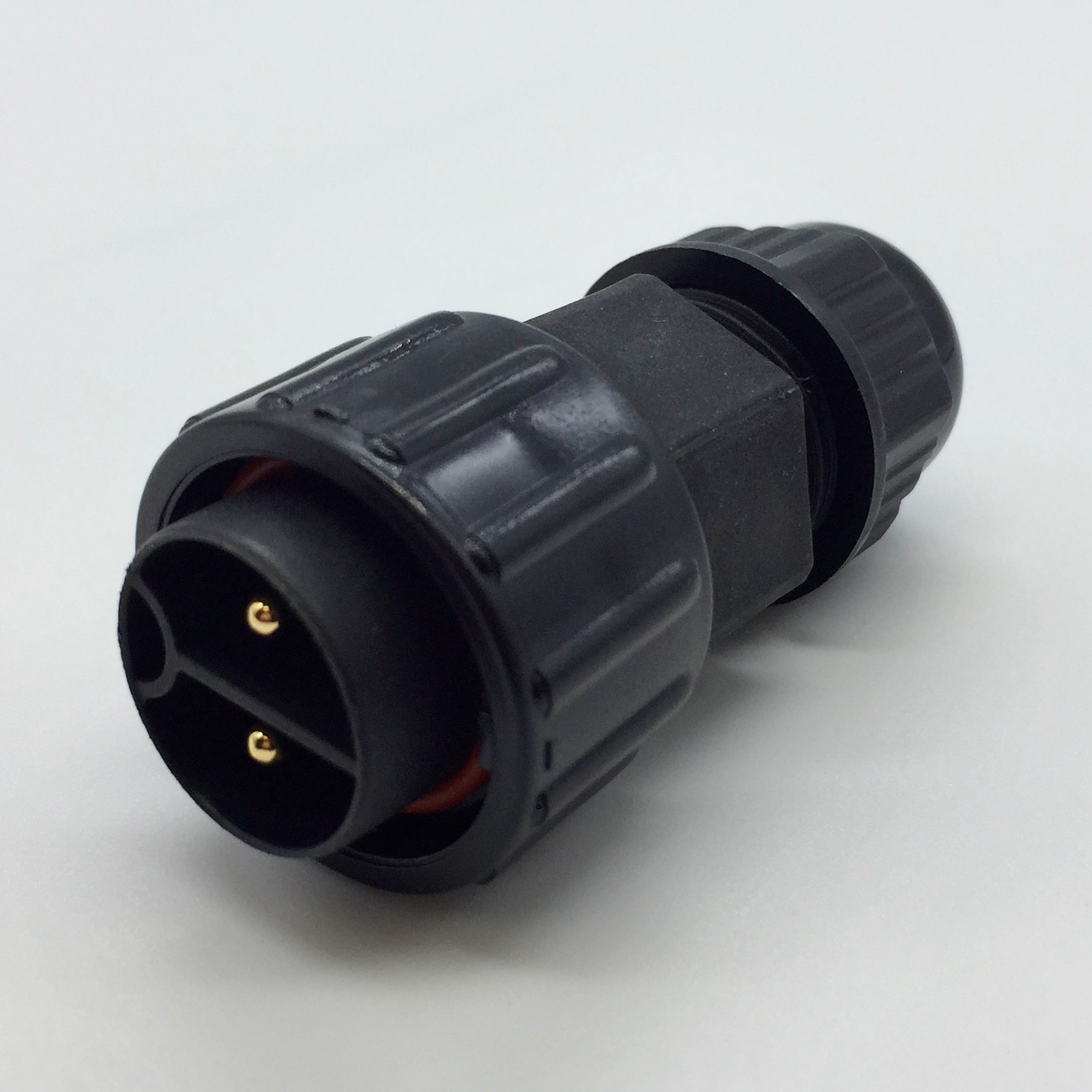

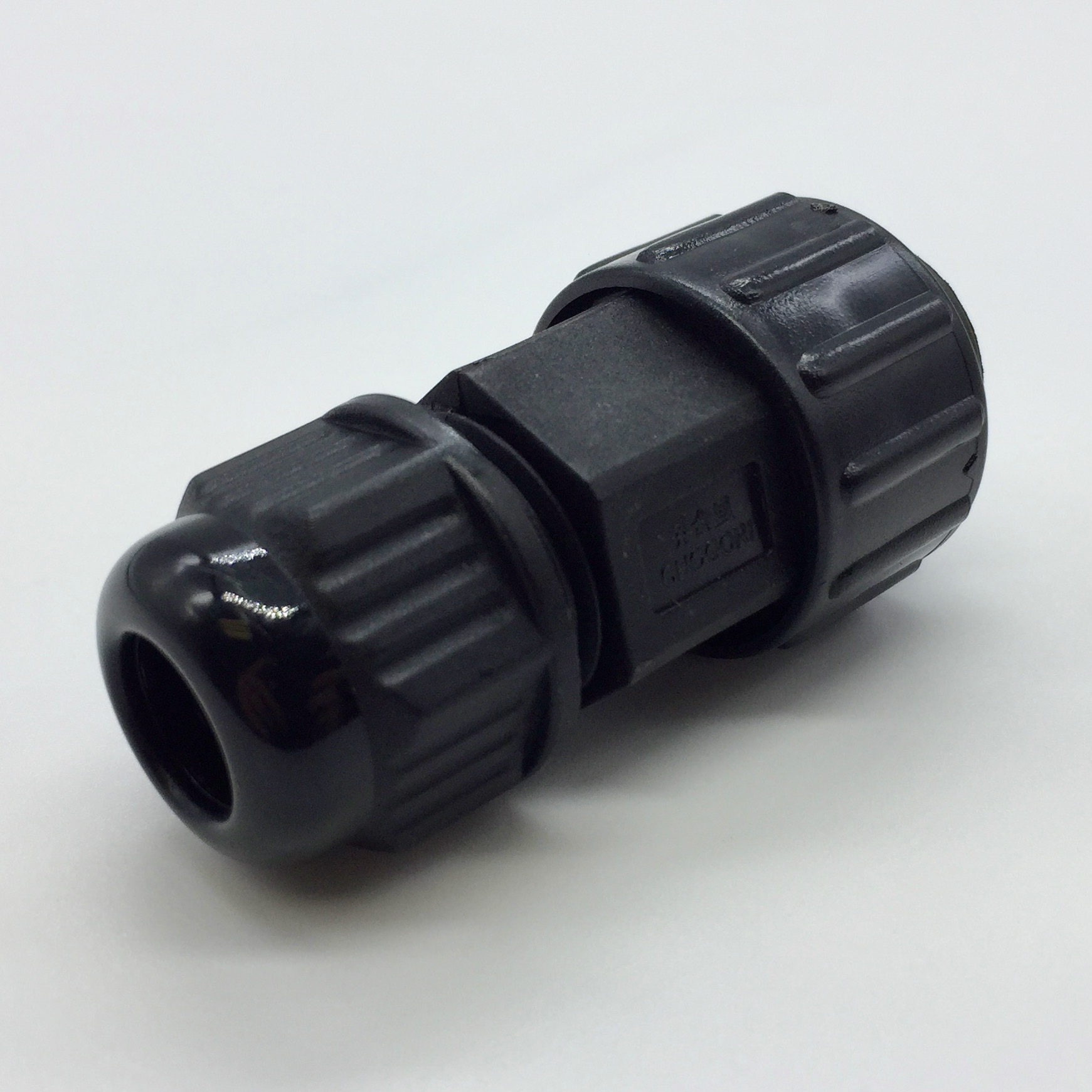

Chogori Large series 2 pin male plug with pin field installable (lock bayonet) Waterproof Connector Part Number: 24002121-01

$17.40

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Locking

Bayonet

Poles

2 Poles 20A 300V

Voltage Rating

300V

Total Number of Contacts

2

Rated Curent(40C)

20A

# 20A 300V Contacts

2

Wire Gauge

12AWG

Configuration Type

Male Connector, Male Pin

Locking Type

Lock Bayonet

IP Rating

IP67

Assembly Method

Installable 180

Termination Code

Std

Contact Resistance

<10mOhms

Insulation Resistance

100MOhms @ 500VDC

Mating Cycles

500

Operating Temp

-45C to 105c

Rohs

Compliant

Sealing

Min IP67
