SUL865970

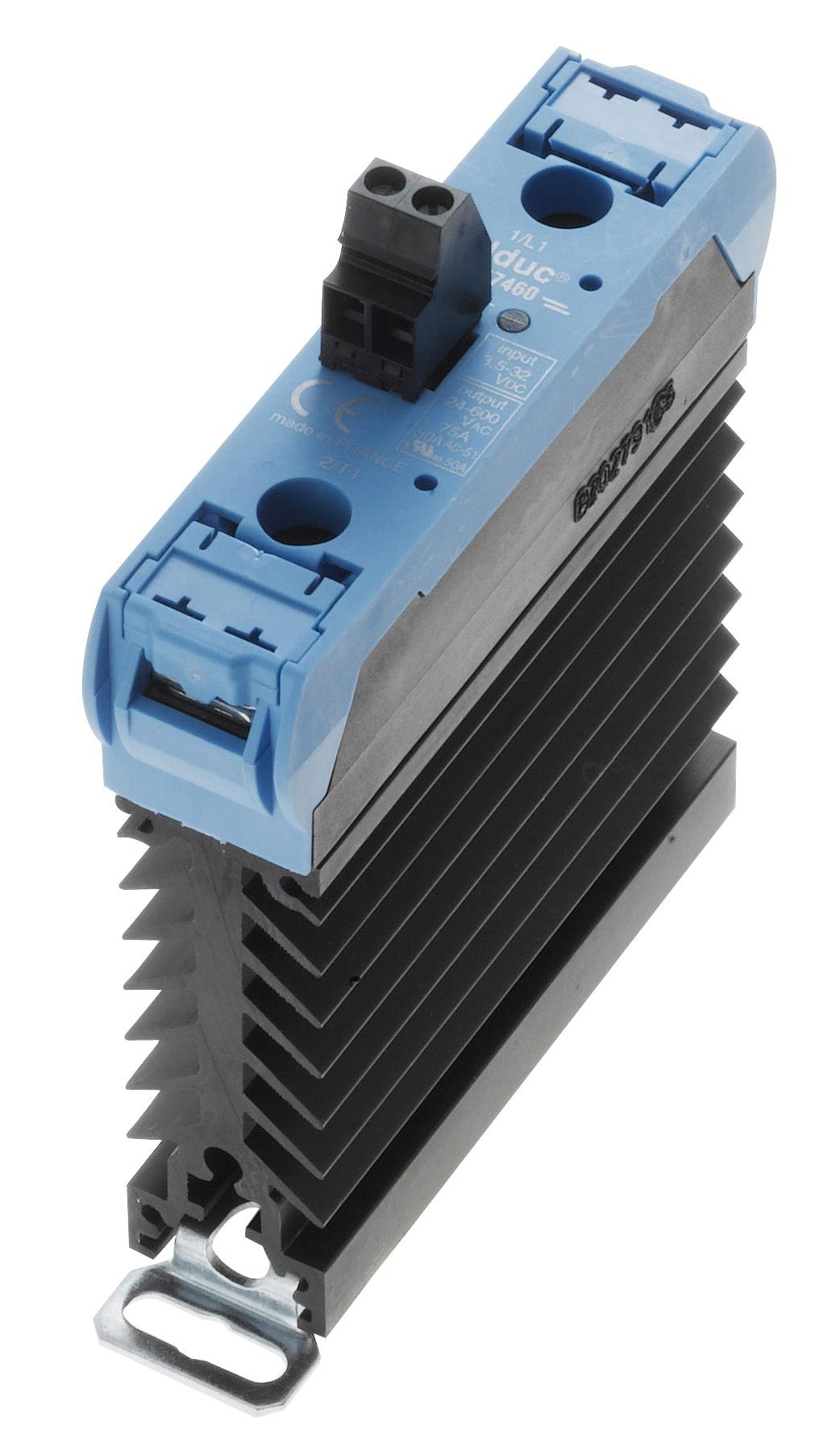

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 32A/24-510VA/VDR/INPUT 180-240VAC/LED Configured with screw Terminals and Normally Open Contacts and DIN Rail Housing with 160VVAC - 240VVAC @ 6,7mA Max . Celduc Part Number SUL865970

$69.90

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(3.86 x 3.54 x 0.89)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

230VAC

Switching type relay

ZC

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

510

Length-mm

90

Height-mm

98

Width-mm

22.5

EAN

3760283307452

Not available at this time.
