SUL865070

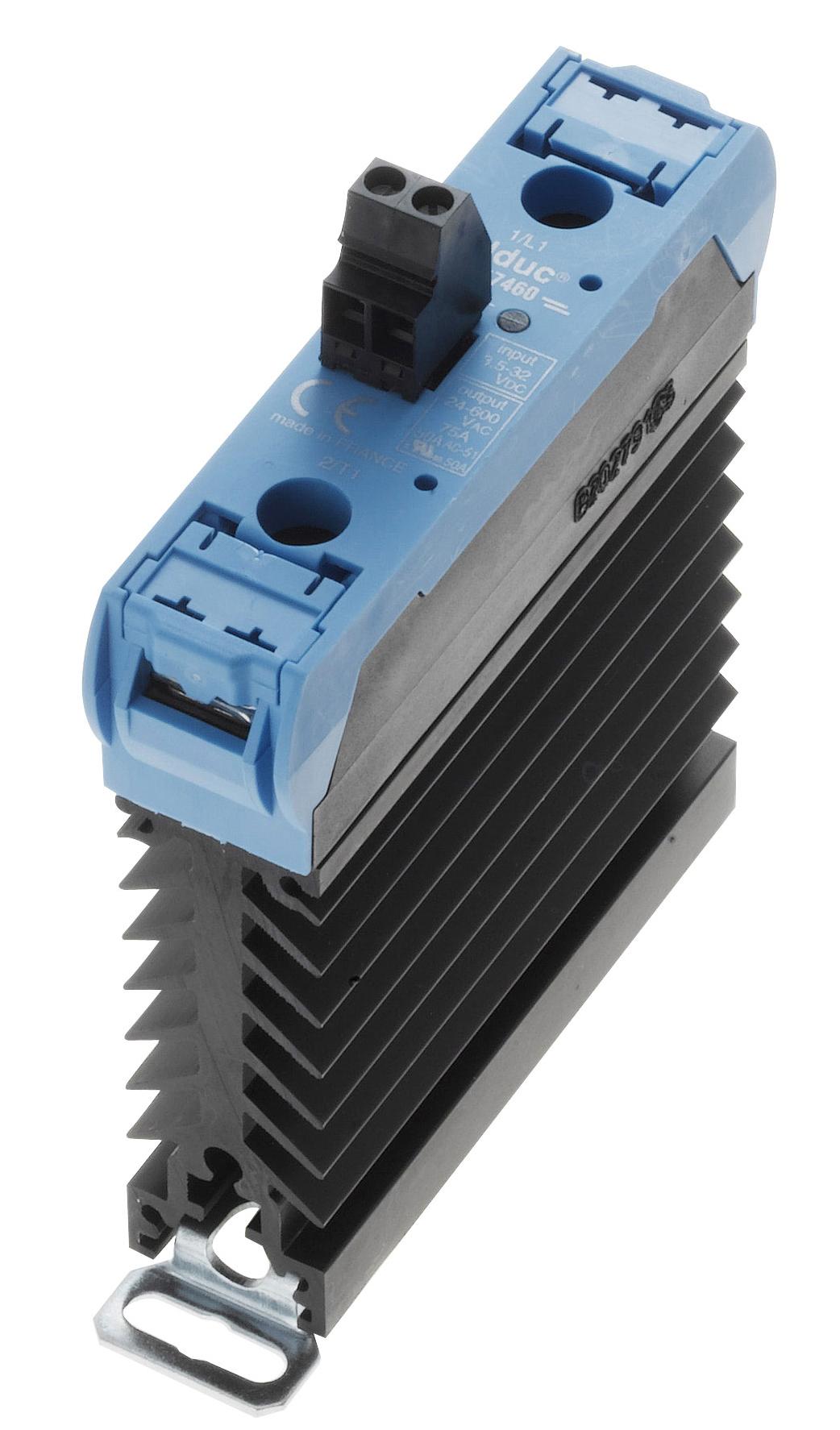

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 32A/24-510VA/VDR/INPUT 3,5-32VDC/LED Configured with screw Terminals and Normally Open Contacts and DIN Rail Housing with 3,5VDC - 32VDC @ <13mA Max . Celduc Part Number SUL865070

$68.90

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(3.86 x 3.54 x 0.89)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

ZC

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

510

Length-mm

90

Height-mm

98

Width-mm

22.5

EAN

3760283307476
