SU867070

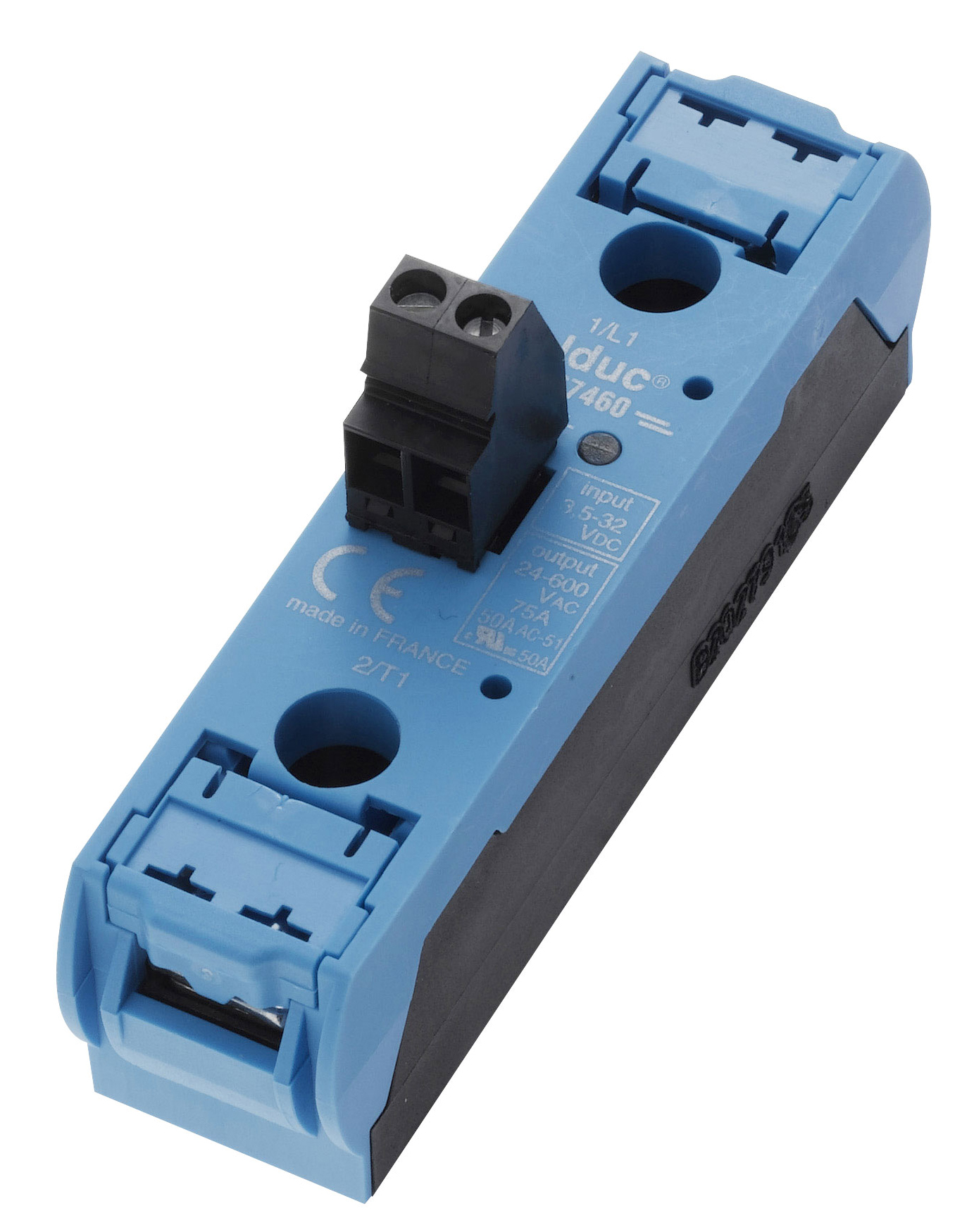

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 75A/24-510VAC/VDR/INPUT 3,5-32VDC/LED Configured with screw Terminals and Normally Open Contacts and Screw Housing with 3,5VDC - 32VDC @ <13mA Max . Celduc Part Number SU867070

$52.10

Min: 36  Mult: 36

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.09 x 3.54 x 0.89)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

ZC

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

90

Housing

Screw

Load Voltage Min

24

Load Voltage Max

510

Length-mm

90

Height-mm

27.7

Width-mm

22.5

Load continuous current (nominal)

75

EAN

3760283307704
