SU765070

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

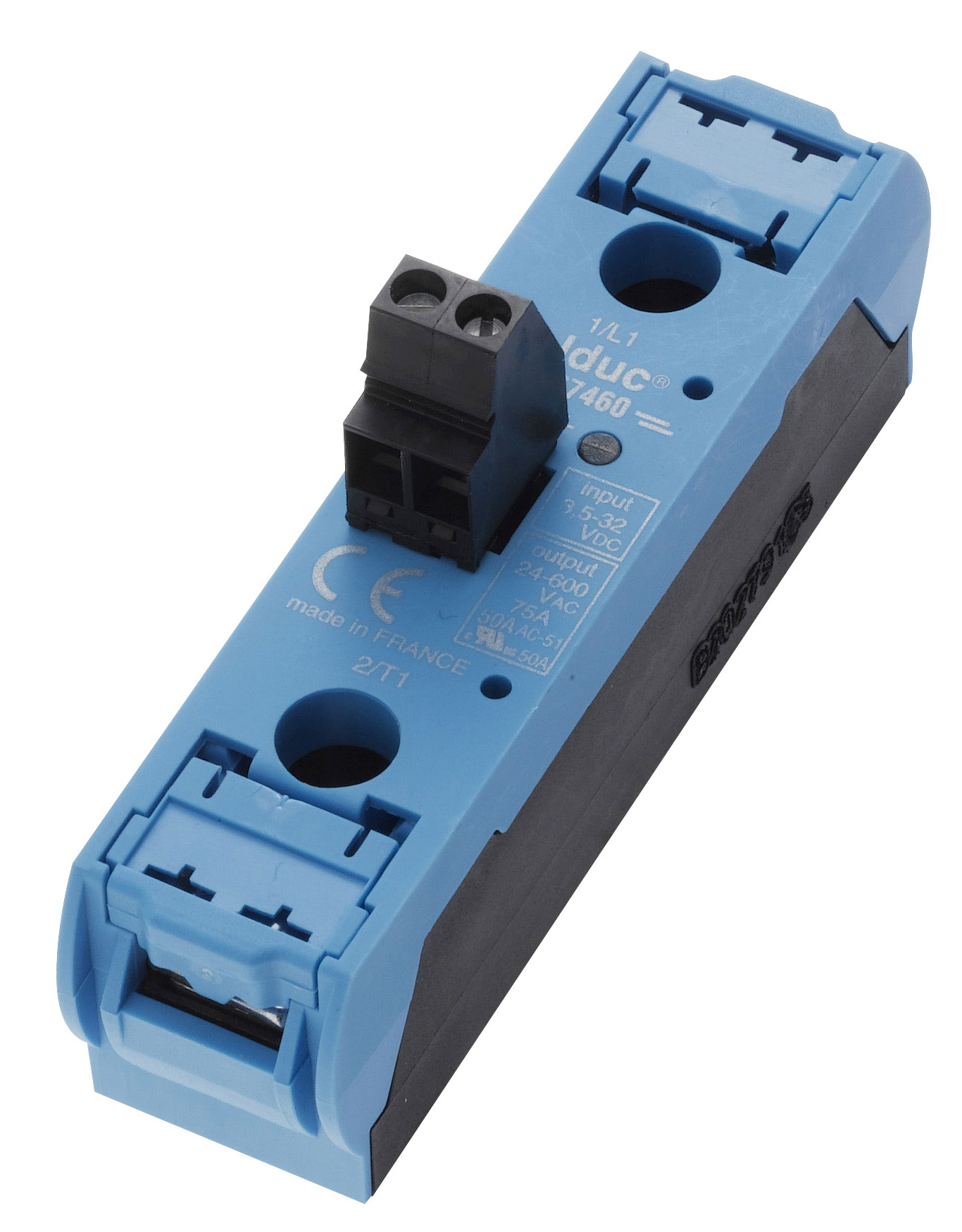

SSR 50A/24-510VAC/VDR/INPUT 3-32VDC/LED/RANDOM Configured with screw Terminals and Normally Open Contacts and Screw Housing with 3,5VDC - 32VDC @ <13mA Max . Celduc Part Number SU765070

$57.20

Min: 36  Mult: 36

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(1.09 x 3.54 x 0.89)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

Random

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

60

Housing

Screw

Load Voltage Min

24

Load Voltage Max

510

Length-mm

90

Height-mm

27.7

Width-mm

22.5

Load continuous current (nominal)

50

EAN

3760283307773
