SPA07420

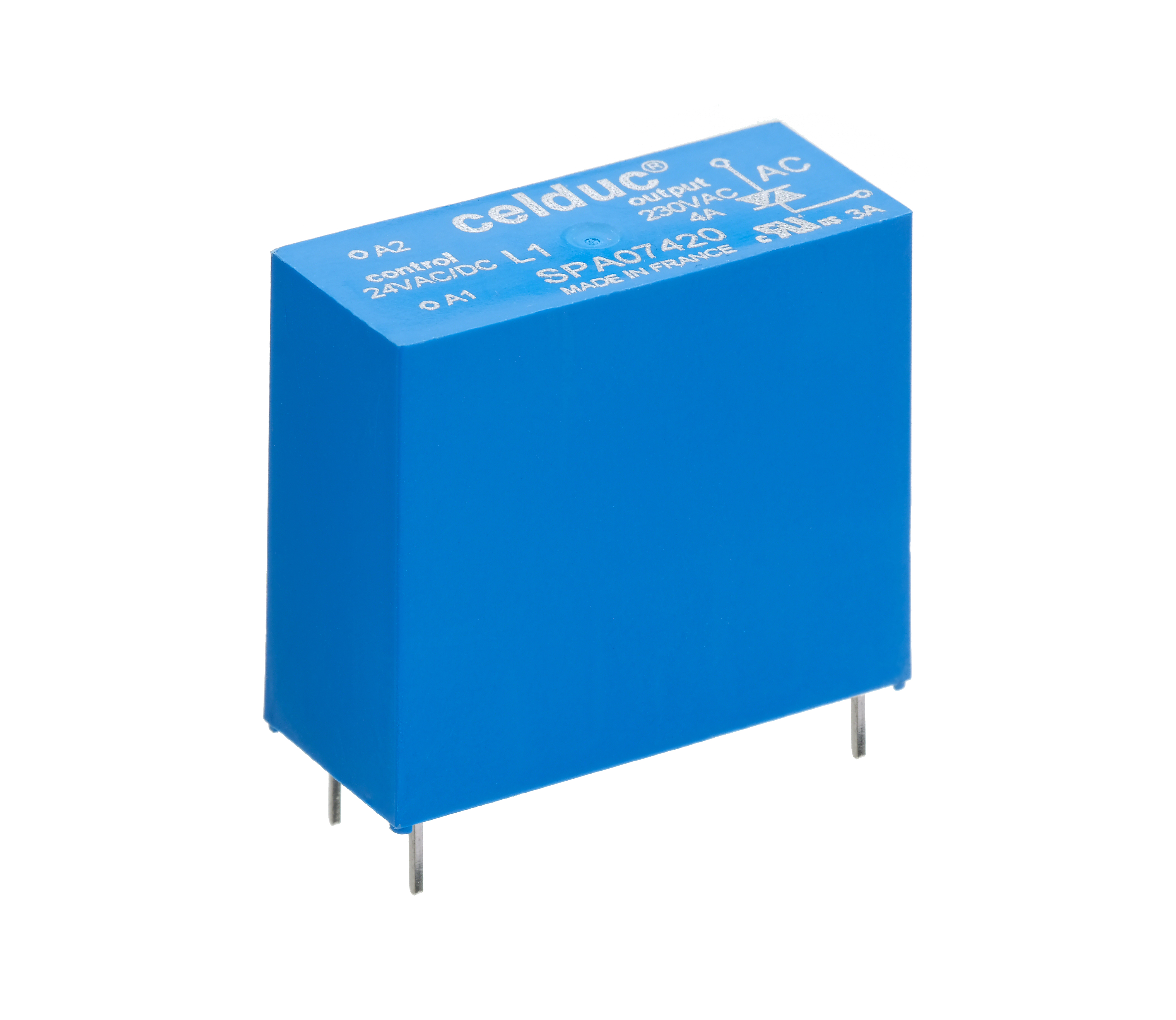

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 4A/230VAC/CTRL 24VAC/DC Configured with pin Terminals and Normally Open Contacts and PCB Housing with 1215VDC - 30VDC @ 1213mA Max . Celduc Part Number SPA07420

$27.60

Min: 15  Mult: 15

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.15 x 1.2 x 0.51)

Packaging Type

Tube

Number of switched phases

1 phase

Control voltage (nominal)

24VDC

Switching type relay

ZC

Terminals

pin

Protection

VDR

Contact

Normally Open

Housing

PCB

Length-mm

30.5

Height-mm

29.2

Width-mm

13

Load continuous current (nominal)

4

EAN

3760283308510
