SOR965440-HE-WF114

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

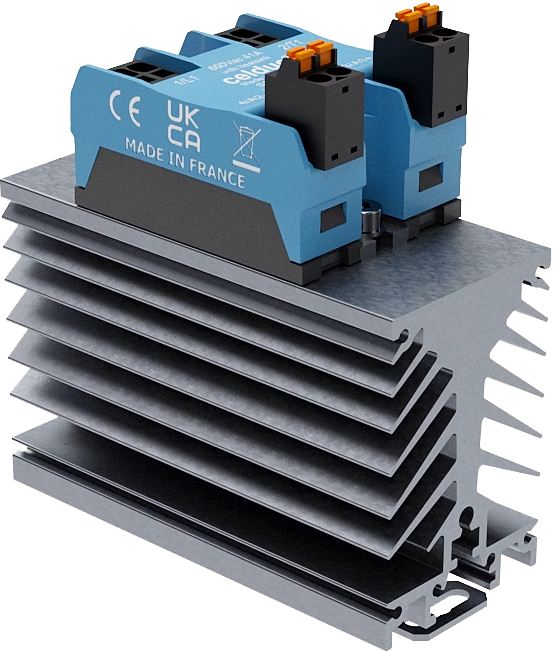

SSR PUSH IN CONTACTORS 41A/24-600VAC/TVS/CTRL 3,5-32VDC/LED/ICREGUL Configured with pushin Terminals and Normally Open Contacts and Hockey Puck Housing with 3,5-32VDC @ <13mA Max . Celduc Part Number SOR965440-HE-WF114

$93.50

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(4.52 x 3.94 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

3,5-32VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

34

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

600

Length-mm

100

Height-mm

114.7

Width-mm

45

Load continuous current (nominal)

34

EAN

3760283309661

Not available at this time.
