SOL965460

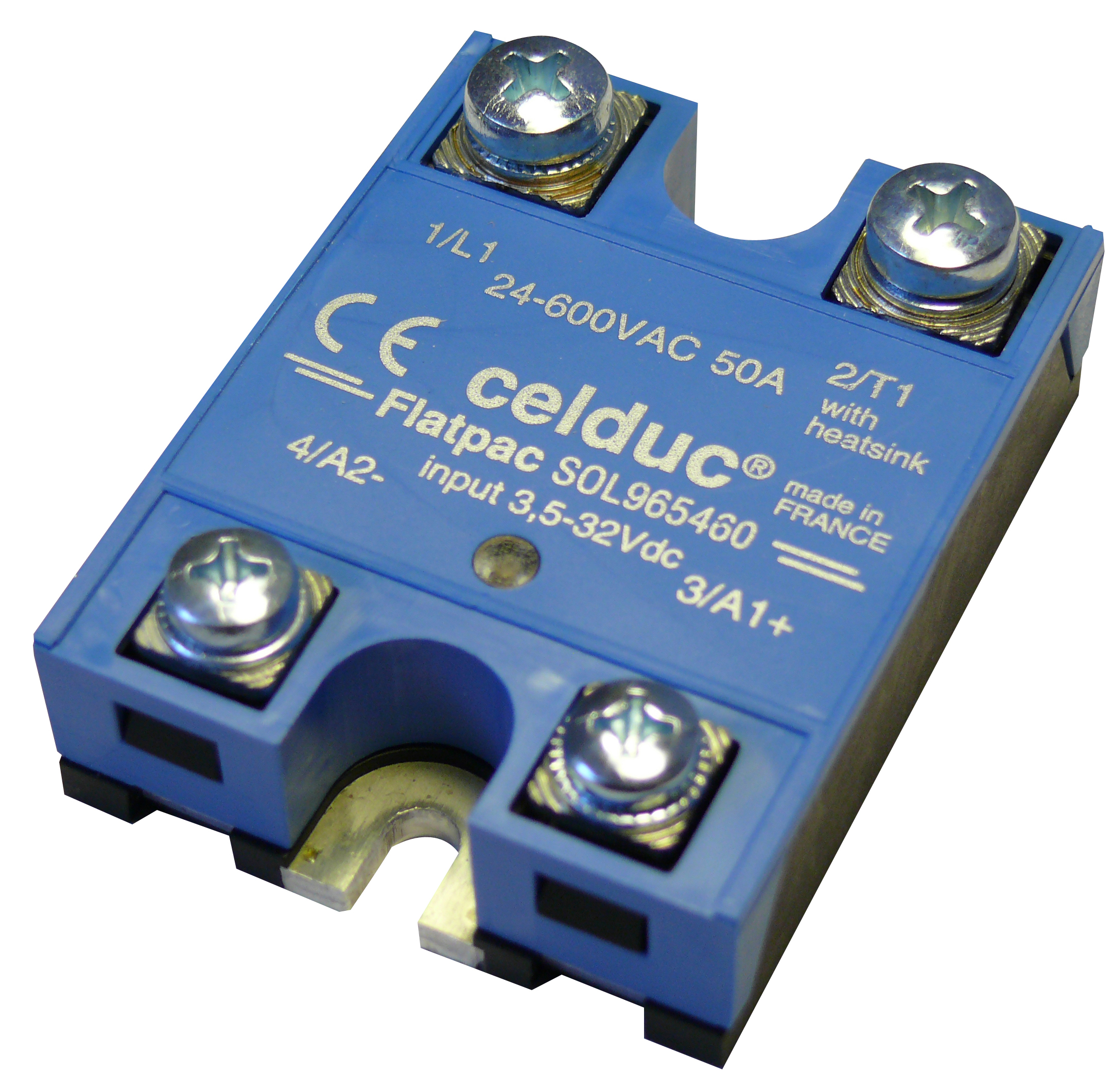

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 50A/24-600VAC/CTRL 3,5-32VDC/LED/REGULATED INPUT Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with 3,5VDC - 32VDC @ <13mA Max . Celduc Part Number SOL965460

$40.10

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(0.64 x 2.28 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

ZC

Load Current Max (calibre relais)

60

Housing

Hockey Puck

Terminals

screw

Contact

Normally Open

Load Voltage Min

24

Load Voltage Max

600

Length-mm

58

Height-mm

16.3

Width-mm

45

Load continuous current (nominal)

50

EAN

3760283300040

Not available at this time.
