SOI885070

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

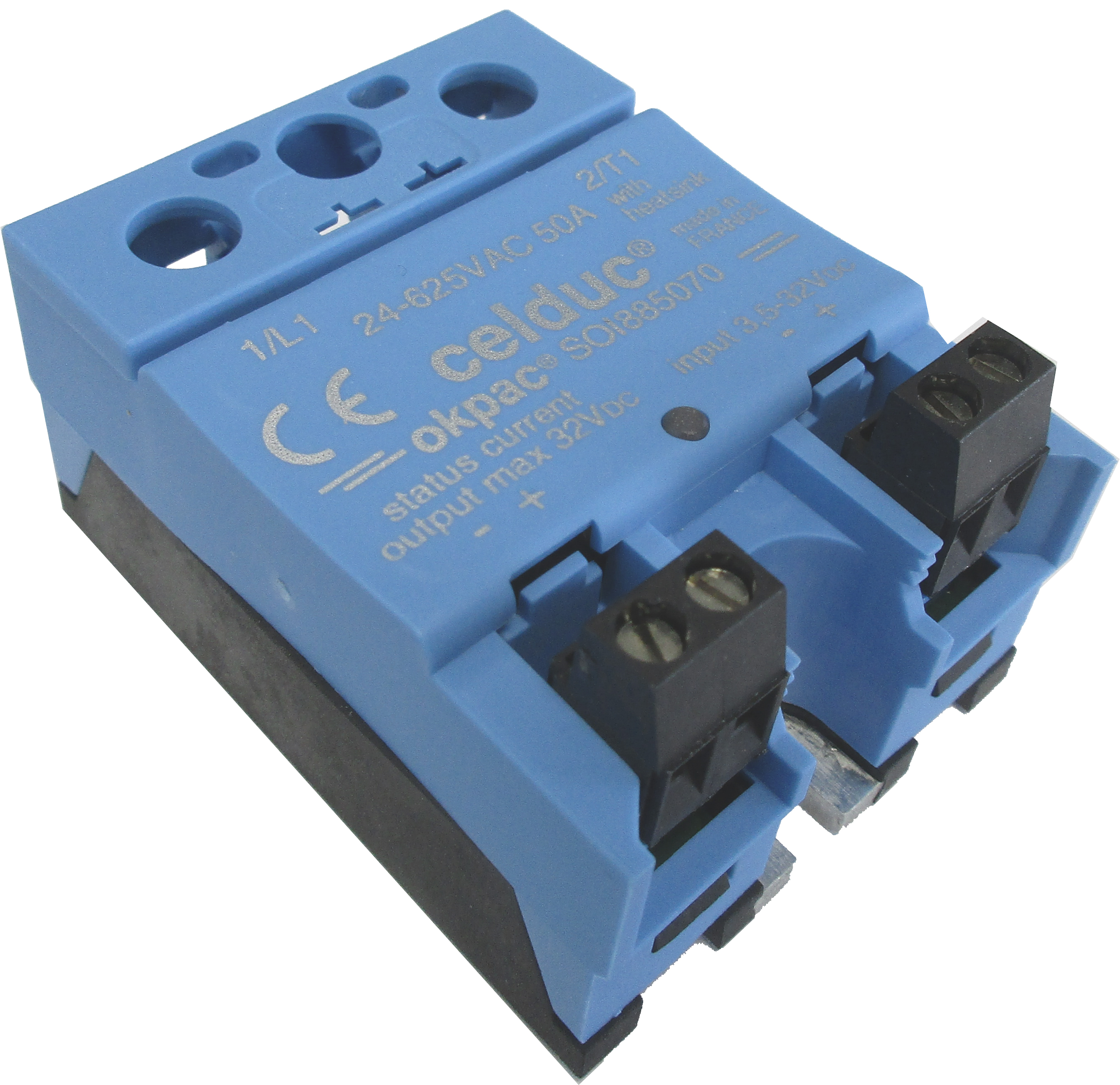

SSR 50A/24-625VAC/CTRL 3,5-32VDC/STATUS OUTPUT Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with 3,5VDC - 32VDC @ 11mA Max . Celduc Part Number SOI885070

$98.30

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +85

Overall Dims (HxLxW)

(1.32 x 2.33 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Terminals

screw

Switching type relay

ZC

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

60

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

600

Length-mm

59.2

Height-mm

33.6

Width-mm

45

Load continuous current (nominal)

50

EAN

3760283302334

Not available at this time.
