SOD867180

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

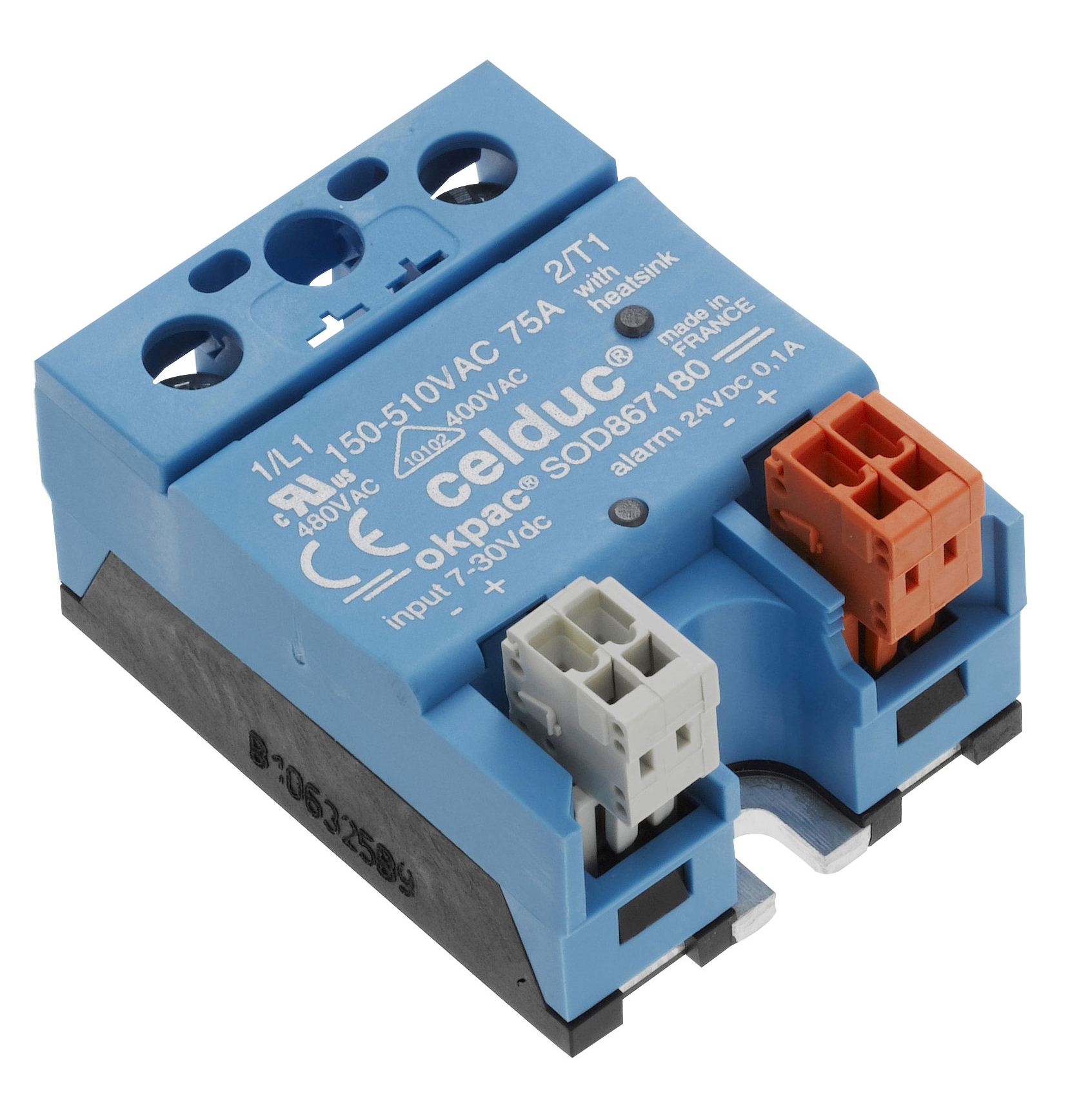

SSR 75A/150-510VAC/RC/CTRL 5-30VDC/LED/DIAGNOSTIC Configured with screw/spring Terminals and Normally Open Contacts and Hockey Puck Housing with 7VDC - 30VDC @ 27mA Max . Celduc Part Number SOD867180

$86.30

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.32 x 2.33 x 1.76)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

12-24VDC

Switching type relay

ZC

Terminals

screw/spring

Protection

RC

Contact

Normally Open

Load Current Max (calibre relais)

90

Housing

Hockey Puck

Load Voltage Min

150

Load Voltage Max

600

Length-mm

59.2

Height-mm

33.5

Width-mm

44.8

Load continuous current (nominal)

75

EAN

3760283302716
