SOBR967640

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

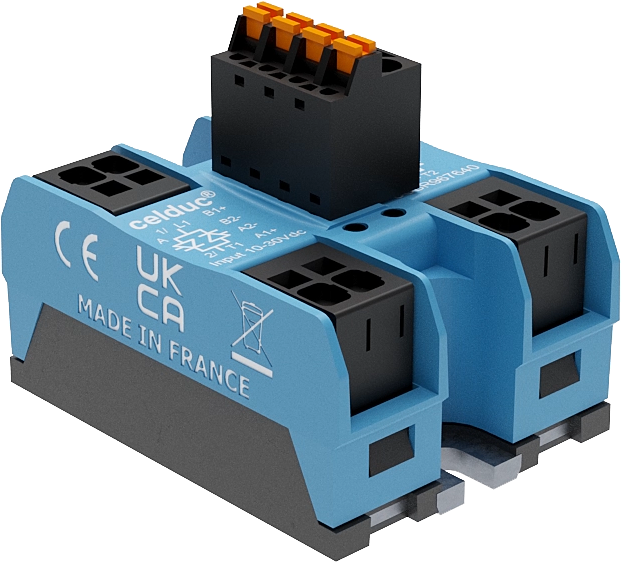

SSR PUSH IN 2X41A/24-600VAC/TVS/2 CTRL 10-30VDC/LED Configured with pushin Terminals and Normally Open Contacts and Hockey Puck Housing with 10VDC - 30VDC @ 24mA Max . Celduc Part Number SOBR967640

$129.60

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.89 x 2.32 x 1.76)

Packaging Type

Carton

Number of switched phases

2 phase - 2 controls

Control voltage (nominal)

10-30VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

41

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

600

Length-mm

59

Height-mm

48.1

Width-mm

44.8

Load continuous current (nominal)

41

EAN

3760283309692
