SOBR965640-HE-WFF05

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

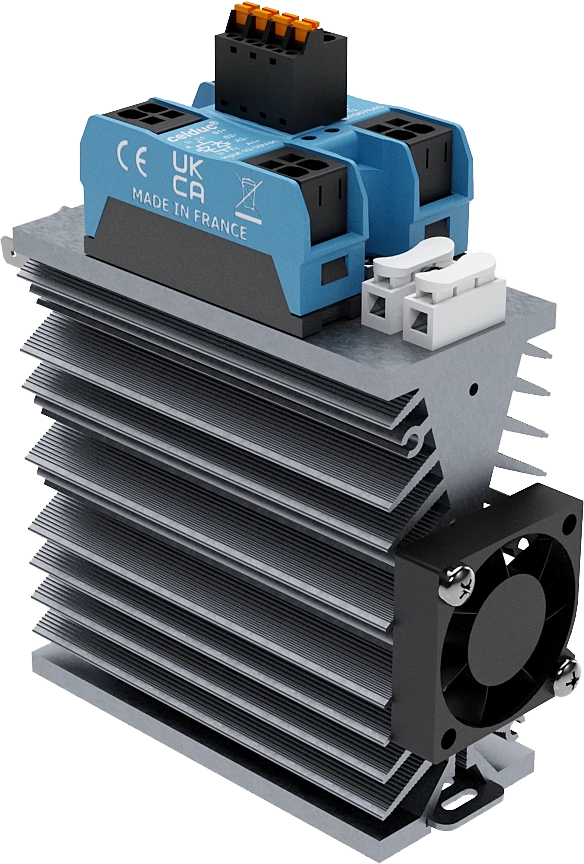

SSR PUSH IN CONTACTORS 2X41A/24-600VAC/TVS/2 CTRL 10-30VDC/LED Configured with pushin Terminals and Normally Open Contacts and Hockey Puck Housing with 10VDC - 30VDC @ 24mA Max . Celduc Part Number SOBR965640-HE-WFF05

$212.10

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(6.13 x 5.3 x 1.77)

Packaging Type

Carton

Number of switched phases

2 phase - 2 controls

Control voltage (nominal)

10-30VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

41

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

600

Length-mm

134.7

Height-mm

155.6

Width-mm

45

Load continuous current (nominal)

41

EAN

3760283309708

Not available at this time.
