SOB965660

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

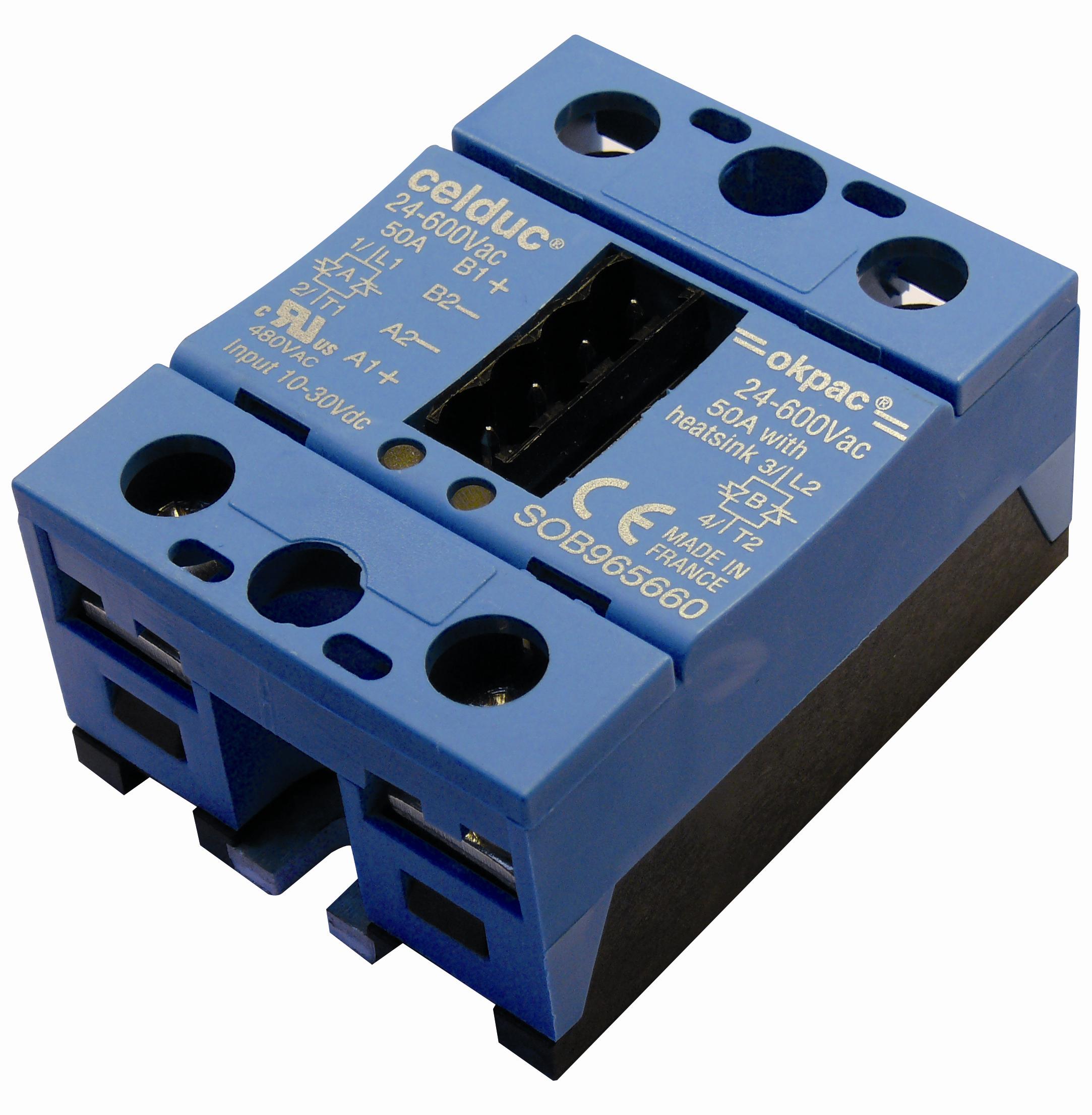

SSR 2X50A/400VAC/2 CTRL 10-30VDC Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with 10VDC - 30VDC @ 24mA Max . Celduc Part Number SOB965660

$98.00

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(1.18 x 2.34 x 1.76)

Packaging Type

Carton

Number of switched phases

2 phase - 2 controls

Terminals

screw

Switching type relay

ZC

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

600

Length-mm

59.4

Height-mm

30

Width-mm

44.8

Load continuous current (nominal)

50

EAN

3760283301160

Not available at this time.
