SOB564330

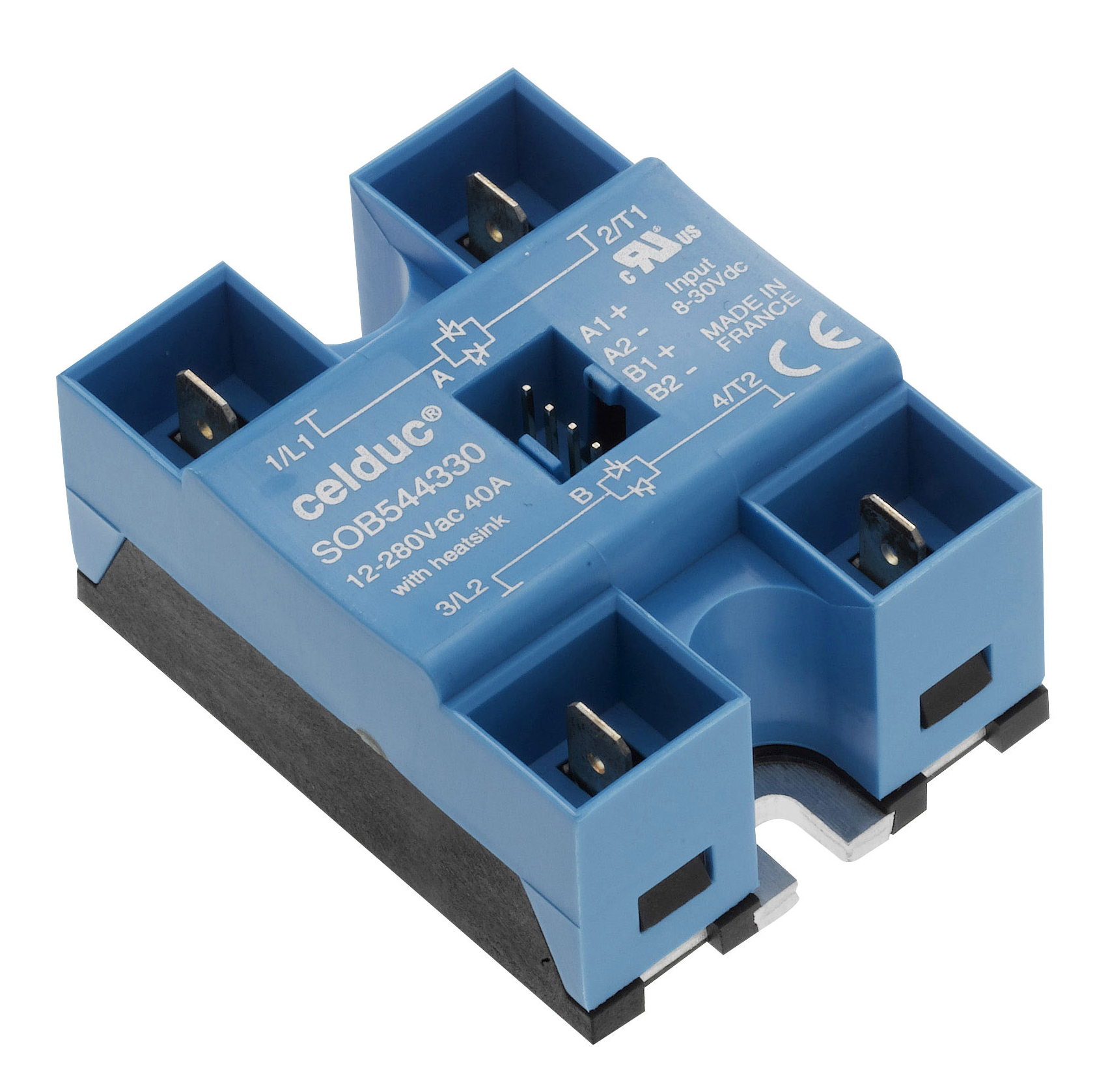

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 2X40A/400VAC/2 CTRL 10-30VDC/FASTONS Configured with faston/connector Terminals and Normally Open Contacts and Hockey Puck Housing with 8VDC - 30VDC @ 24mA Max . Celduc Part Number SOB564330

$90.10

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(1.13 x 2.29 x 1.76)

Packaging Type

Carton

Number of switched phases

2 phase - 2 controls

Control voltage (nominal)

12VDC

Switching type relay

ZC

Terminals

faston/connector

Protection

TVS on gate

Contact

Normally Open

Load Current Max (calibre relais)

25 A (FASTONS) : 35/40A

Housing

Hockey Puck

Load Voltage Min

24

Load Voltage Max

510

Length-mm

58.06

Height-mm

28.66

Width-mm

44.8

Load continuous current (nominal)

25 A (FASTONS) : 35/40A

EAN

3760283302761

Not available at this time.
