SOB542460

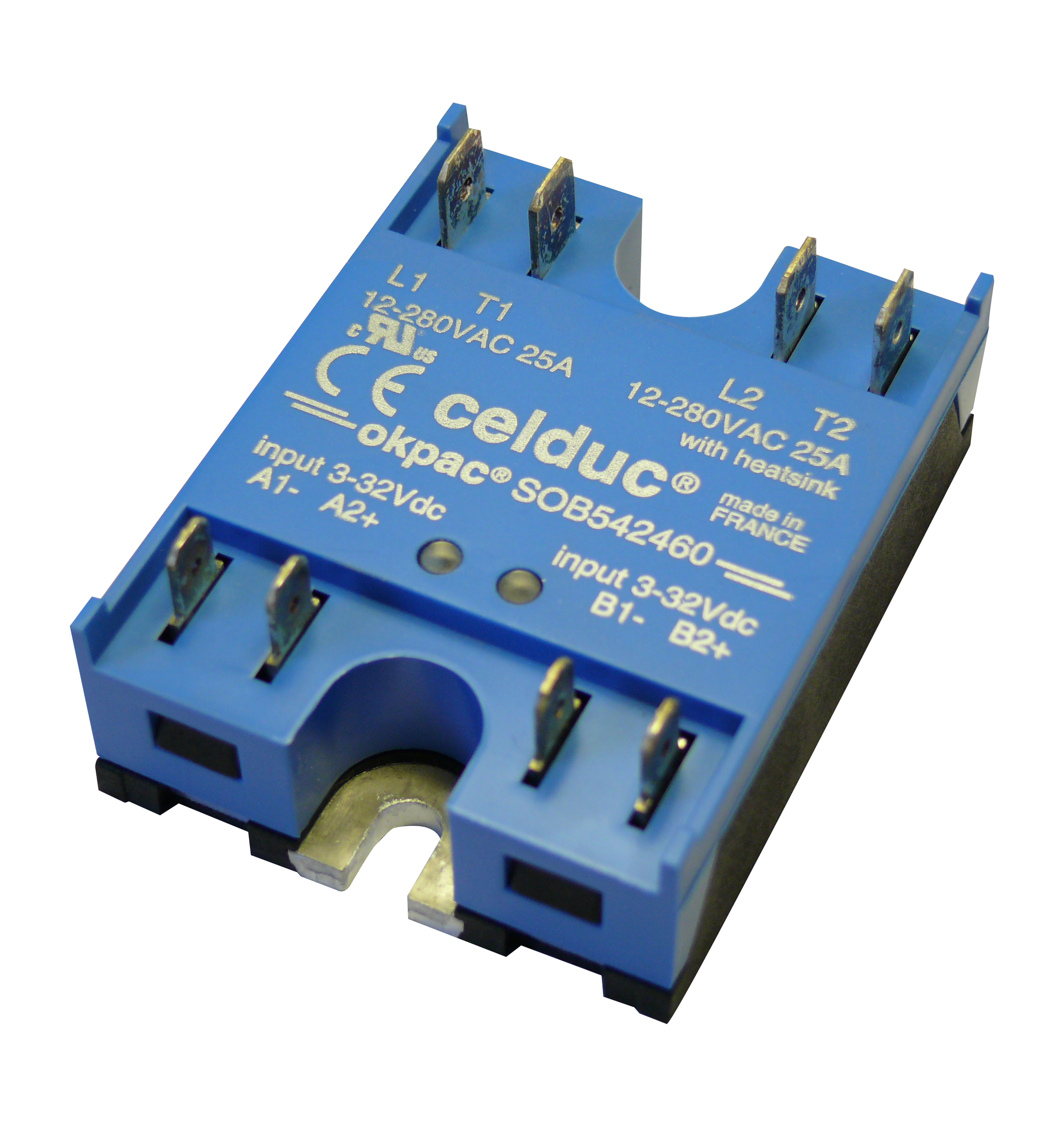

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 2X25A/230VAC/2 CTRL 3-32VDC/FASTONS Configured with faston Terminals and Normally Open Contacts and Hockey Puck Housing with 3VDC - 32VDC @ <13mA Max . Celduc Part Number SOB542460

$73.40

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(0.94 x 2.28 x 1.77)

Control voltage (nominal)

5-12-24VDC

Packaging Type

Carton

Number of switched phases

2 phase - 2 controls

Terminals

faston

Switching type relay

ZC

Contact

Normally Open

Housing

Hockey Puck

Load Voltage Min

12

Load Voltage Max

280

Length-mm

58

Height-mm

23.8

Width-mm

45

Load continuous current (nominal)

25

EAN

3760283302853

Not available at this time.
