SO885960-WF151

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

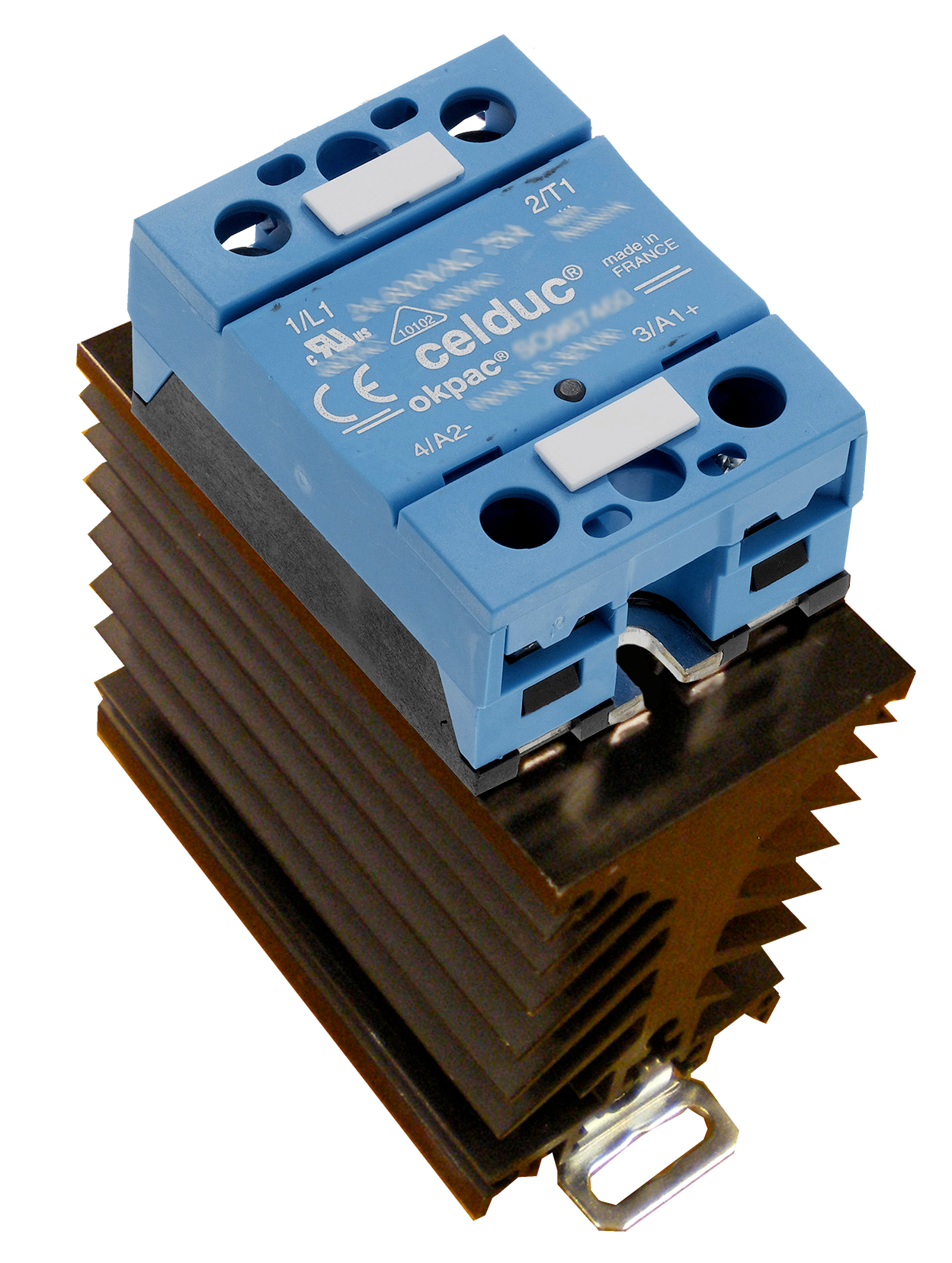

SO885960 SSR Mounted on WF151200 Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with 20VAC/18VDC - 265VAC/240VDC @ 10mA Max . Celduc Part Number SO885960-WF151

$99.40

Min: 10  Mult: 10

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(4.04 x 3.86 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

110-230VAC/24-48-110VDC

Switching type relay

ZC

Load Current Max (calibre relais)

60

Housing

Hockey Puck

Terminals

screw

Contact

Normally Open

Load Voltage Min

24

Load Voltage Max

690

Length-mm

98

Height-mm

102.6

Width-mm

45

Load continuous current (nominal)

50

EAN

3760283309418

Not available at this time.
