SO467501

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

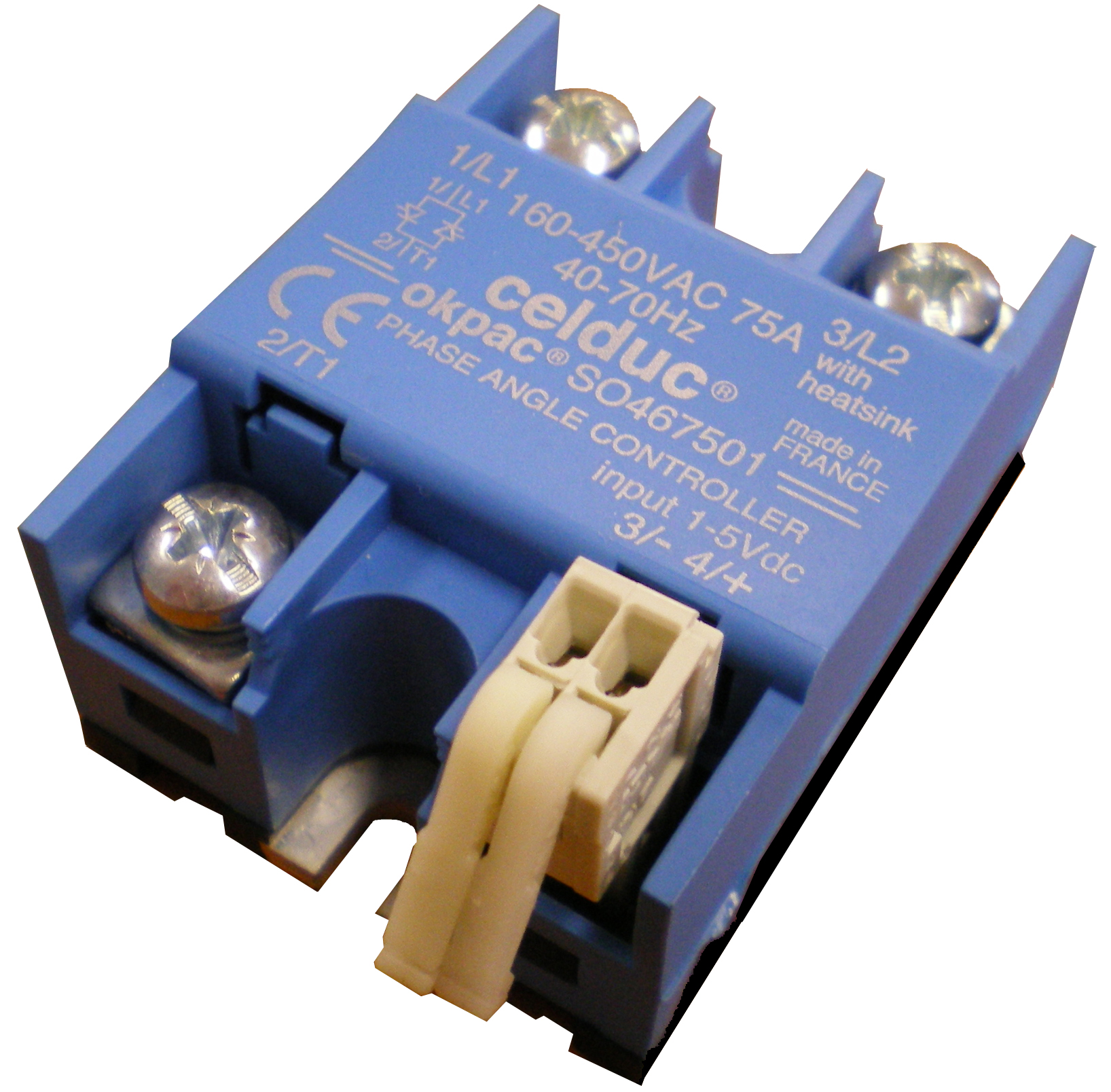

SSR 75A/160-450VAC/CTRL 1-5V ANA Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with @ 2,4mA Max . Celduc Part Number SO467501

$166.70

Min: 2  Mult: 2

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +90

Overall Dims (HxLxW)

(1.32 x 2.3 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5VDC

Switching type relay

phase angle controller

Load Current Max (calibre relais)

90

Housing

Hockey Puck

Terminals

screw

Contact

Normally Open

Load Voltage Min

160

Load Voltage Max

450

Length-mm

58.5

Height-mm

33.6

Width-mm

45

Load continuous current (nominal)

75

EAN

3760283300439
