SO467420

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

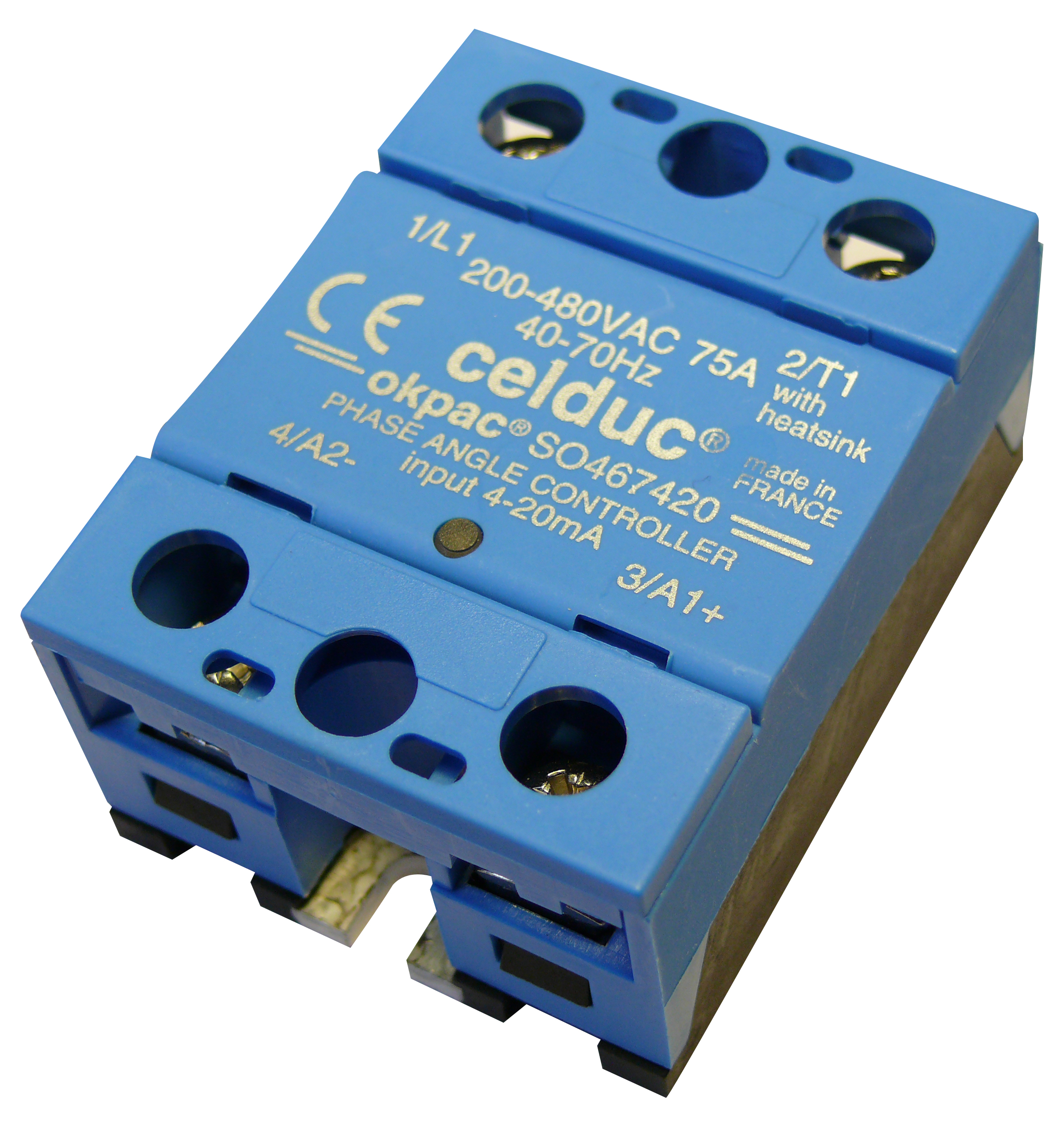

SSR 75A/400VAC CTRL 4-20 MA Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with @ 50mA Max . Celduc Part Number SO467420

$166.70

Min: 2  Mult: 2

Product Attributes


Click Here

Temperature Range

-40 to +90

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(1.18 x 2.3 x 1.77)

Number of switched phases

1 phase

Packaging Type

Carton

Terminals

screw

Switching type relay

phase angle controller

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

90

Housing

Hockey Puck

Load Voltage Min

200

Load Voltage Max

480

Length-mm

58.5

Height-mm

30

Width-mm

45

EAN

3760283300170

Not available at this time.
