SO445020

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

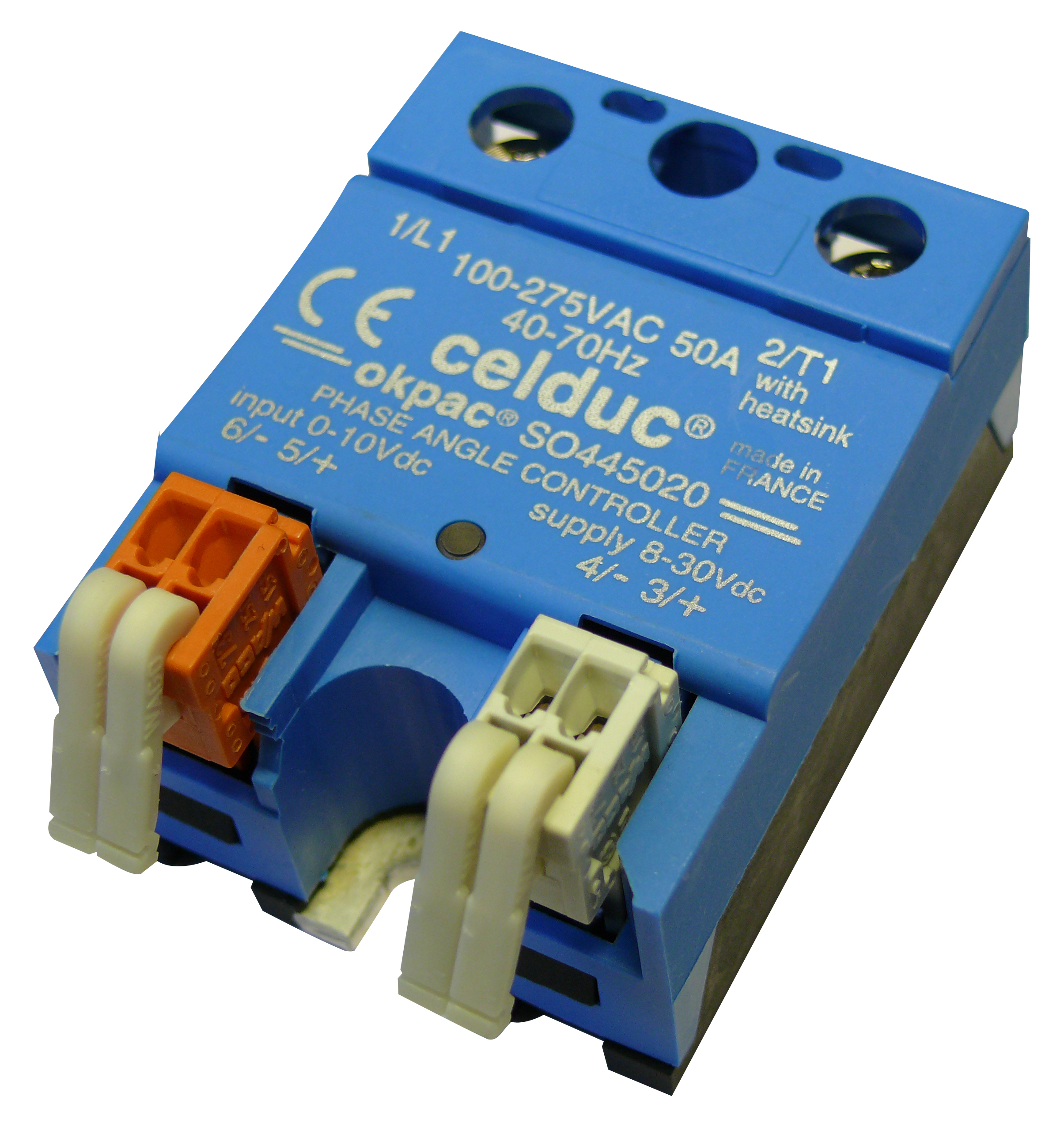

SSR 50A/230VAC/CTRL 0-10V ANA Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with @ 300mA Max . Celduc Part Number SO445020

$151.20

Min: 2  Mult: 2

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +90

Overall Dims (HxLxW)

(1.32 x 2.3 x 1.77)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

10VDC

Switching type relay

phase angle controller

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

Hockey Puck

Load Voltage Min

100

Load Voltage Max

280

Length-mm

58.5

Height-mm

33.6

Width-mm

45

EAN

3760283300828

Not available at this time.
