SO367001

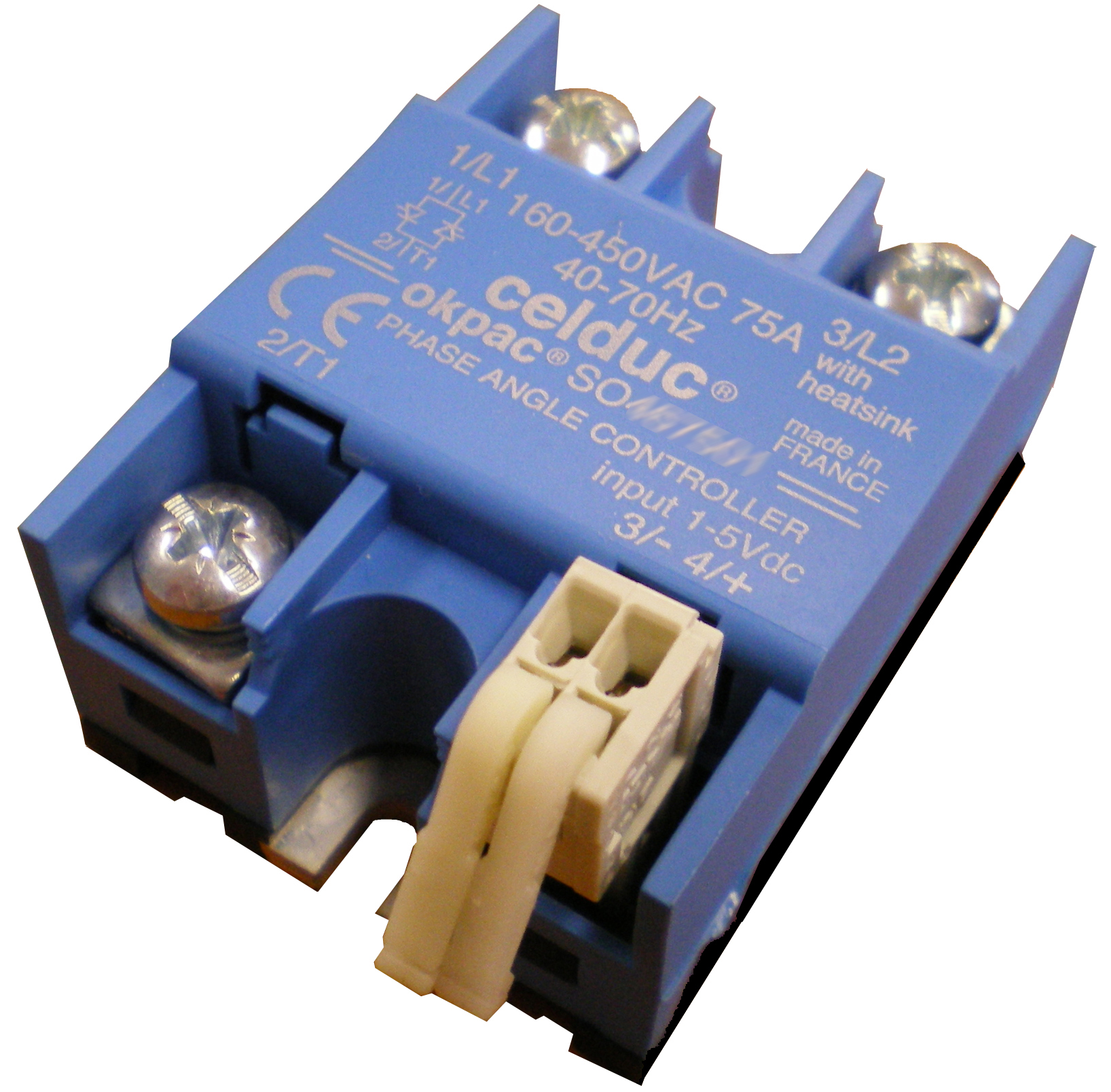

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ANALOGUE COTROL RELAY 75A/400VAC/CTRL 0-10V/BURST CONTROL Configured with screw Terminals and Normally Open Contacts and Hockey Puck Housing with @ 2,4mA Max . Celduc Part Number SO367001

$173.00

Min: 2  Mult: 2

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +90

Overall Dims (HxLxW)

(1.32 x 2.3 x 1.77)

Control voltage (nominal)

10VDC

Packaging Type

Carton

Number of switched phases

1 phase

Terminals

screw

Housing

Hockey Puck

Load Current Max (calibre relais)

90

Contact

Normally Open

Load Voltage Min

160

Load Voltage Max

450

Length-mm

58.5

Height-mm

33.6

Width-mm

45

Load continuous current (nominal)

75

EAN

3760283300965

Not available at this time.
