SMT8628521

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

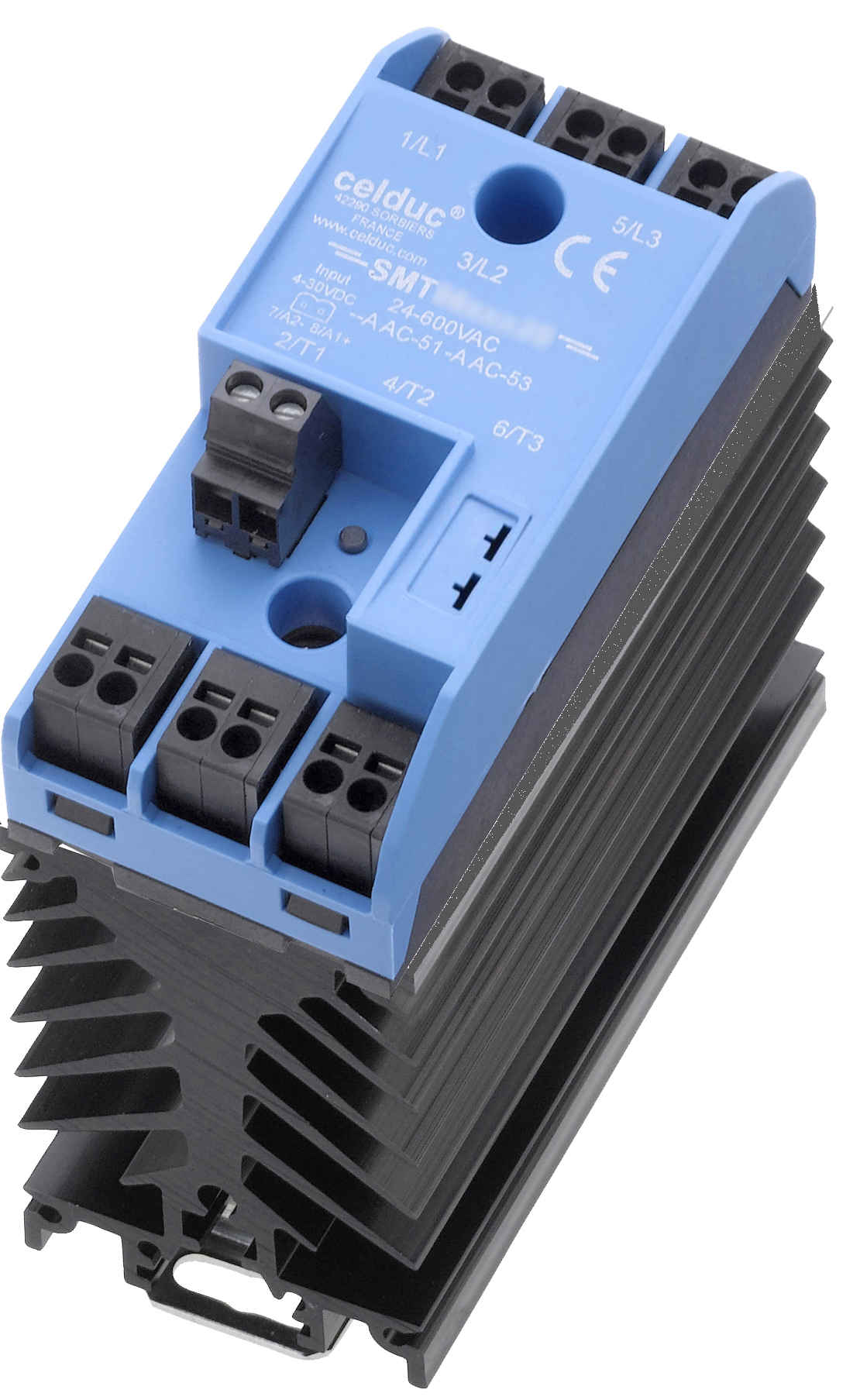

ZC THREE PHASE SSR 3X17A/24-520VAC/CTRL 24-255VAC/DC Configured with push in Terminals and Normally Open Contacts and DIN Rail Housing with 24VDC - 255VDC @ Max . Celduc Part Number SMT8628521

$131.00

Min: 10  Mult: 10

Product Attributes


Click Here

Temperature Range

-40 to +85

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(4.21 x 3.94 x 1.77)

Number of switched phases

3 phase - 1 control

Packaging Type

Carton

Terminals

push in

Switching type relay

ZC

Protection

RC - VDR

Contact

Normally Open

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

520

Length-mm

100

Height-mm

107

Width-mm

45

Load continuous current (nominal)

17

EAN

3760283306646
