SMT8628520

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

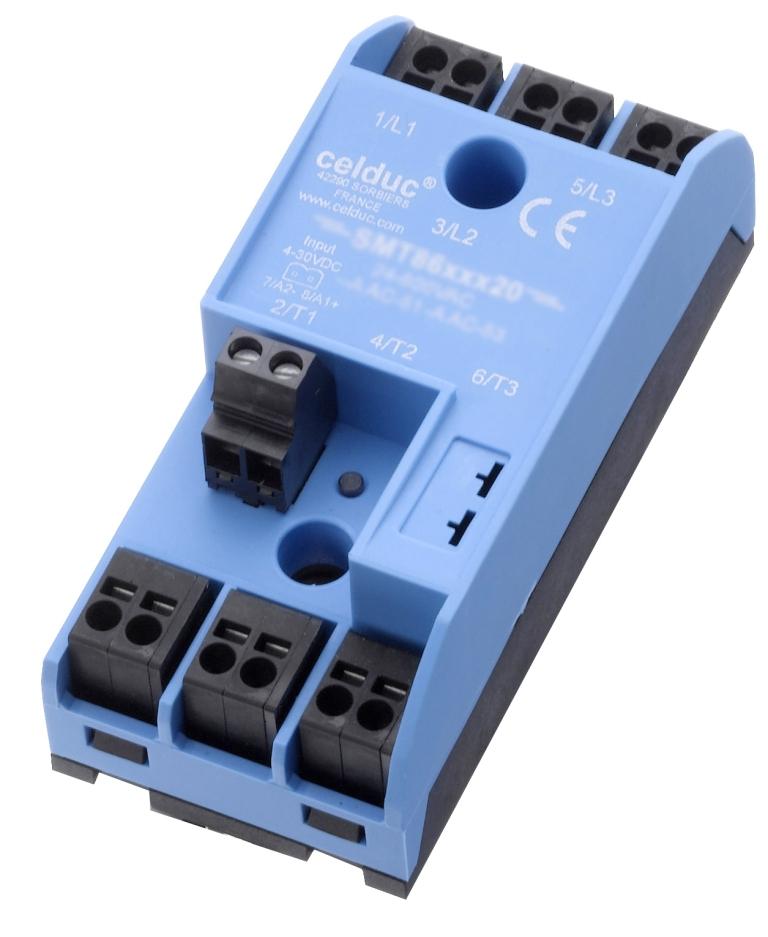

ZC THREE PHASE SSR 3X24A/24-520VAC/CTRL 24-255VAC/DC Configured with push in Terminals and Normally Open Contacts and Screw Housing with 24VDC - 255VDC @ Max . Celduc Part Number SMT8628520

$104.50

Min: 10  Mult: 10

Product Attributes


Click Here

Temperature Range

-40 to +85

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(1.64 x 3.93 x 1.77)

Number of switched phases

3 phase - 1 control

Packaging Type

Carton

Terminals

push in

Switching type relay

ZC

Protection

RC - VDR

Contact

Normally Open

Housing

Screw

Load Voltage Min

24

Load Voltage Max

520

Length-mm

99.8

Height-mm

41.54

Width-mm

45

Load continuous current (nominal)

20

EAN

3760283306653
