SMQR9623410

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

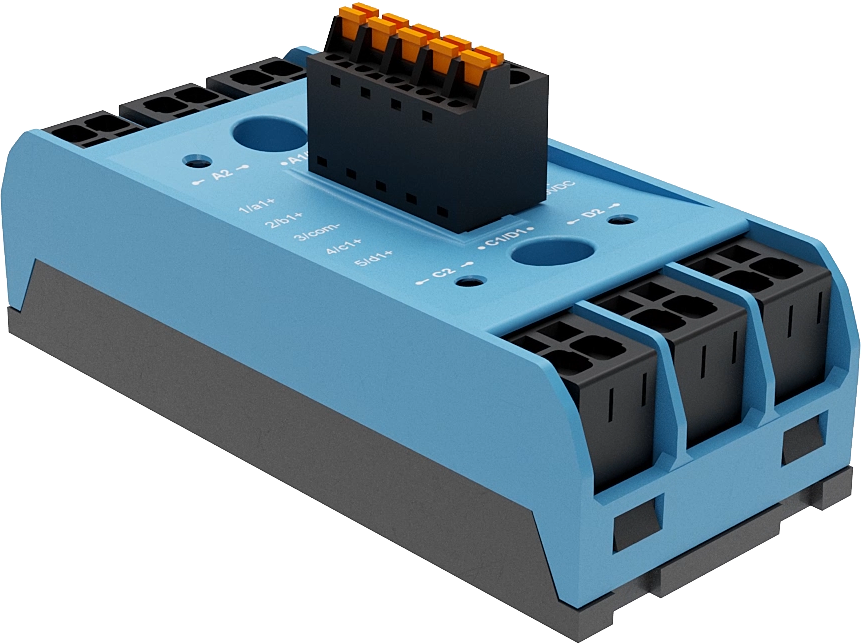

SSR PUSH IN 4X25A/24-580VAC/TVS/4 CTRL 10-30VDC/LED Configured with pushin Terminals and Normally Open Contacts and Screw Housing with 10VDC - 30VDC @ 24mA Max . Celduc Part Number SMQR9623410

$128.50

Min: 10  Mult: 10

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.89 x 3.93 x 1.77)

Packaging Type

Carton

Number of switched phases

4-leg

Control voltage (nominal)

10-30VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

25

Housing

Screw

Load Voltage Min

24

Load Voltage Max

600

Length-mm

99.8

Height-mm

48.1

Width-mm

45

Load continuous current (nominal)

25

EAN

3760283309623

Not available at this time.
