SMB8850210

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

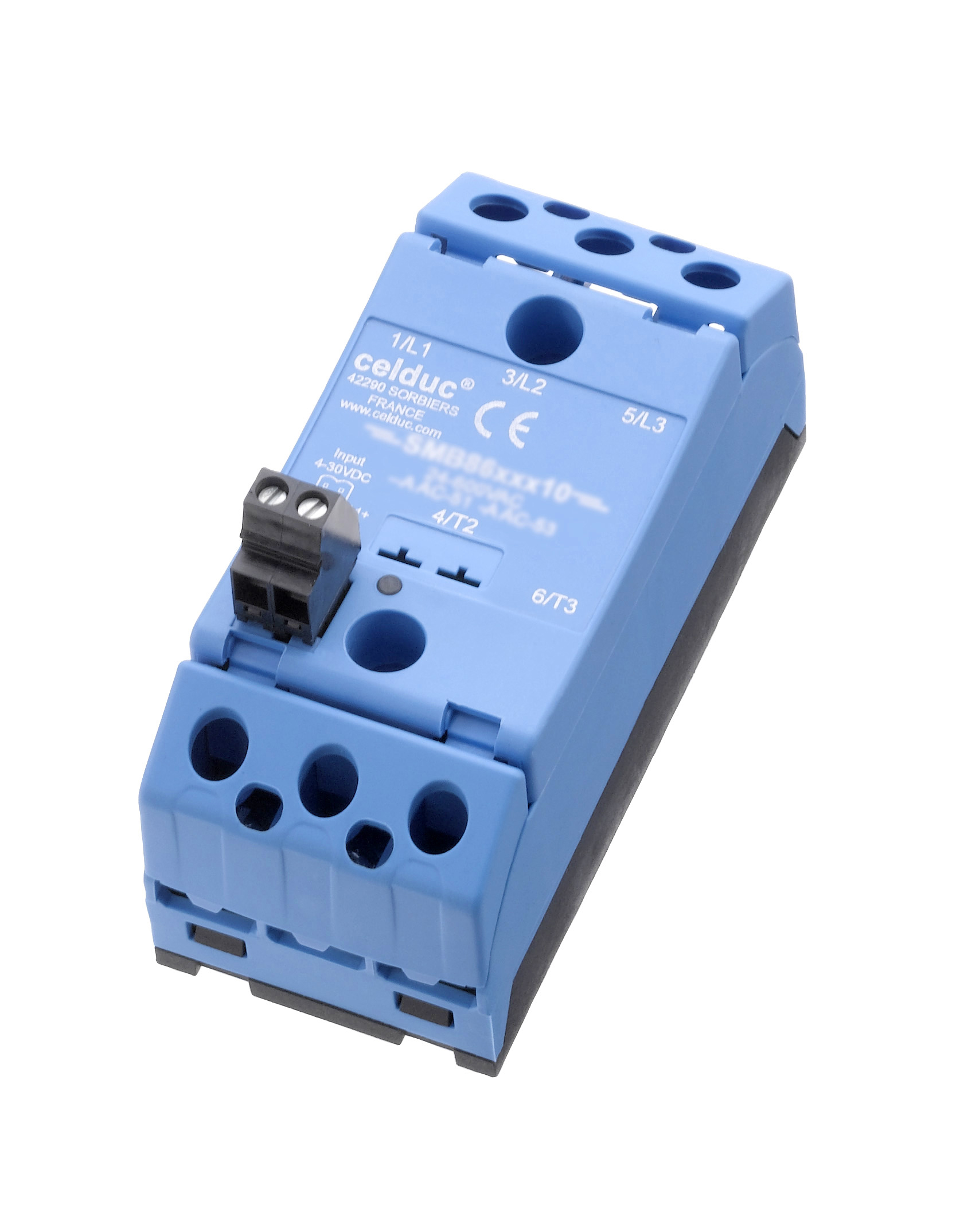

ZC THREE PHASE SSR 2X50A/24-640VAC/CTRL 4-30VDC Configured with screw Terminals and Normally Open Contacts and Screw Housing with 4VDC - 30VDC @ Max . Celduc Part Number SMB8850210

$123.10

Min: 10  Mult: 10

Product Attributes


Click Here

Temperature Range

-40 to +85

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(1.89 x 3.94 x 1.77)

Number of switched phases

2 phase - 1 control

Packaging Type

Carton

Terminals

screw

Switching type relay

ZC

Protection

VDR

Contact

Normally Open

Housing

Screw

Load Voltage Min

24

Load Voltage Max

640

Length-mm

100

Height-mm

48.1

Width-mm

45

Load continuous current (nominal)

30

EAN

3760283306684

Not available at this time.
