SLA03220

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

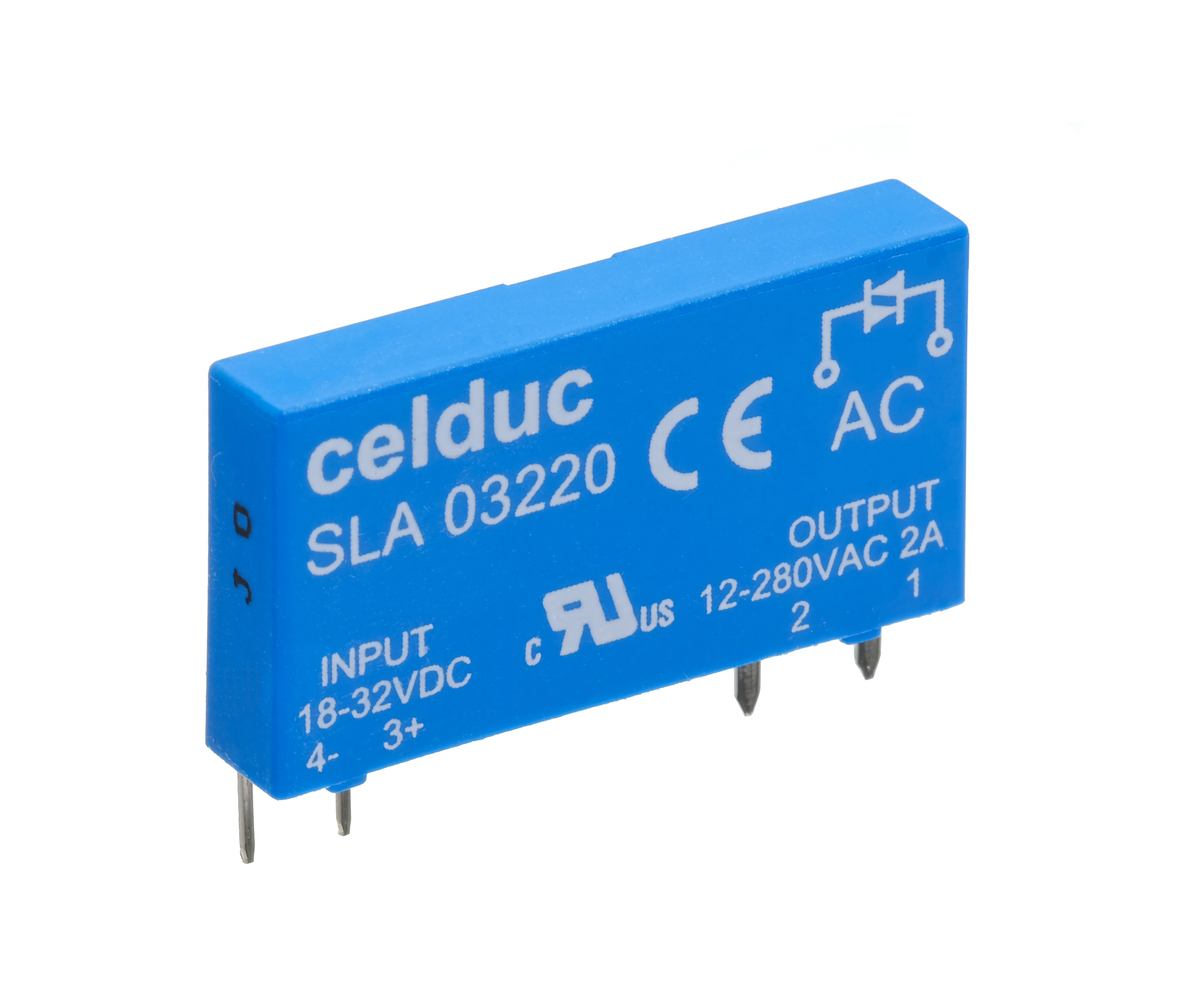

SSR2A/12-280VAC/CTRL18-32VDC Configured with pin Terminals and Normally Open Contacts and PCB Housing with 18VDC - 32VDC @ 10,2mA Max . Celduc Part Number SLA03220

$21.30

Min: 17  Mult: 17

Product Attributes


Click Here

Temperature Range

20 to +80

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(0.59 x 1.1 x 0.2)

Number of switched phases

1 phase

Control voltage (nominal)

24VDC

Packaging Type

Tube

Terminals

pin

Switching type relay

Random

Contact

Normally Open

Housing

PCB

Length-mm

28

Height-mm

15

Width-mm

5

Load continuous current (nominal)

2

EAN

3760283308596
