SKLD11006

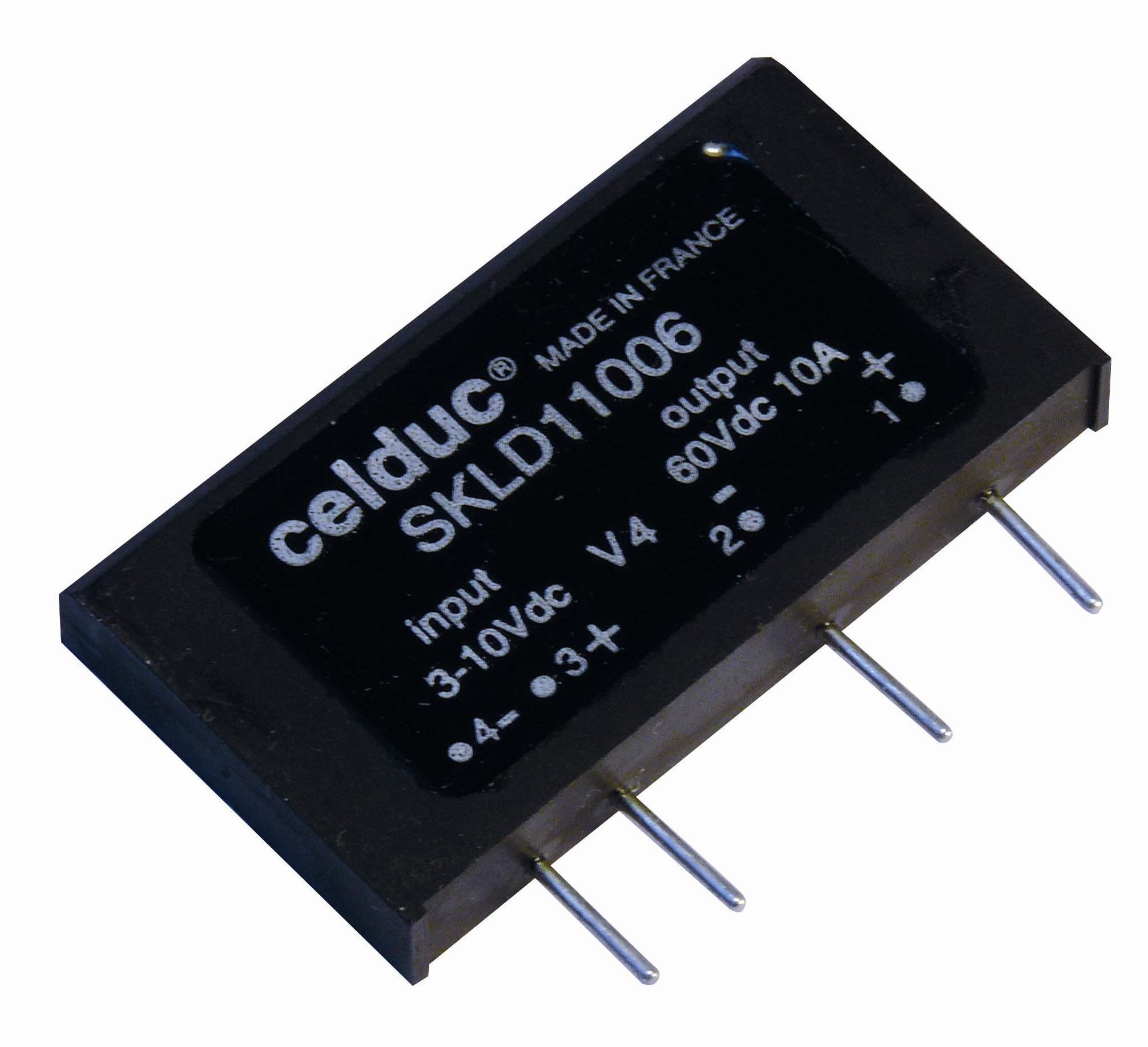

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 10A/36VDC/CTRL 3-10VDC Configured with pin Terminals and Normally Open Contacts and PCB Housing with 3VDC - 10VDC @ 32mA Max . Celduc Part Number SKLD11006

$59.70

Min: 10  Mult: 10

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +80

Overall Dims (HxLxW)

(0.96 x 1.72 x 0.25)

Control voltage (nominal)

5VDC

Packaging Type

Tube

Load Current Max (calibre relais)

10

Protection

Transil

Housing

PCB

Terminals

pin

Contact

Normally Open

Load Voltage Min

7

Load Voltage Max

36

Length-mm

43.6

Height-mm

24.5

Width-mm

6.3

EAN

3760283308039
