SKA20441

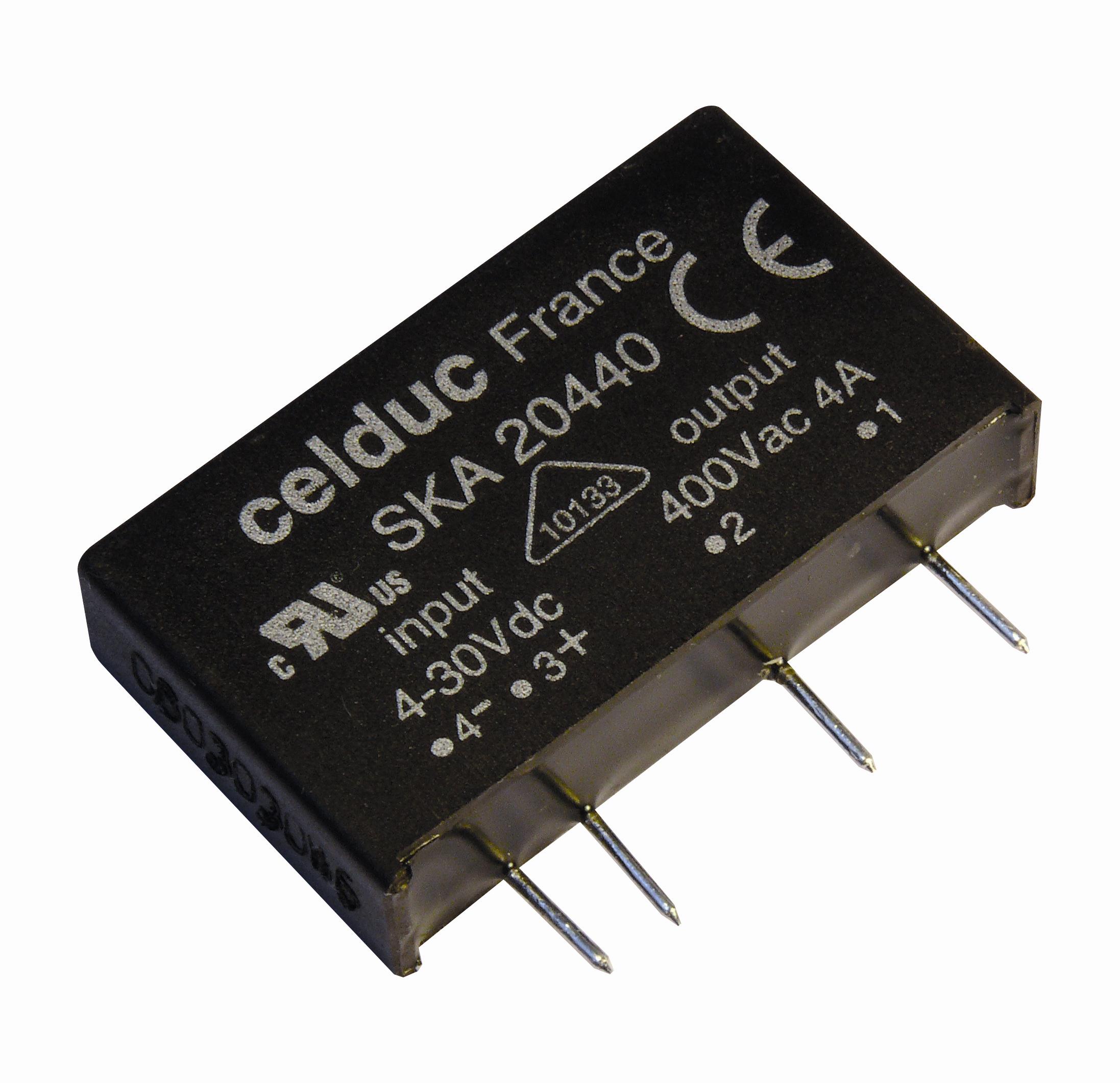

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 5A/440VAC/CTRL 3-30V/RANDOM Configured with pin Terminals and Normally Open Contacts and PCB Housing with 3VDC - 30VDC @ 29mA Max . Celduc Part Number SKA20441

$28.00

Min: 20  Mult: 20

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1 x 1.7 x 0.4)

Packaging Type

Tube

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

Random

Terminals

pin

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

5

Housing

PCB

Load Voltage Min

12

Load Voltage Max

460

Length-mm

43.2

Height-mm

25.4

Width-mm

10.2

Load continuous current (nominal)

4

EAN

3760283308268

Not available at this time.
