SGTR9854310-WF031

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

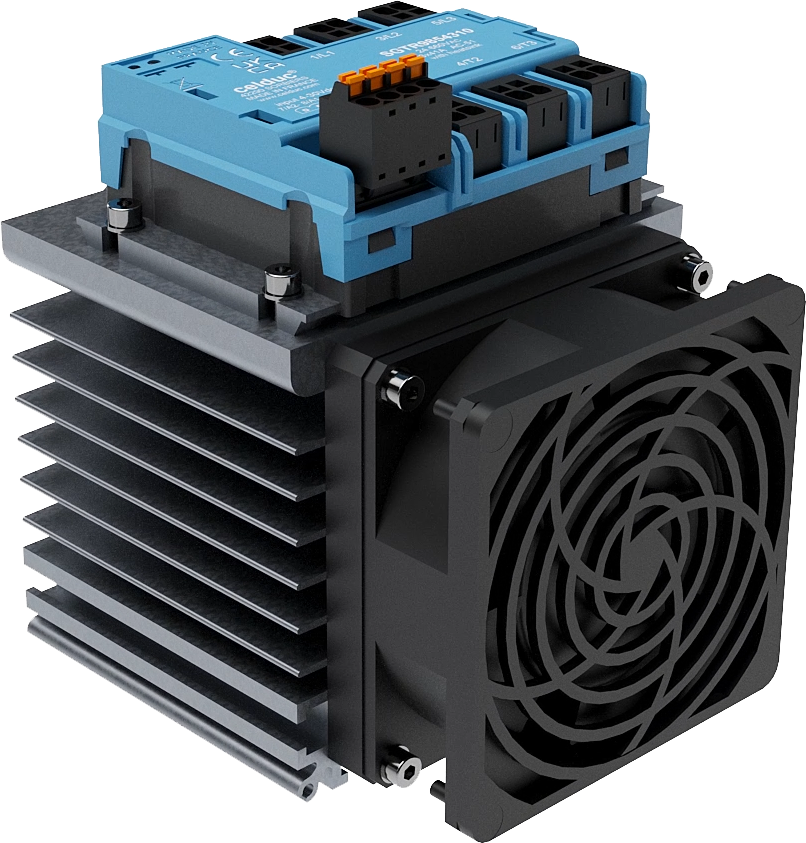

ZC THREE PHASE PUSH IN SSR CONTACTORS 3X41A/24-660VAC/TVS/CTRL 4-30VDC/ICREGUL Configured with pushin Terminals and Normally Open Contacts and DIN Rail Housing with 4VDC - 30VDC @ <25mA Max . Celduc Part Number SGTR9854310-WF031

$422.80

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(6.53 x 3.94 x 5.89)

Packaging Type

Carton

Number of switched phases

3 phase - 1 control

Control voltage (nominal)

4-30 VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

660

Length-mm

100

Height-mm

165.8

Width-mm

149.5

Load continuous current (nominal)

41

EAN

3760283309616

Not available at this time.
