SGTR9854310

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

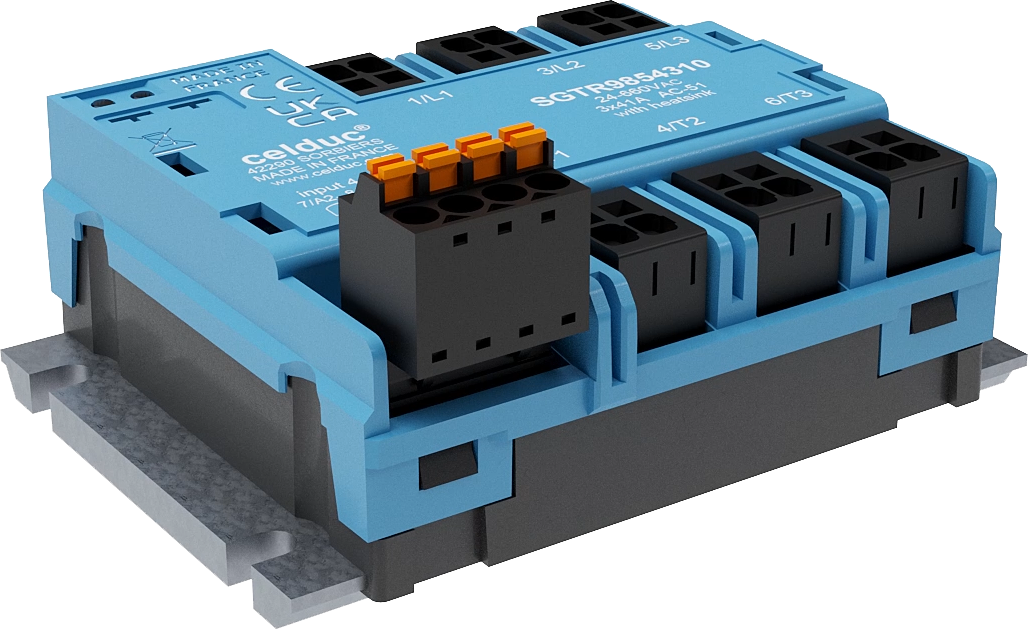

ZC THREE PHASE PUSH IN SSR 3X41A/24-660VAC/TVS/CTRL 4-30VDC/ICREGUL Configured with pushin Terminals and Normally Open Contacts and Screw Housing with 4VDC - 30VDC @ <25mA Max . Celduc Part Number SGTR9854310

$149.90

Min: 16  Mult: 16

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.87 x 3.94 x 3.03)

Packaging Type

Carton

Number of switched phases

3 phase - 1 control

Control voltage (nominal)

4-30 VDC

Switching type relay

ZC

Terminals

pushin

Protection

TVS

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

Screw

Load Voltage Min

24

Load Voltage Max

660

Length-mm

100

Height-mm

47.5

Width-mm

77

Load continuous current (nominal)

41

EAN

3760283309609

Not available at this time.
