SGTA4654

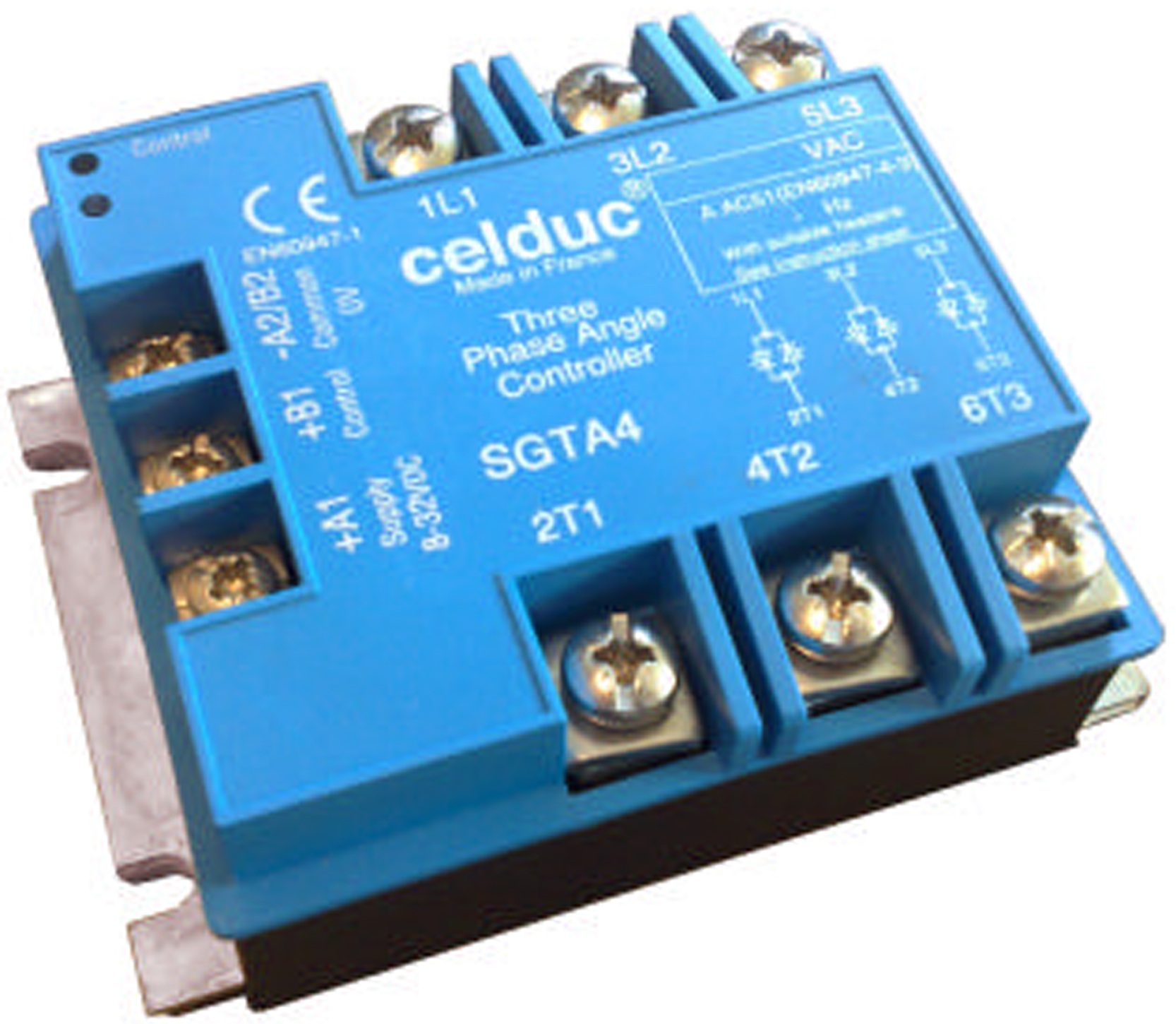

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
THREE PHASE PROPORTIONAL CONTROLLERS 50AC1/300-510VAC/CTRL 4-20MA Configured with screw Terminals and Normally Open Contacts and Screw Housing with @ 20mA Max . Celduc Part Number SGTA4654

$281.10

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.81 x 3.94 x 2.96)

Packaging Type

Carton

Number of switched phases

3 phase - 1 control

Control voltage (nominal)

Proportional Analog Voltage

Switching type relay

phase angle controller

Load Current Max (calibre relais)

50

Housing

Screw

Terminals

screw

Contact

Normally Open

Load Voltage Min

300

Load Voltage Max

510

Length-mm

100

Height-mm

46

Width-mm

75.15

Load continuous current (nominal)

50

EAN

3760283305748

Not available at this time.
