SGT9834300

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

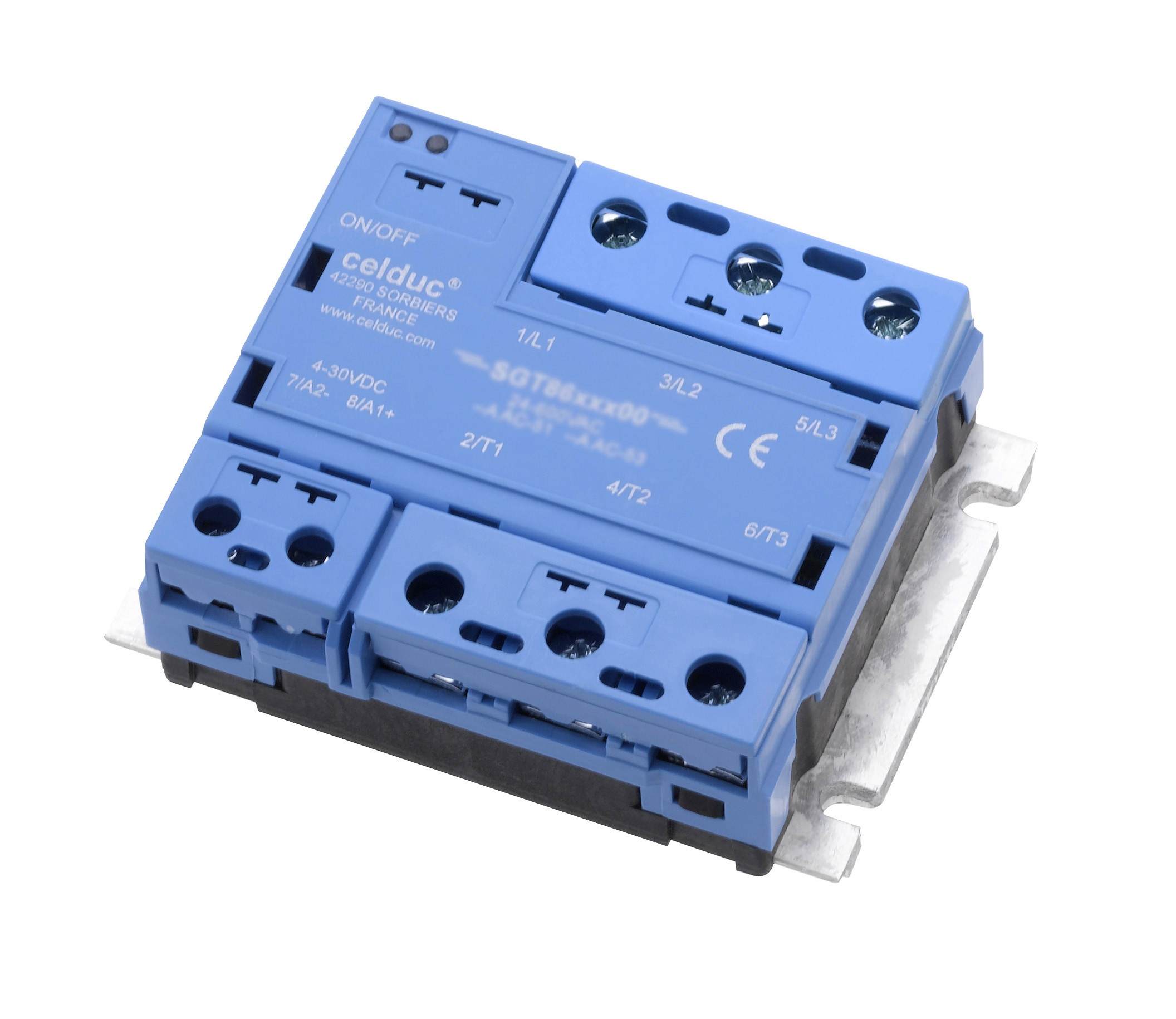

ZC THREE PHASE SSR 3X35A/24-660VAC/CTRL 4-30VDC Configured with screw Terminals and Normally Open Contacts and Screw Housing with 4VDC - 30VDC @ 25mA Max . Celduc Part Number SGT9834300

$133.10

Min: 16  Mult: 16

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +85

Overall Dims (HxLxW)

(1.37 x 3.94 x 3.01)

Packaging Type

Carton

Number of switched phases

3 phase - 1 control

Terminals

screw

Switching type relay

ZC

Protection

TVS on gate

Contact

Normally Open

Load Current Max (calibre relais)

35

Housing

Screw

Load Voltage Min

24

Load Voltage Max

660

Length-mm

100

Height-mm

34.7

Width-mm

76.5

Load continuous current (nominal)

30

EAN

3760283306745
