SGT9654302

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

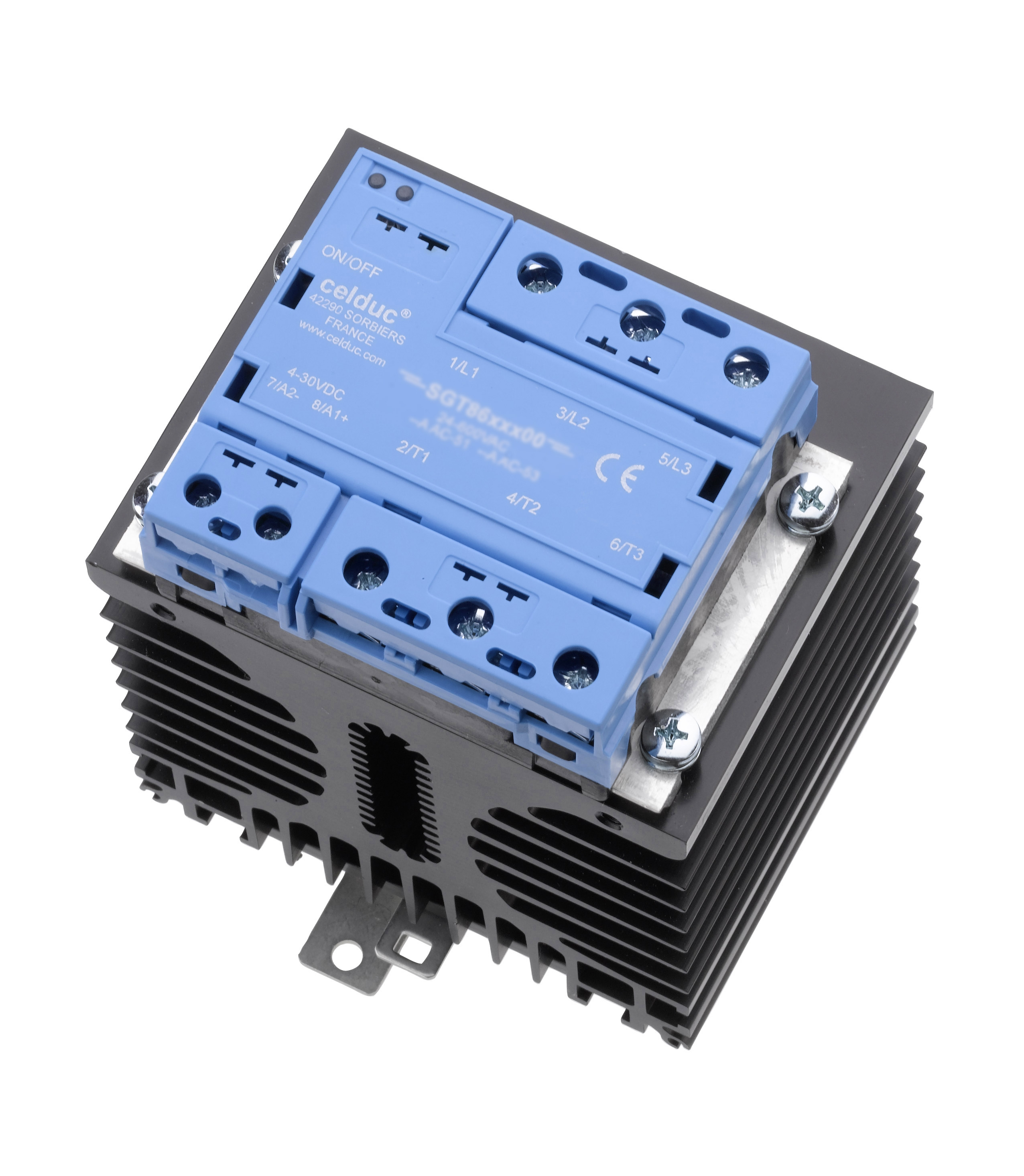

ZC THREE PHASE SSR CONTACTORS 3X24A/24-600VAC/CTRL 4-30VDC Configured with screw Terminals and Normally Open Contacts and DIN Rail Housing. Celduc Part Number SGT9654302

$168.30

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(4.15 x 3.86 x 3.54)

Packaging Type

Carton

Number of switched phases

3 phase - 1 control

Terminals

screw

Switching type relay

ZC

Protection

TVS on gate

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

600

Length-mm

98

Height-mm

105.5

Width-mm

89.8

Load continuous current (nominal)

27

EAN

3760283306752

Not available at this time.
