SGT8658500

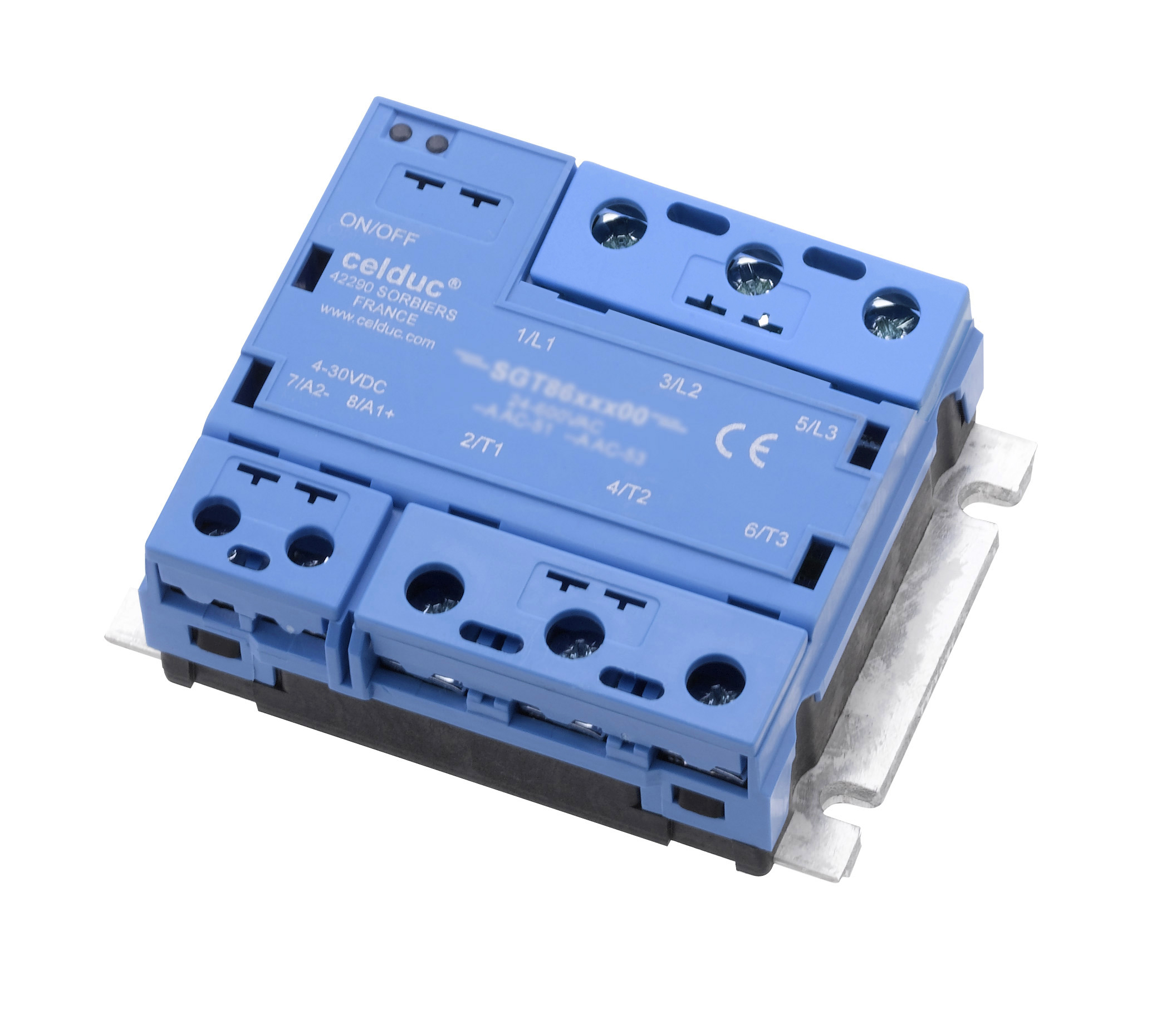

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ZC THREE PHASE SSR 3X50A/24-520VAC/CTRL 24-255VAC/DC Configured with screw Terminals and Normally Open Contacts and Screw Housing with 24VDC - 255VDC @ Max . Celduc Part Number SGT8658500

$155.40

Min: 16  Mult: 16

Product Attributes


Click Here

Temperature Range

-40 to +85

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(1.37 x 3.94 x 3.01)

Number of switched phases

3 phase - 1 control

Packaging Type

Carton

Terminals

screw

Switching type relay

ZC

Protection

RC - VDR

Contact

Normally Open

Housing

Screw

Load Voltage Min

24

Load Voltage Max

520

Length-mm

100

Height-mm

34.7

Width-mm

76.5

Load continuous current (nominal)

42

EAN

3760283306875

Not available at this time.
