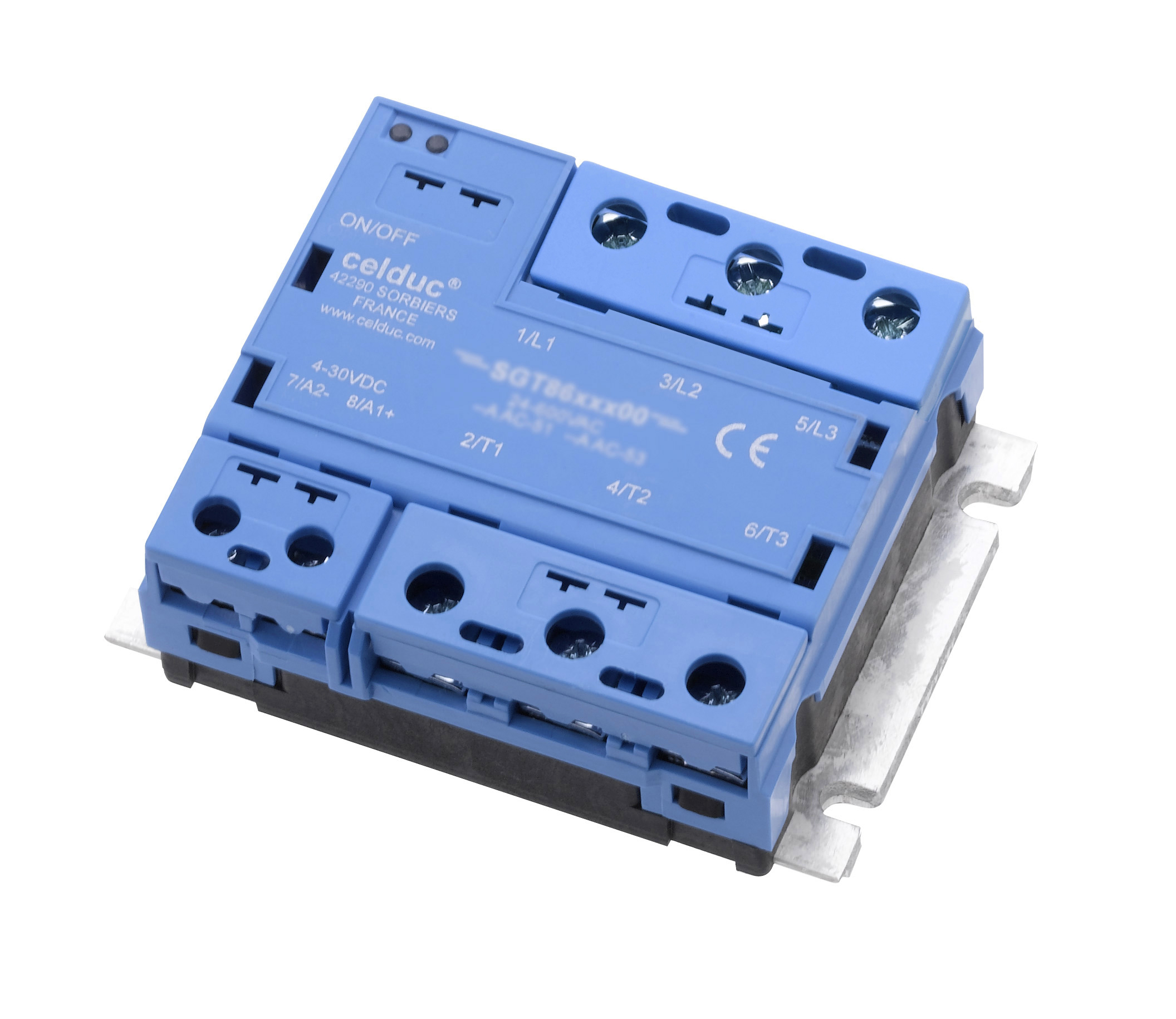

SGB8850200

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ZC THREE PHASE SSR 2X50A/24-640VAC/CTRL 4-30VDC Configured with screw Terminals and Normally Open Contacts and Screw Housing with 4VDC - 30VDC @ Max . Celduc Part Number SGB8850200

$104.30

Min: 16  Mult: 16

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +85

Overall Dims (HxLxW)

(1.56 x 3.94 x 2.89)

Packaging Type

Carton

Number of switched phases

2 phase - 1 control

Terminals

screw

Switching type relay

ZC

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

50

Housing

Screw

Load Voltage Min

24

Load Voltage Max

640

Length-mm

100

Height-mm

39.5

Width-mm

73.5

Load continuous current (nominal)

50

EAN

3760283306936
