SF542310

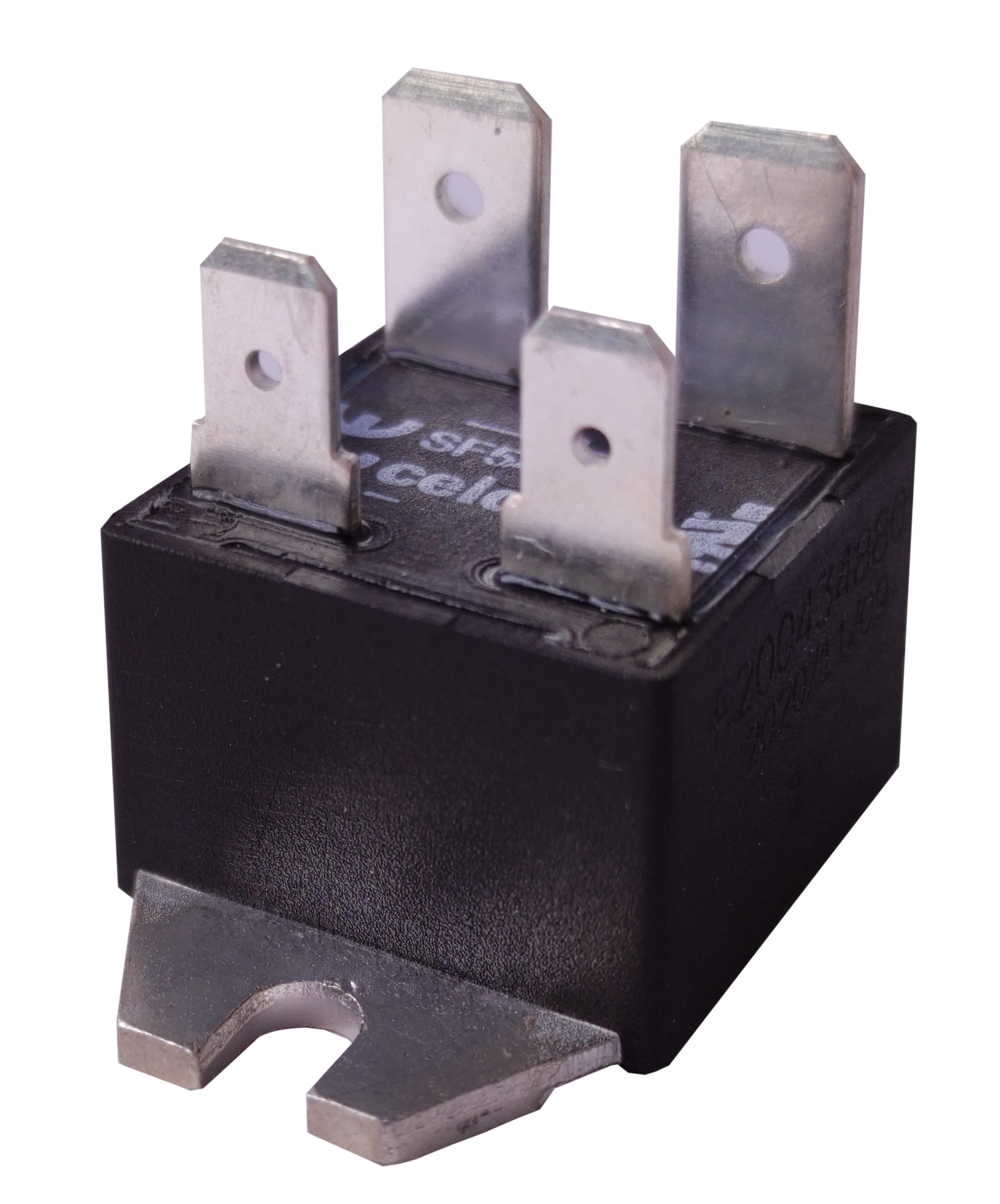

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 12A/230VAC/CTRL 4-30V Configured with faston Terminals and Normally Open Contacts and Screw Housing with 4VDC - 30VDC @ 30mA Max . Celduc Part Number SF542310

$36.20

Min: 70  Mult: 70

Product Attributes


Click Here

Temperature Range

-40 to +100

Manufacturers direct Page

Click Here

Overall Dims (HxLxW)

(0.83 x 0.83 x 1.4)

Number of switched phases

1 phase

Packaging Type

Carton

Terminals

faston

Switching type relay

ZC

Contact

Normally Open

Housing

Screw

Length-mm

21

Height-mm

21

Width-mm

35.5

Load continuous current (nominal)

10

EAN

3760283308350
