SDI0501700

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

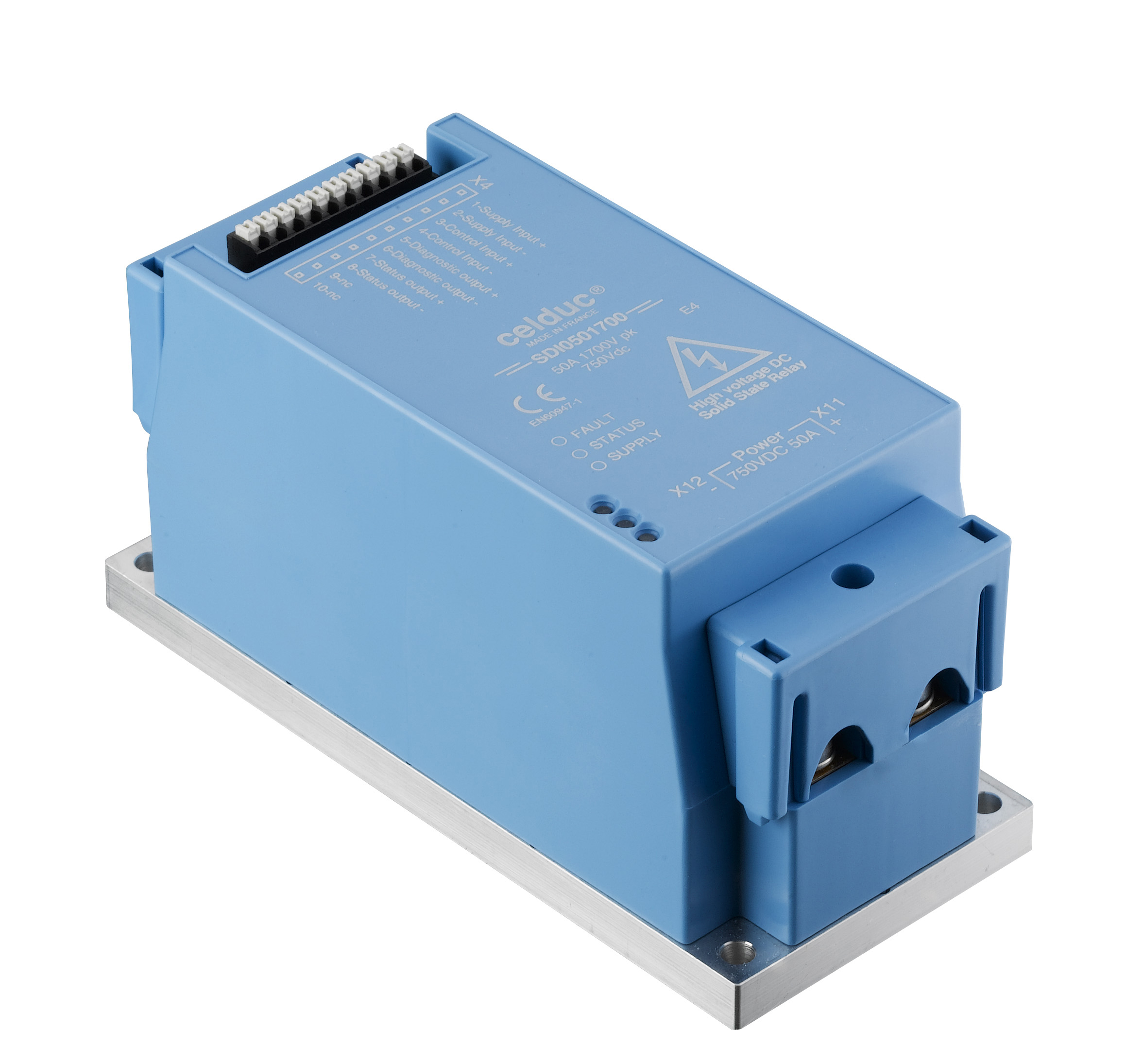

SSR 50A - 1700VDC - CTRL 24-48VDC Configured with screw Terminals and Normally Open Contacts and Screw Housing with 14,4VDC - 60VDC @ <5mA Max . Celduc Part Number SDI0501700

$1,270.00

Min: 1  Mult: 1

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +70

Overall Dims (HxLxW)

(3.27 x 6.14 x 2.68)

Control voltage (nominal)

24-48VDC

Packaging Type

Carton

Load Current Max (calibre relais)

50

Protection

TVS on gate

Housing

Screw

Terminals

screw

Contact

Normally Open

Load Voltage Min

12

Load Voltage Max

940

Length-mm

156

Height-mm

83

Width-mm

68

Load continuous current (nominal)

50

EAN

3760283305571

Not available at this time.
