SCQ842060

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

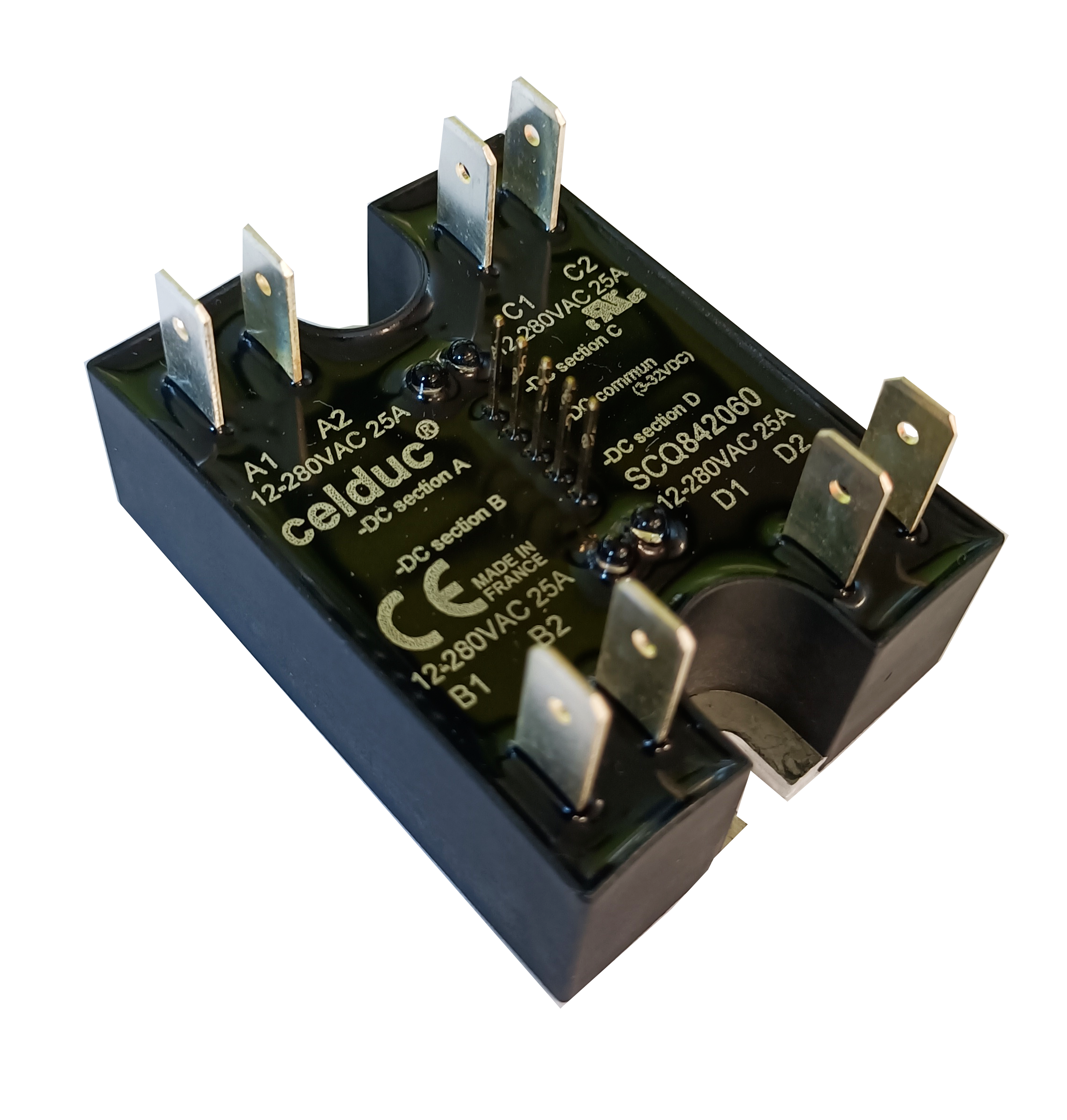

SSR 4X25A/230VAC/CTRL 3-32VDC/LED Configured with faston Terminals and Normally Open Contacts and Hockey Puck Housing with 3VDC - 32VDC @ Max . Celduc Part Number SCQ842060

$116.10

Min: 19  Mult: 19

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-40 to +100

Overall Dims (HxLxW)

(1.3 x 2.28 x 1.75)

Packaging Type

Carton

Number of switched phases

4 phase - 4 controls

Terminals

faston

Switching type relay

ZC

Contact

Normally Open

Housing

Hockey Puck

Load Voltage Min

12

Load Voltage Max

280

Length-mm

58

Height-mm

33

Width-mm

44.5

Load continuous current (nominal)

25

EAN

3760283307292
