SAM965360

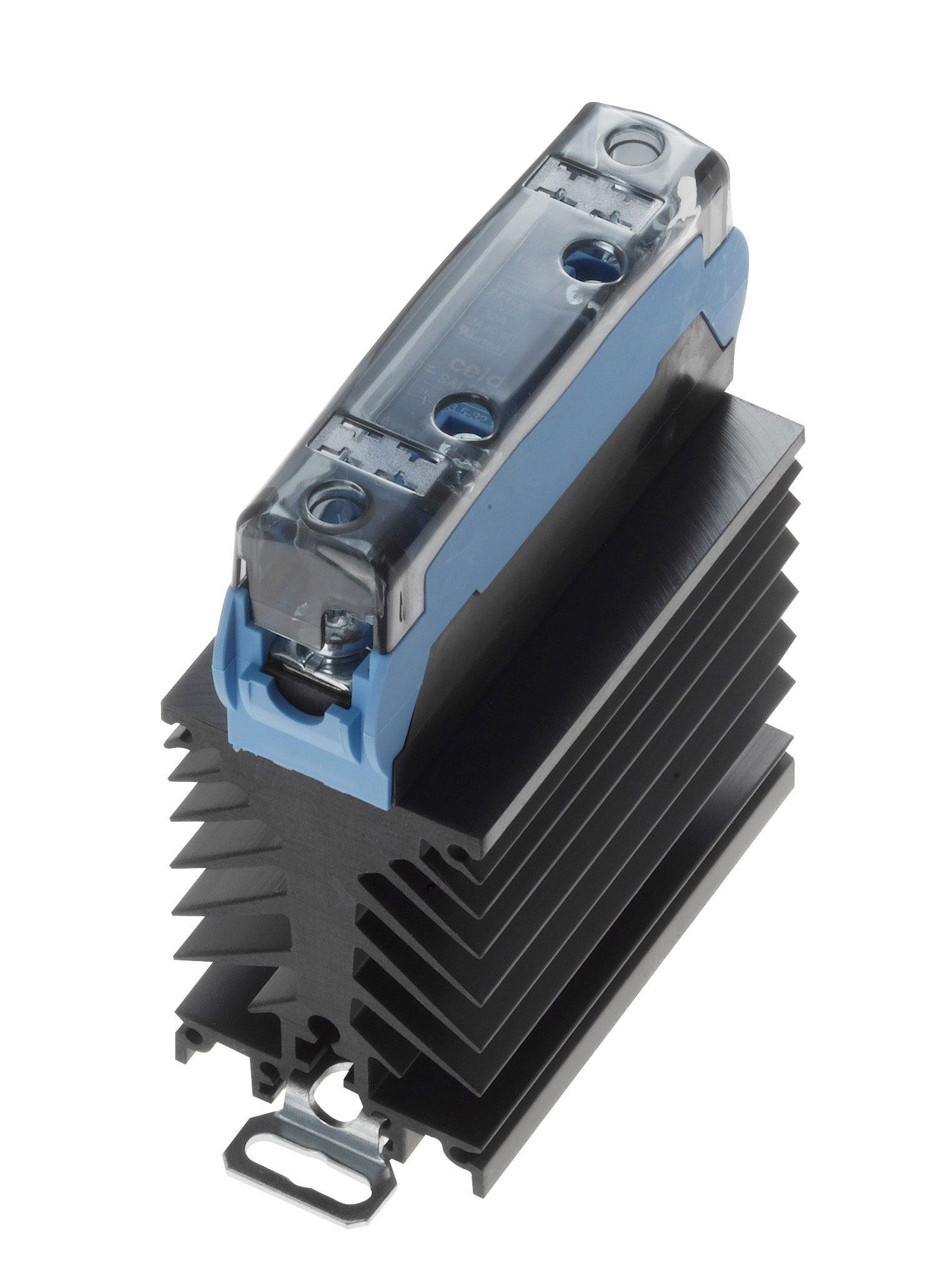

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 45A/24-600VAC/INPUT 6-32VDC/LED Configured with screw Terminals and Normally Open Contacts and DIN Rail Housing with 6VDC - 32VDC @ <10mA Max . Celduc Part Number SAM965360

$70.80

Min: 20  Mult: 20

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(4.41 x 3.54 x 0.89)

Control voltage (nominal)

12-24VDC

Packaging Type

Carton

Number of switched phases

1 phase

Terminals

screw

Switching type relay

ZC

Contact

Normally Open

Load Current Max (calibre relais)

40

Housing

DIN Rail

Load Voltage Min

24

Load Voltage Max

600

Length-mm

90

Height-mm

112

Width-mm

22.5

EAN

3760283307520

Not available at this time.
