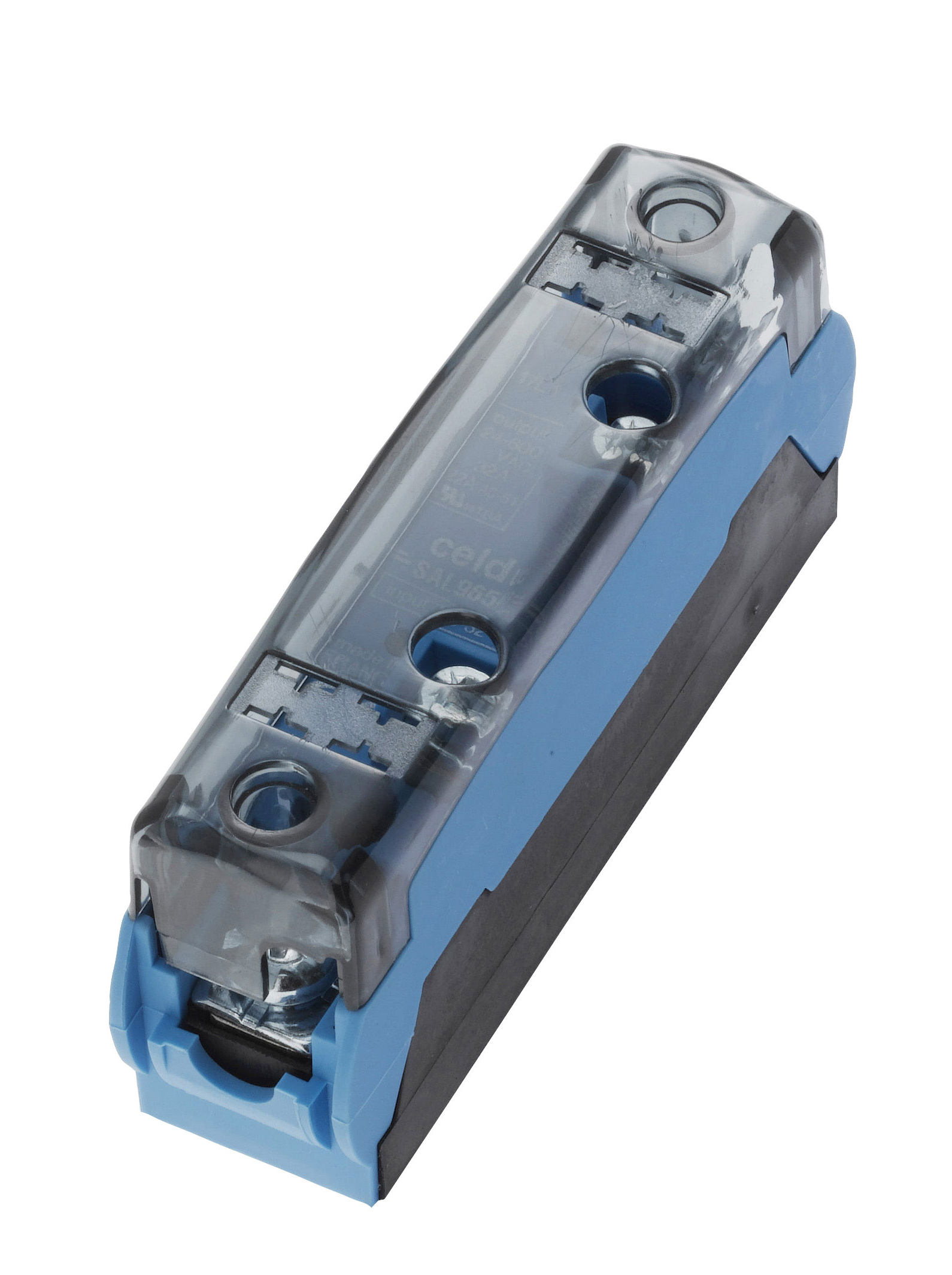

SA842070

Celduc | Solid State Relay
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SSR 25A/12-275VAC/VDR/INPUT 3-32VDC/LED Configured with screw Terminals and Normally Open Contacts and Screw Housing with 3VDC - 32VDC @ <13mA Max . Celduc Part Number SA842070

$35.70

Min: 36  Mult: 36

Product Attributes


Click Here

Manufacturers direct Page

Click Here

Temperature Range

-55 to +100

Overall Dims (HxLxW)

(1.65 x 3.54 x 0.89)

Packaging Type

Carton

Number of switched phases

1 phase

Control voltage (nominal)

5-12-24VDC

Switching type relay

ZC

Terminals

screw

Protection

VDR

Contact

Normally Open

Load Current Max (calibre relais)

25

Housing

Screw

Load Voltage Min

12

Load Voltage Max

275

Length-mm

90

Height-mm

42

Width-mm

22.5

Load continuous current (nominal)

25

EAN

3760283307827
