PN-1344-C

BUD | NEMA Poly. Clear Cover | Enclosures
green-check-icon Total Stock: 6
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

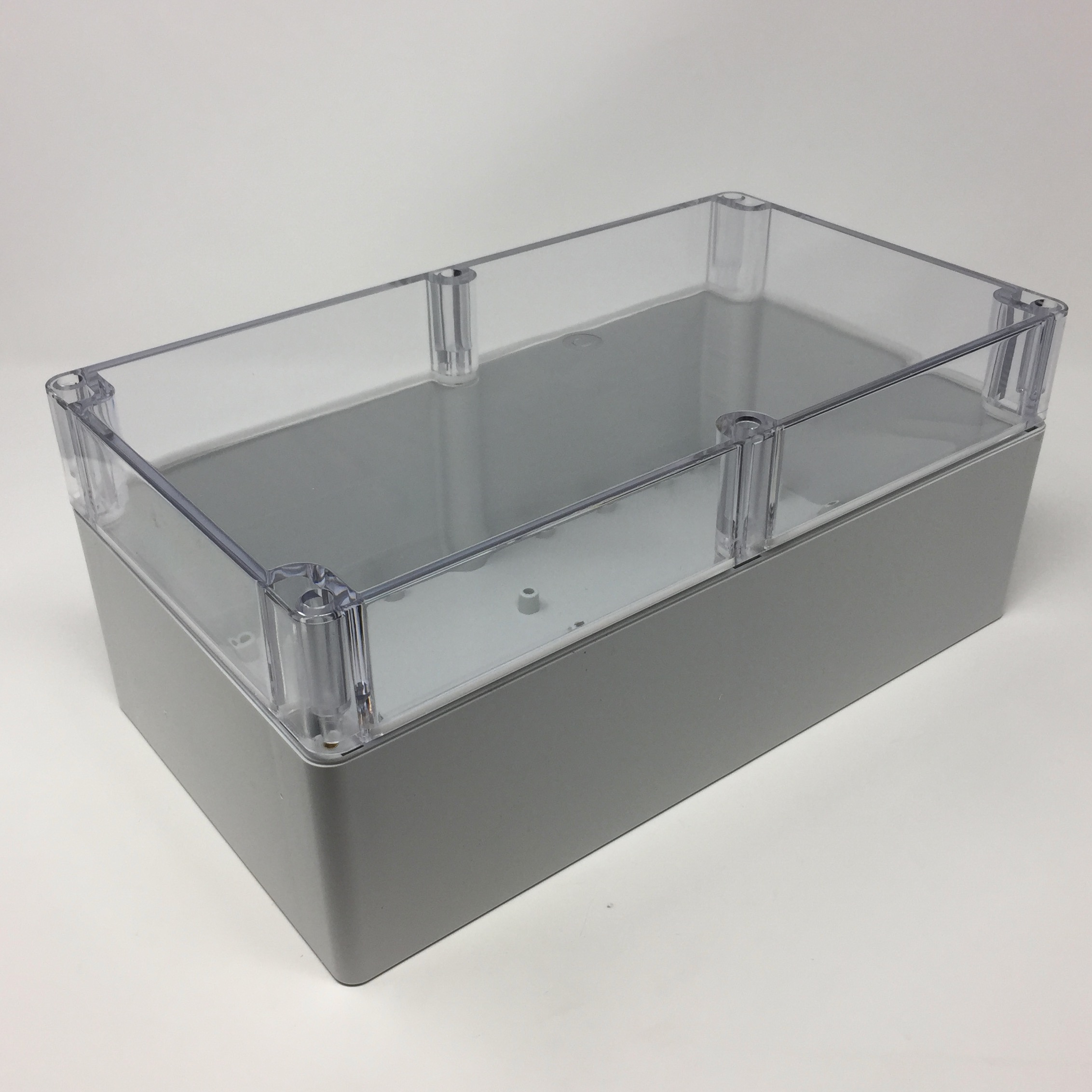

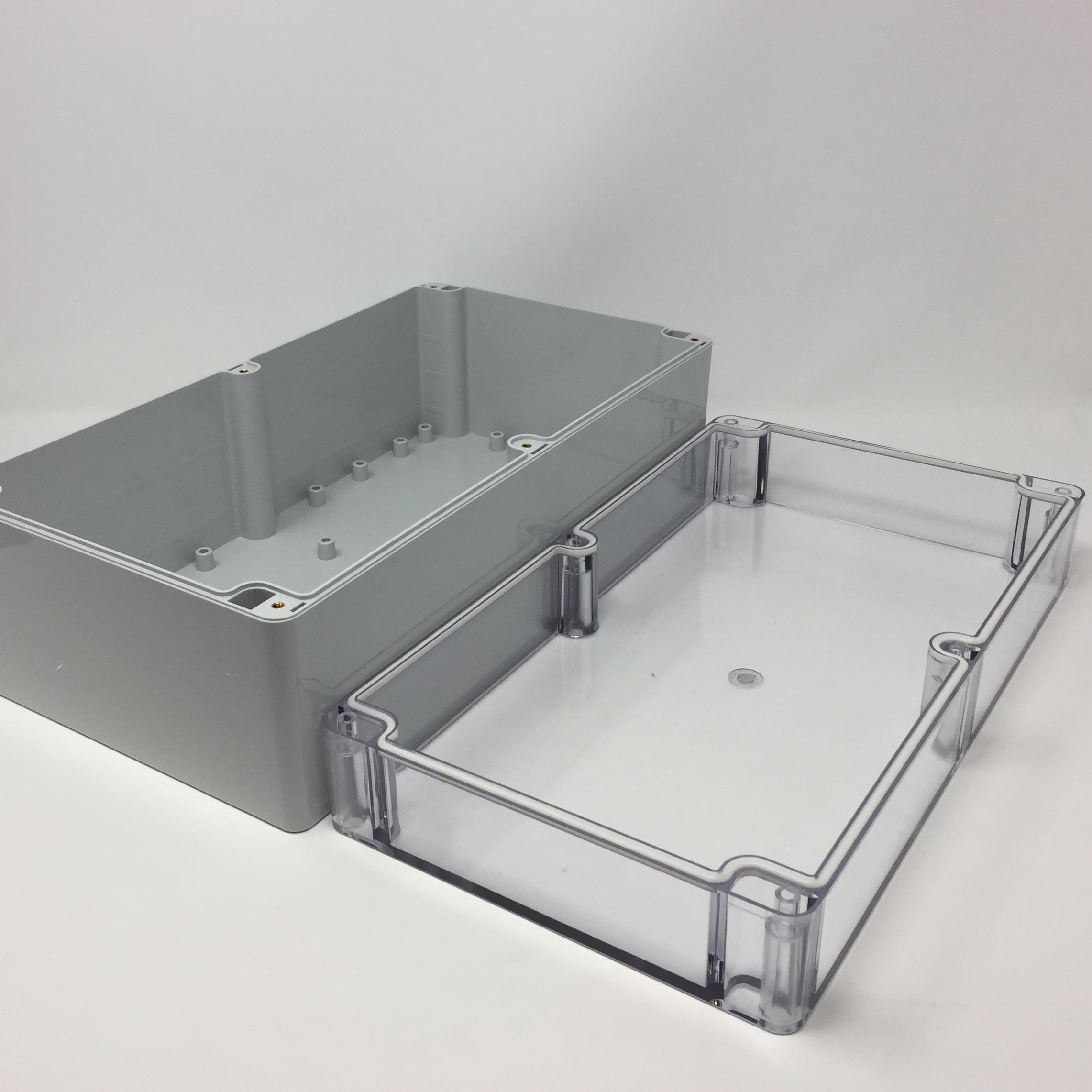

BUD NEMA Polycarbonate 13.85 x 7.56 x 5.63 Inch Internal box with Light Grey body and clear polycarbonate cover and No Mounting Bracket

$71.70

Min: 1  Mult: 1

Product Attributes

UPC

666020026996

Color

Light Gray & Clear Cover

Material

polycarbonate

Internal Panel PN

PNX-91444

Overall Dim LxWxH

14.17 x 7.87 x 5.91 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

5.91 x 7.87 x 14.17

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

5.91 (In)

External Length

14.17 (In)

External Height (Body Only)

3.94 (In)

External Width

7.87 (In)

Internal Width

7.56 (In)

Internal Length

13.85 (In)

Internal Depth W/Lid

5.63 (In)

Internal Depth (Body only)

3.62 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

49.0 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

13.85 x 7.56 x 5.63 Inch Internal box

Style

Light Grey body and clear polycarbonate cover

Mounting Bracket

No Mounting Bracket

Not available at this time.
