PN-1340-C

BUD | NEMA Poly. Clear Cover | Enclosures
green-check-icon Total Stock: 10
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

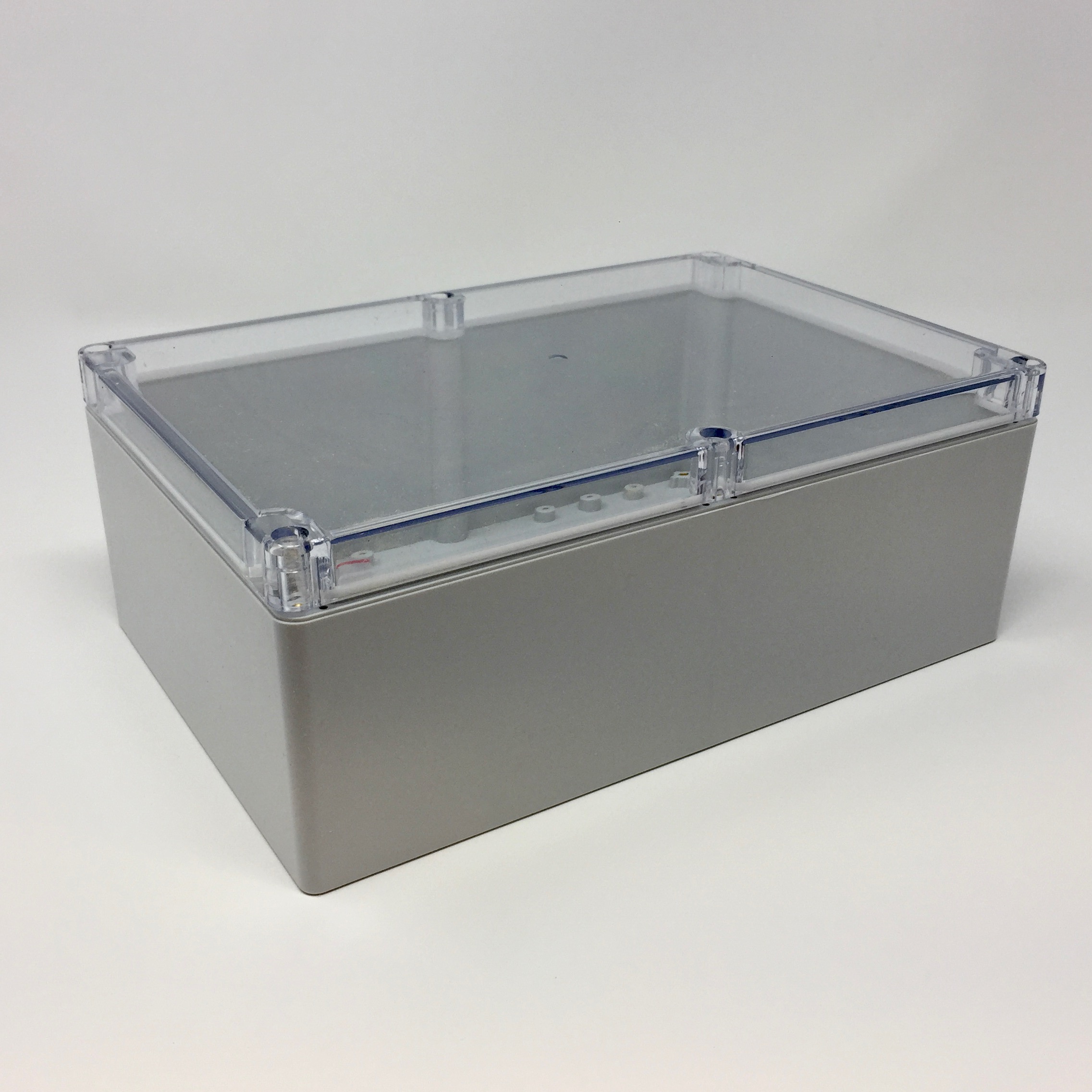

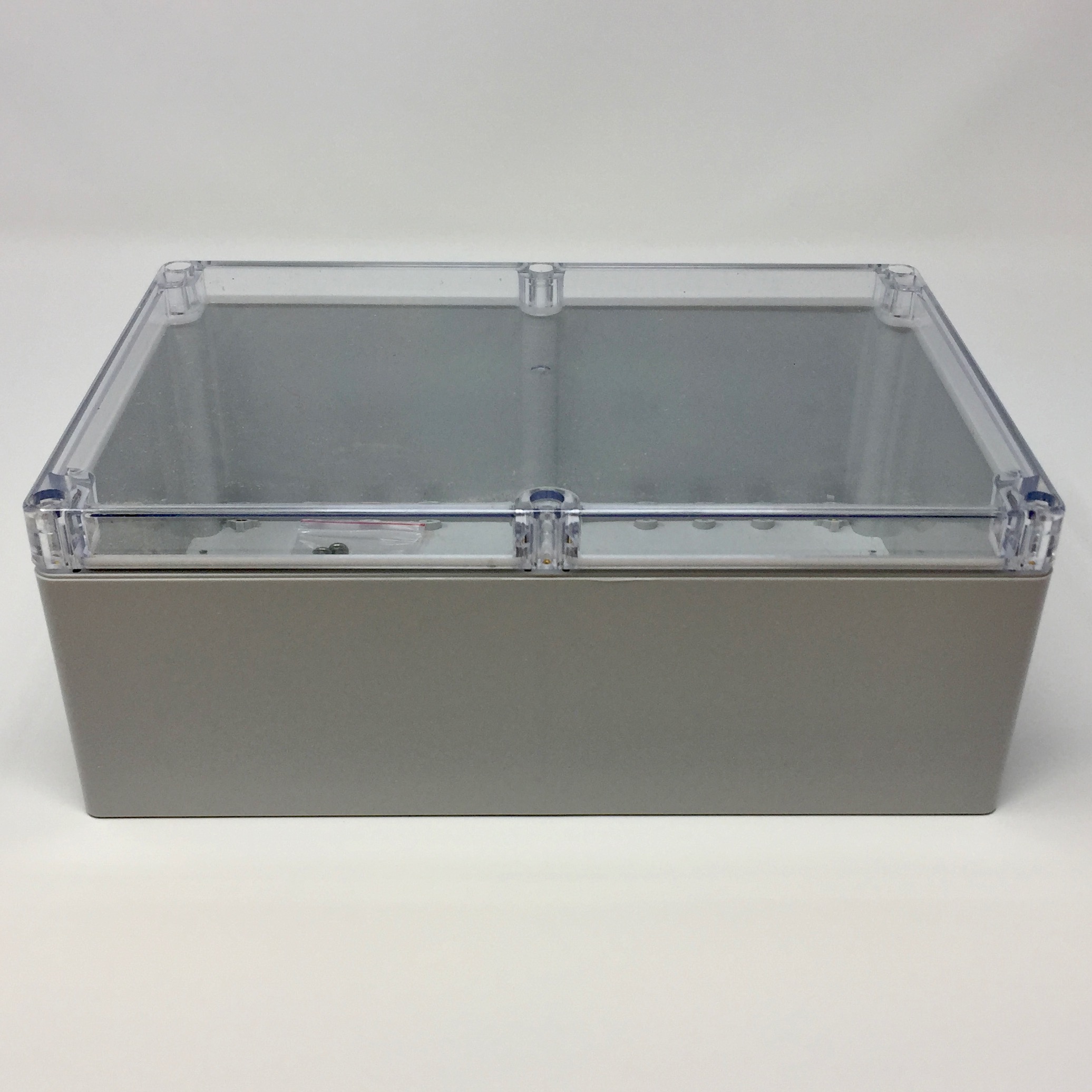

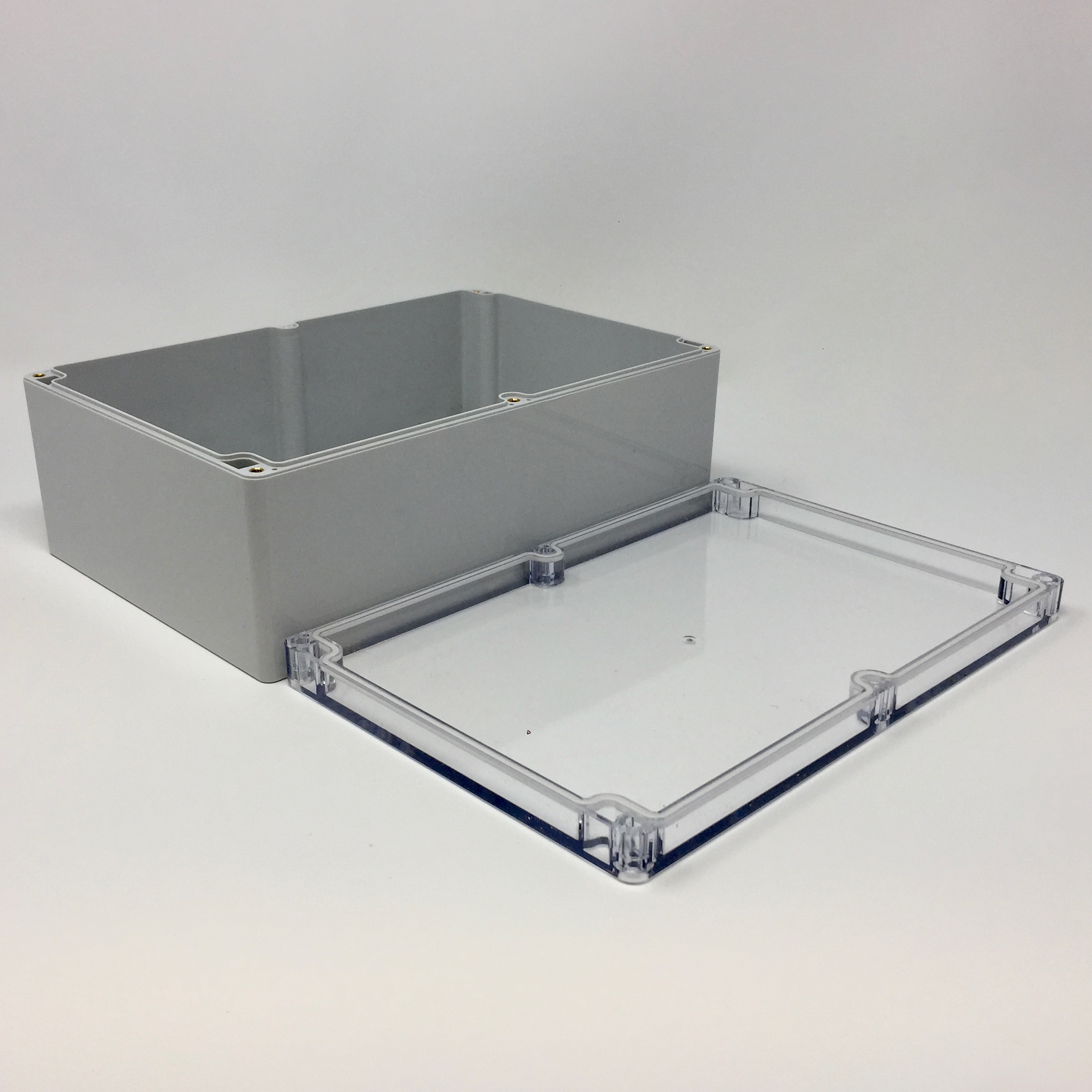

BUD NEMA Polycarbonate 9.17 x 6.02 x 3.26 Inch Internal box with Light Grey body and clear polycarbonate cover and No Mounting Bracket

$23.10

Min: 1  Mult: 1

Product Attributes

UPC

666020026965

Color

Light Gray & Clear Cover

Material

polycarbonate

Internal Panel PN

PNX-91440

Overall Dim LxWxH

9.45 x 6.30 x 3.54 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

3.54 x 6.3 x 9.45

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

3.54 (In)

External Length

9.45 (In)

External Height (Body Only)

3.01 (In)

External Width

6.30 (In)

Internal Width

6.02 (In)

Internal Length

9.17 (In)

Internal Depth W/Lid

3.26 (In)

Internal Depth (Body only)

2.81 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

22.0 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

9.17 x 6.02 x 3.26 Inch Internal box

Style

Light Grey body and clear polycarbonate cover

Mounting Bracket

No Mounting Bracket
